ASCON TECNOLOGIC #Italy
5 ปีที่ผ่านมา
ASCON TECNOLOGIC
Controllers / Mini-programmers
with wattmeter function and independent timer
Made in Italy
TAP Part Engineering Co., Ltd.Company in Thailand
Contact us: tap.part@engineer.com
Mobile: 091-4844332
ASCON K31
ASCON K38
ASCON K38-HIR----E-----
ASCON TRH20 Humidity

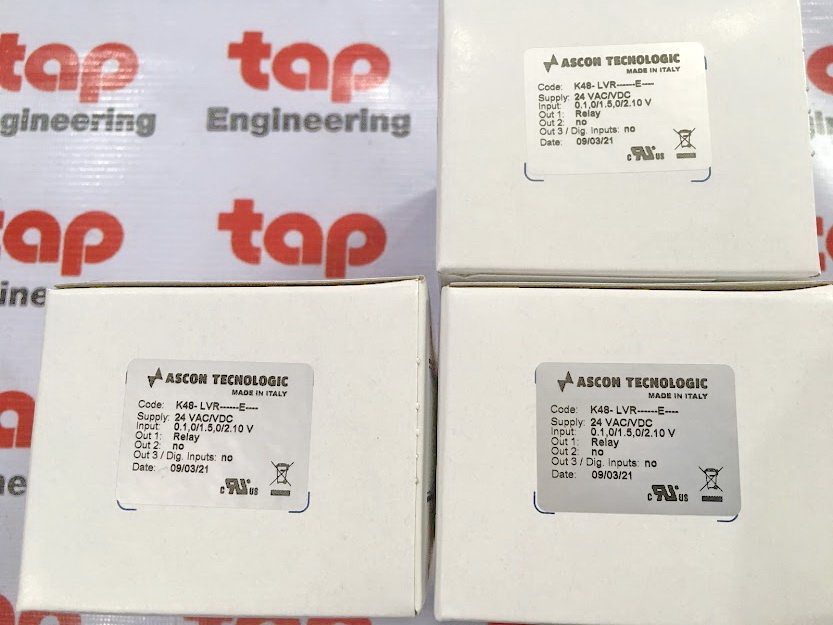

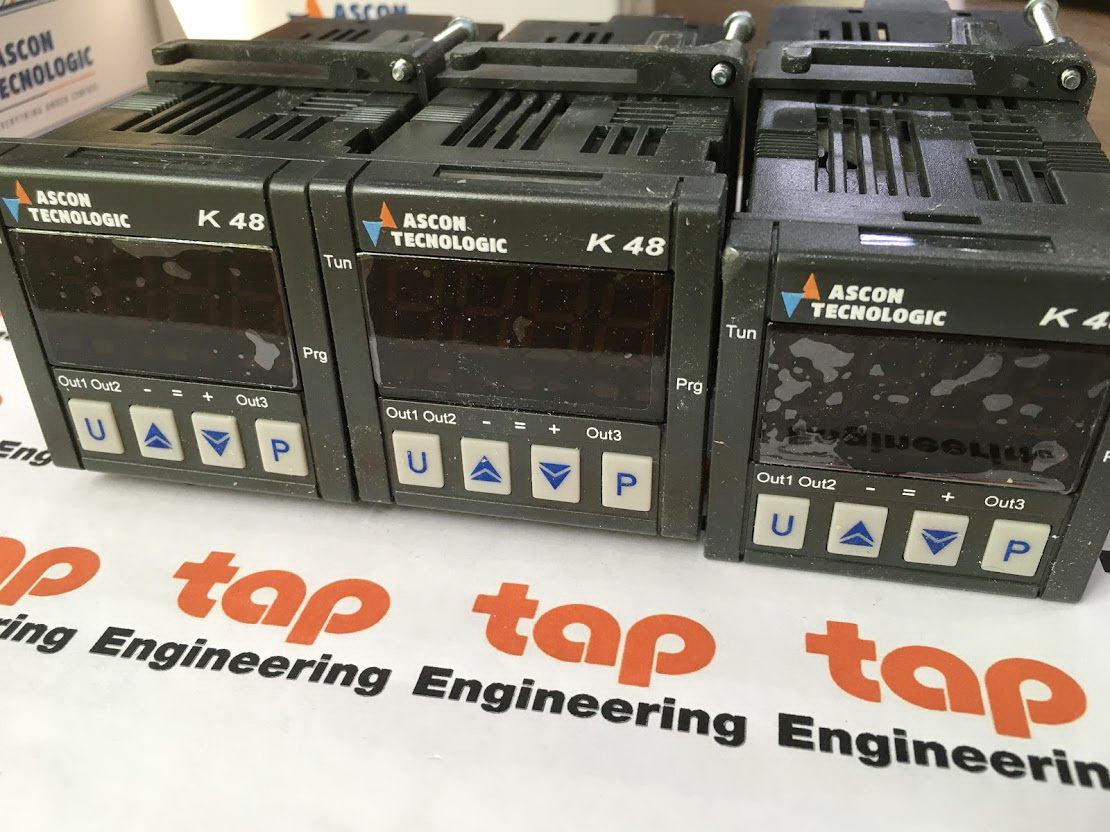

ASCON K48

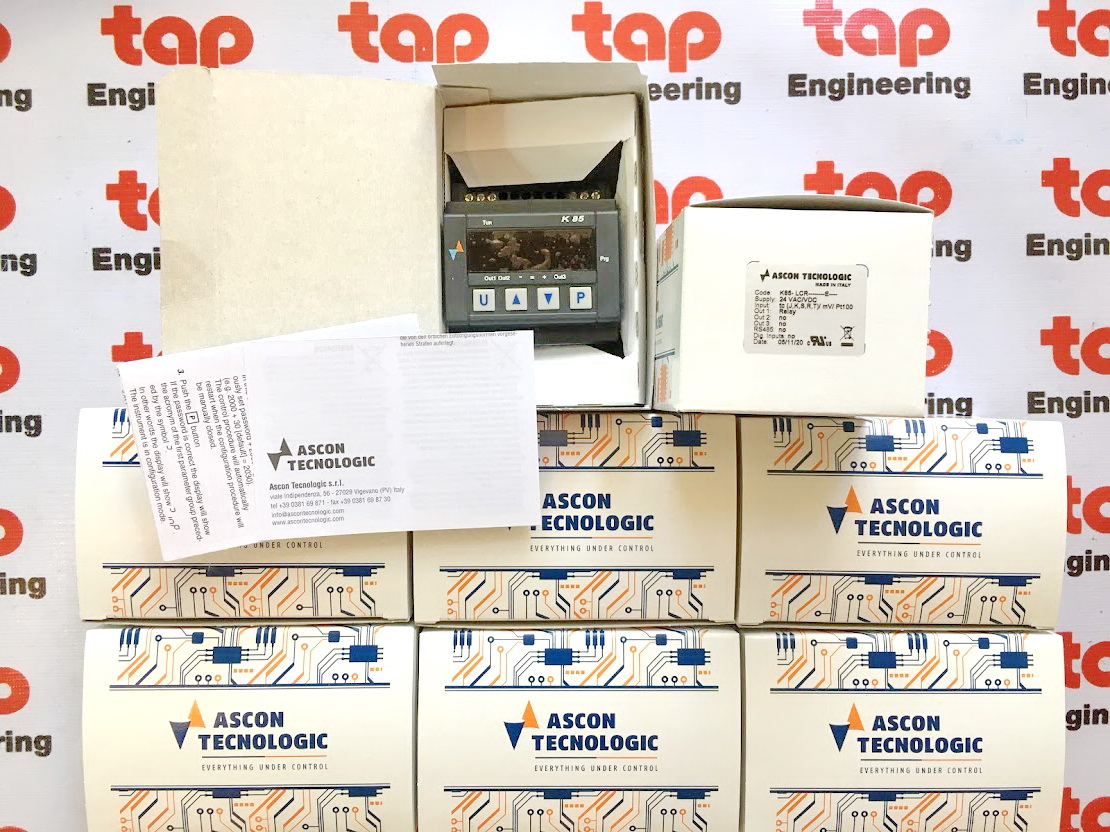

ASCON K85

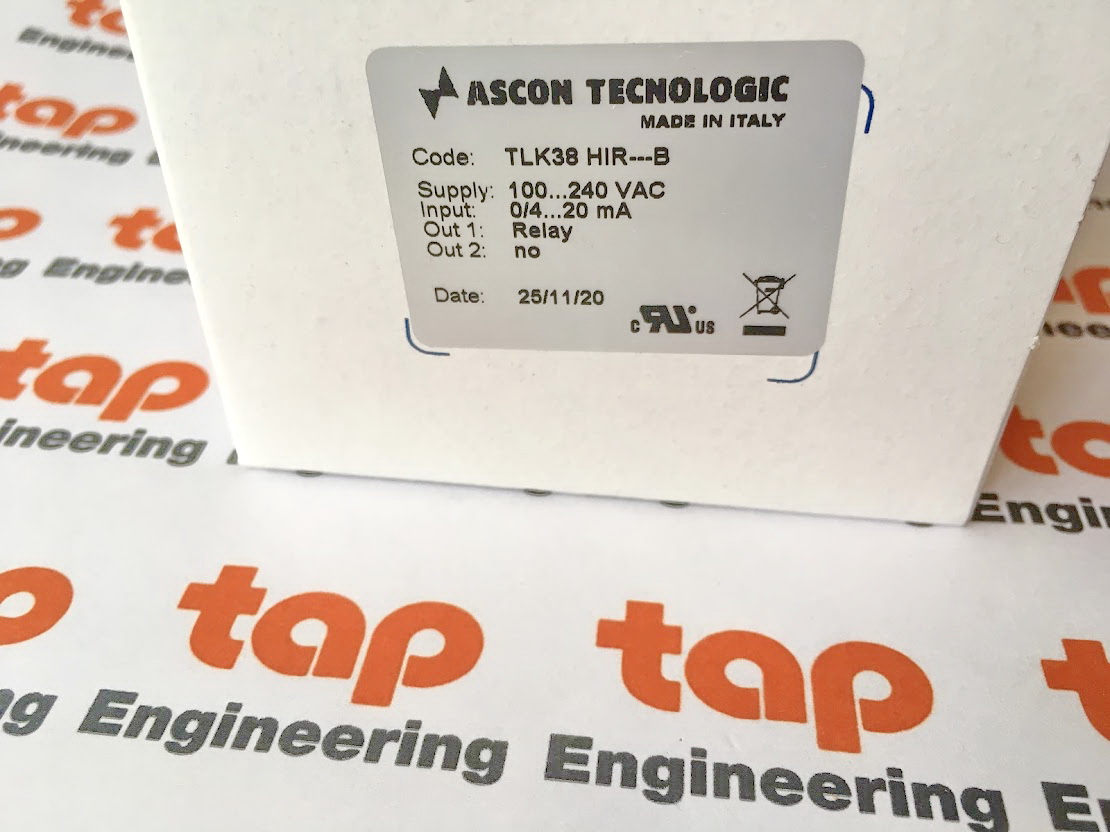

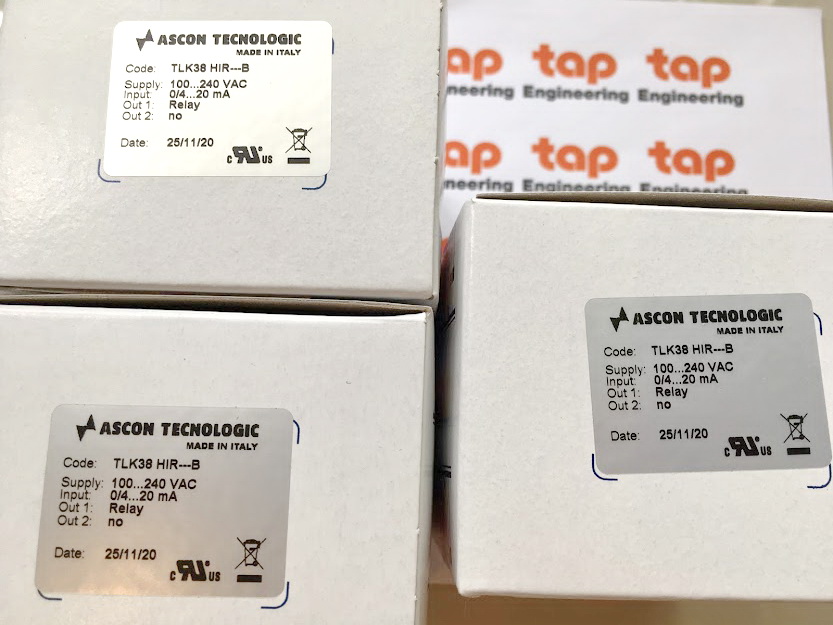

ASCON TLK38 HIR---B
ASCON M1-3000-0000
ASCON M1-3007-0000
ASCON X3
ASCON Z31AHS-----E----

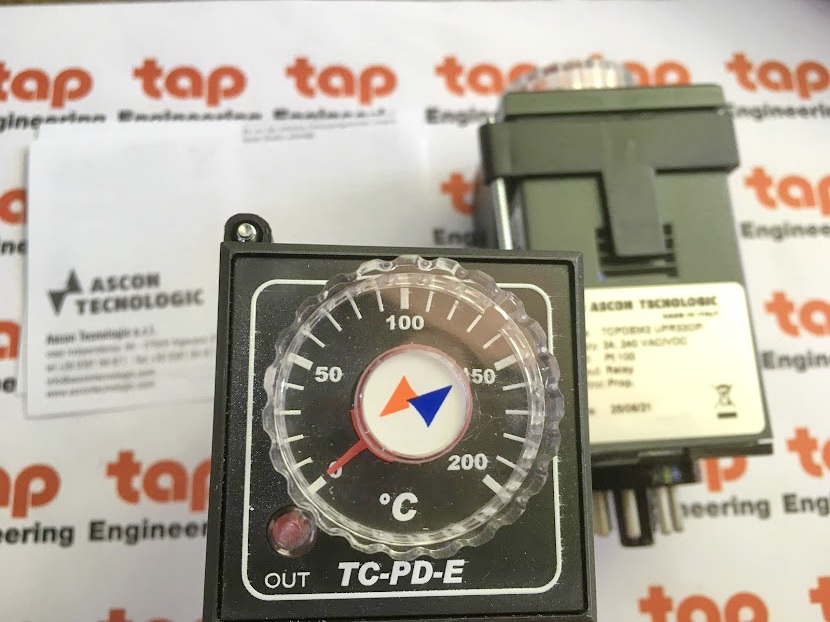

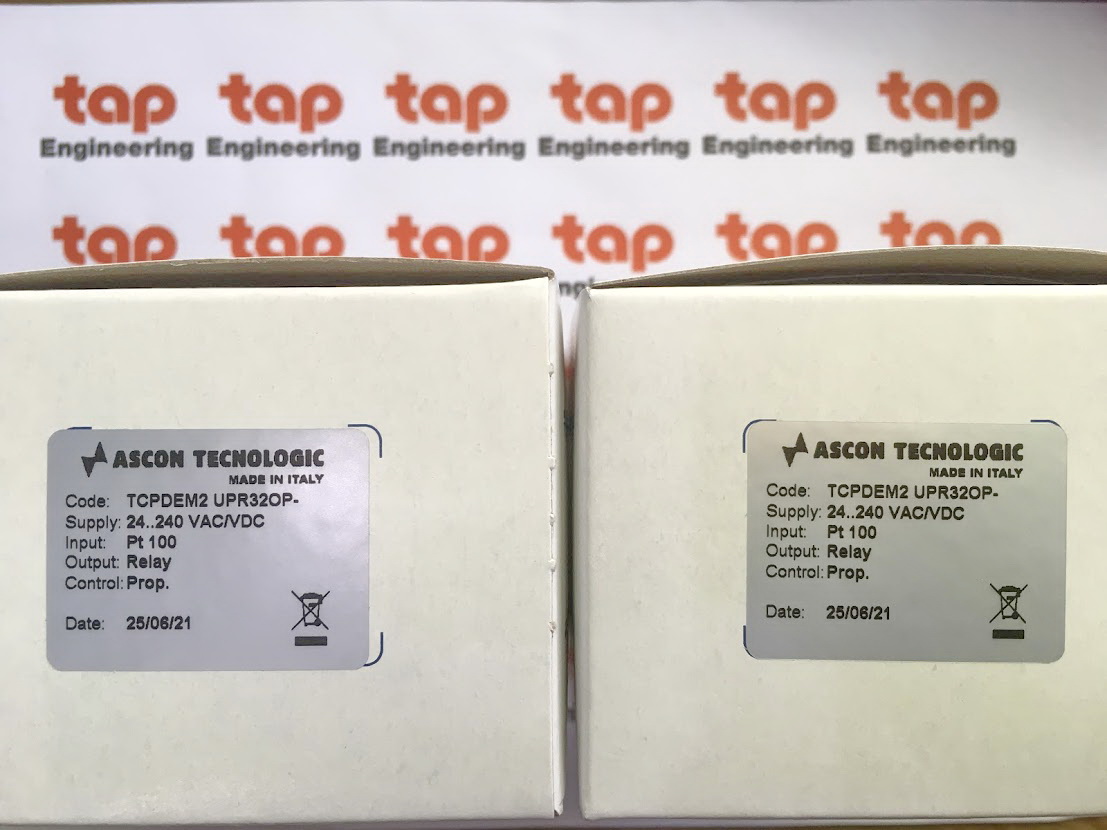

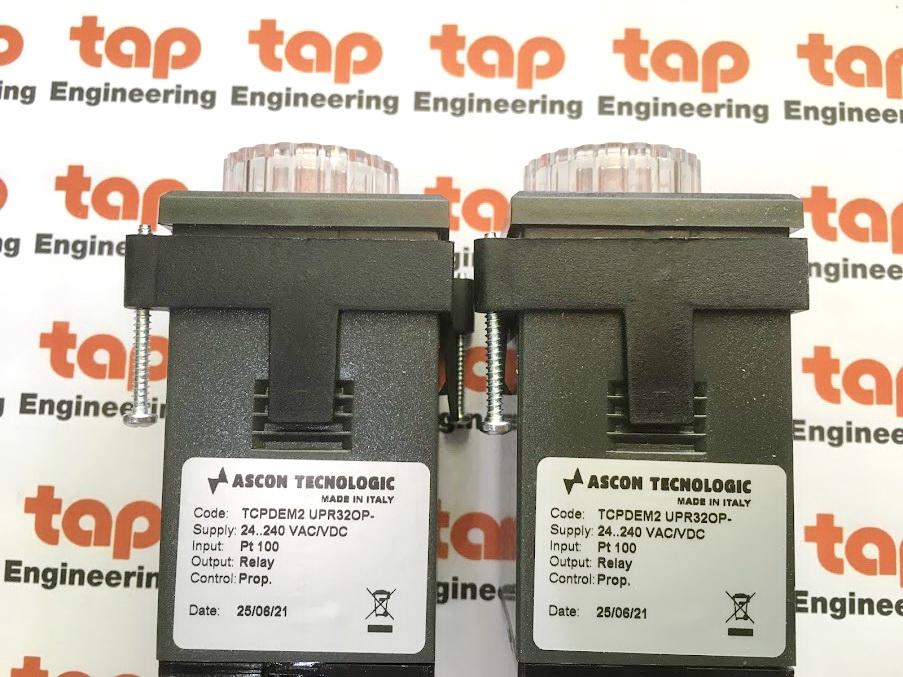

ASCON TCPDEM2 UPR32OP
ต้องการสอบถามราคา รายละเอียดสินค้า กรุณาแจ้งยี่ห้อ รุ่น จำนวน เข้ามาที่
ASCON K38
ASCON K38-HIR----E-----
ASCON TRH20 Humidity
ASCON K48
ASCON K85
ASCON TLK38 HIR---B
ASCON M1-3000-0000
ASCON M1-3007-0000
ASCON X3
ASCON Z31AHS-----E----
ASCON TCPDEM2 UPR32OP
ASCON M331500000
Temperature Controller
ASCON XS3000/AEA/9999-9999
Multi-input regulator with continuous output
ASCON XS3000/AEA/9999-9999
Multi-input regulator with continuous output
ต้องการสอบถามราคา รายละเอียดสินค้า กรุณาแจ้งยี่ห้อ รุ่น จำนวน เข้ามาที่
Mobile: 091-484-4332
Email: tap.part@engineer.com
·
KM1
Industrial automation
o Function: Controller
o Dimensions (mm): 48 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac,24 Vac/Vdc... 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,ON time,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
KM3
Industrial automation
o Function: Controller,Programmer,Transmitter
o Dimensions (mm): 48 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac,24 Vac/Vdc... 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,ON time,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
KM5
Industrial automation
o Function: Controller,Programmer,Transmitter
o Dimensions (mm): 48 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac,24 Vac/Vdc... 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Number of programs/segments: 1 program with 8 segments,1 program with 16 segments,4 programs with 16 segments,8 programs with 12 segments
o Special functions: Power for transmitter,User calibration,Digital retransmission,ON time,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
KX1
Industrial automation
o Function: Controller
o Dimensions (mm): 48 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,ON time,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
KX3
Industrial automation
o Function: Controller,Programmer,Transmitter
o Dimensions (mm): 48 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,ON time,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
KX5
Industrial automation
o Function: Controller,Programmer,Transmitter
o Dimensions (mm): 48 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Number of programs/segments: 1 program with 8 segments,1 program with 16 segments,4 programs with 16 segments,8 programs with 12 segments
o Special functions: Power for transmitter,User calibration,Digital retransmission,ON time,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
KX6
Industrial automation
o Function: Controller
o Dimensions (mm): 48 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V,Potentiometer
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Number of programs/segments: 1 program with 8 segments,1 program with 16 segments,4 programs with 16 segments,8 programs with 12 segments
o Special functions: Power for transmitter,User calibration,Digital retransmission,ON time,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
KR1
Industrial automation
o Function: Controller
o Dimensions (mm): 78 x 35
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,ON time,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
KR3
Industrial automation
o Function: Controller,Programmer,Transmitter
o Dimensions (mm): 78 x 35
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,ON time,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
KR5
Industrial automation
o Function: Controller,Programmer,Transmitter
o Dimensions (mm): 78 x 35
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Number of programs/segments: 1 program with 8 segments,1 program with 16 segments,4 programs with 16 segments,8 programs with 12 segments
o Special functions: Power for transmitter,User calibration,Digital retransmission,ON time,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
K30
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: No display
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4,5
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
K31
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 78 x 35
o Power supply: 12 Vac/Vdc,24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
K32
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 78 x 35
o Power supply: 12 Vac/Vdc,24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,Start delay,Soft start
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
K38
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 78 x 35
o Power supply: 12 Vac/Vdc,24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Number of outputs: 1,2
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Control type : ON/OFF and PID single or double action
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,Start delay,Soft start
o Extractability: Not removable, with fixed terminal
·
K39
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 78 x 35
o Power supply: 12 Vac/Vdc,24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Number of outputs: 1,2
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Control type : ON/OFF and PID single or double action
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,Start delay,Soft start
o Extractability: Not removable, with fixed terminal
·
K48
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 48 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Control type : ON/OFF and PID single or double action
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,Start delay,Soft start
o Extractability: By the front
·
K49
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 48 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Control type : ON/OFF and PID single or double action
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,Start delay,Soft start
o Extractability: By the front
·
K85
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Digital retransmission,Wattmeter,Worked hours/days ,Start delay,Soft start
o Extractability: Not removable, with fixed terminal
·
R38
Industrial automation
o Function: Controller
o Dimensions (mm): 78 x 35
o Power supply: 12 Vac/Vdc,24 Vac/Vdc,100… 240 Vac
o Display: 1 display 3 digit
o Input type: PTC-NTC,Thermocouple,Pt100
o Number of outputs: 1,2
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Control type : ON/OFF and PID single or double action
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
TLK33
Industrial automation
o Function: Controller
o Dimensions (mm): 78 x 35
o Power supply: 12 Vac/Vdc,24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,Control for Peltier cells
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Special functions: Power for transmitter,Soft start
o Extractability: Not removable, with fixed terminal
·
TLK43
Industrial automation
o Function: Controller,Transmitter
o Dimensions (mm): 48 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Auxiliary input: Current Transformer
o Digital inputs: 1
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,0/1… 5 V, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V,0/1… 5 V
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Special functions: Power for transmitter,Soft start
o Extractability: By the front
·
TLK72
Industrial automation
o Function: Controller
o Dimensions (mm): 72 x 72
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Number of outputs: 1,2,3
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Special functions: Power for transmitter
o Extractability: Not removable, with fixed terminal
·
TLK96
Industrial automation
o Function: Controller
o Dimensions (mm): 96 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Number of outputs: 1,2
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Control type : ON/OFF and PID single or double action
o Special functions: Power for transmitter
o Extractability: Not removable, with fixed terminal
·

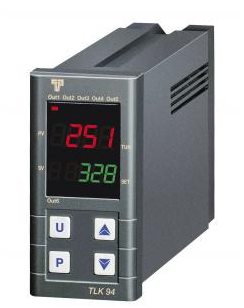

TLK94
Industrial automation
o Function: Controller,Transmitter
o Dimensions (mm): 48 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Auxiliary input: Current Transformer
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,0/1… 5 V, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V,0/1… 5 V
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Special functions: Power for transmitter,Soft start
o Extractability: By the front
·
C1
Industrial automation
o Function: Indicator,Controller,Transmitter
o Dimensions (mm): 48 x 24,DIN rail mounting
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Number of outputs: 1,2,3
o Type of control outputs: Relay and/or SSR driving
o Retransmission output: 0/4… 20 mA
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Special functions: Power for transmitter
o Extractability: By the front
·

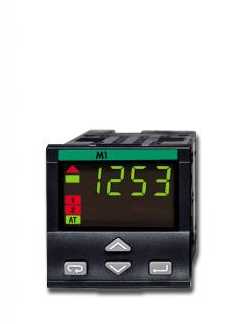

M1
Industrial automation
o Function: Controller,Transmitter
o Dimensions (mm): 48 x 48,DIN rail mounting
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving
o Retransmission output: 0/4… 20 mA
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Special functions: Power for transmitter
o Extractability: By the front
·
M2
Industrial automation
o Function: Controller
o Dimensions (mm): 48 x 48,DIN rail mounting
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Auxiliary input: Current Transformer
o Digital inputs: 1
o Number of outputs: 1,2,3
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Special functions: Power for transmitter
o Extractability: By the front
·
M3
Industrial automation
o Function: Controller
o Dimensions (mm): 48 x 48,DIN rail mounting
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Auxiliary input: Current Transformer
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,0/1… 5 V
o Retransmission output: 0/4… 20 mA
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Independent timer: Yes
o Special functions: Power for transmitter,Soft start
o Extractability: By the front
·
M4
Industrial automation
o Function: Controller
o Dimensions (mm): 48 x 48,DIN rail mounting
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Auxiliary input: Current Transformer
o Digital inputs: 1
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,0/1… 5 V
o Retransmission output: 0/4… 20 mA
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Independent timer: Yes
o Special functions: Power for transmitter,Soft start
o Extractability: By the front
·
M5
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 48 x 48,DIN rail mounting
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Auxiliary input: Potentiometer,Remote set point,Current Transformer
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,0/1… 5 V, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V,0/1… 5 V
o Serial interface: RS485 Modbus Slave,RS232 Modbus Slave
o Control type : ON/OFF and PID single or double action,Dual Action with 2 PID,Servomotor
o Number of programs/segments: 1 program with 8 segments,1 program with 16 segments
o Special functions: Power for transmitter,Soft start
o Extractability: By the front
·
X1
Industrial automation
o Function: Controller
o Dimensions (mm): 48 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Auxiliary input: Remote set point,Current Transformer
o Number of outputs: 1,2,3,4,5
o Type of control outputs: Relay and/or SSR driving
o Retransmission output: 0/4… 20 mA
o Serial interface: RS485 Modbus Slave,RS232 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Independent timer: Yes
o Special functions: Power for transmitter,Soft start
o Extractability: By the front
·
X3
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 48 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Auxiliary input: Remote set point,Current Transformer
o Digital inputs: 1,2,3
o Number of outputs: 1,2,3,4,5
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,0/1… 5 V,Servomotor
o Retransmission output: 0/4… 20 mA
o Serial interface: RS485 Modbus Slave,RS232 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,Soft start
o Extractability: By the front
·
X5
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 48 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 3 display
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Auxiliary input: Potentiometer,Remote set point
o Digital inputs: 1,2,3
o Number of outputs: 1,2,3,4,5,6
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,0/1… 5 V, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V,0/1… 5 V
o Serial interface: RS485 Modbus Slave,RS485 Modbus Master,RS232 Modbus Slave,Profibus
o Control type : ON/OFF and PID single or double action,Dual Action with 2 PID,Servomotor
o Number of programs/segments: 1 program with 8 segments,1 program with 16 segments,4 programs with 16 segments
o Special functions: Power for transmitter,Math functions,Soft start
o Extractability: By the front
·
Q1
Industrial automation
o Function: Controller
o Dimensions (mm): 96 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Auxiliary input: Remote set point,Current Transformer
o Number of outputs: 1,2,3,4,5
o Type of control outputs: Relay and/or SSR driving
o Retransmission output: 0/4… 20 mA
o Serial interface: RS485 Modbus Slave,RS232 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Independent timer: Yes
o Special functions: Power for transmitter,Soft start
o Extractability: By the front
·
Q3
Industrial automation
o Function: Controller
o Dimensions (mm): 96 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Auxiliary input: Remote set point,Current Transformer
o Digital inputs: 1,2,3
o Number of outputs: 1,2,3,4,5
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,0/1… 5 V,Servomotor
o Retransmission output: 0/4… 20 mA
o Serial interface: RS485 Modbus Slave,RS232 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,Soft start
o Extractability: By the front
·
Q5
Industrial automation
o Function: Controller
o Dimensions (mm): 96 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 3 display
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Auxiliary input: Potentiometer,Remote set point
o Digital inputs: 1,2,3
o Number of outputs: 1,2,3,4,5,6
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,0/1… 5 V, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V,0/1… 5 V
o Serial interface: RS485 Modbus Slave,RS485 Modbus Master,RS232 Modbus Slave,Profibus
o Control type : ON/OFF and PID single or double action,Dual Action with 2 PID,Servomotor
o Number of programs/segments: 1 program with 8 segments,1 program with 16 segments,4 programs with 16 segments
o Special functions: Power for transmitter,Math functions,Soft start
o Extractability: By the front
·
QP
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 96 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 3 display
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Auxiliary input: Potentiometer
o Digital inputs: 1,2,3
o Number of outputs: 1,2,3,4,5,6
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,0/1… 5 V, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V,0/1… 5 V
o Serial interface: RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Dual Action with 2 PID,Servomotor
o Number of programs/segments: 200 segments divided into x programs
o Special functions: Power for transmitter
o Extractability: By the front
·
QD
Industrial automation
o Function: Controller
o Dimensions (mm): 96 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 3 display
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Auxiliary input: Potentiometer
o Digital inputs: 1,2,3
o Number of outputs: 1,2,3,4,5,6
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,0/1… 5 V, 0/2… 10 V,Servomotor
o Retransmission output: 0/4… 20 mA, 0/2… 10 V,0/1… 5 V
o Serial interface: RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Dual Action with 2 PID,Servomotor
o Special functions: Power for transmitter
o Extractability: By the front
·
J1
Industrial automation
o Function: Indicator
o Dimensions (mm): 96 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 1 display 5 digits 2 configurable colours
o Input type: Universal,Pt100, Delta T Pt100,0/4… 20 mA
o Number of outputs: 1,2
o Type of control outputs: Relay and/or SSR driving
o Serial interface: RS485 Modbus Slave,RS232 Modbus Slave
o Special functions: Power for transmitter
o Extractability: By the front
·
J3
Industrial automation
o Function: Indicator,Transmitter
o Dimensions (mm): 96 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 1 display 5 digits 2 configurable colours
o Input type: Universal,Pt100, Delta T Pt100,0/4… 20 mA
o Digital inputs: 1,2,3
o Number of outputs: 1,2,3,4,5
o Type of control outputs: Relay and/or SSR driving
o Retransmission output: 0/4… 20 mA
o Serial interface: RS485 Modbus Slave,RS232 Modbus Slave
o Special functions: Power for transmitter
o Extractability: By the front
·
J5
Industrial automation
o Function: Indicator,Transmitter
o Dimensions (mm): 96 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 1 display 5 digits 2 configurable colours
o Input type: 0/4… 20 mA,0/1… 5 V,0/2… 10 V,Strain Gauge
o Digital inputs: 1,2,3
o Number of outputs: 1,2,3,4,5
o Type of control outputs: Relay and/or SSR driving
o Retransmission output: 0/4… 20 mA
o Serial interface: RS485 Modbus Slave,RS232 Modbus Slave
o Special functions: Power for transmitter,User calibration,Math functions
o Extractability: By the front
·
D1
Industrial automation
o Function: Controller
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc
o Display: No display
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Auxiliary input: Current Transformer
o Digital inputs: 1
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving
o Serial interface: RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Soft start
o Extractability: By the front
·
D2
Industrial automation
o Function: Controller
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc
o Display: No display
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Digital inputs: 1
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving
o Serial interface: RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Special functions: User calibration,Soft start
o Extractability: By the front
·
D3
Industrial automation
o Function: Controller
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc
o Display: No display
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Digital inputs: 1
o Number of outputs: 1,2,3,4,5
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA,Servomotor
o Retransmission output: 0/4… 20 mA
o Serial interface: RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action,Servomotor
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Soft start
o Extractability: By the front
·
D7
Industrial automation
o Function: Transmitter
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc
o Display: No display
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Digital inputs: 1
o Number of outputs: 1,2,3
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA
o Retransmission output: 0/4… 20 mA
o Serial interface: RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Special functions: Power for transmitter,User calibration
o Extractability: By the front
·
D8
Industrial automation
o Function: Logger
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc
o Display: No display
o Digital inputs: 1,2,3,6
o Number of outputs: 1,2
o Type of control outputs: Relay and/or SSR driving
o Serial interface: RS485 Modbus Slave
o Special functions: PWM
o Extractability: By the front
·
D9
Industrial automation
o Function: Logger
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc
o Display: No display
o Input type: Universal,Thermocouple,Pt100, Delta T Pt100,0/4… 20 mA
o Digital inputs: 1,2,3
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving
o Serial interface: RS485 Modbus Slave
o Control type : ON/OFF and PID single or double action
o Special functions: User calibration
o Extractability: By the front
·
DX
Industrial automation
o Function: Logger
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc
o Display: No display
o Serial interface: RS485 Modbus Slave,RS485 Modbus Master,Profibus,DeviceNET
o Extractability: By the front
·
DY
Industrial automation
o Function: Logger
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc
o Display: No display
o Serial interface: RS485 Modbus Master,CanOPEN,Modbus TCP/IP
o Extractability: By the front
·
TLI40
Industrial automation
o Function: Indicator,Transmitter
o Dimensions (mm): 48 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V,Potentiometer
o Auxiliary input: Potentiometer,Current Transformer
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving
o Retransmission output: 0/4… 20 mA, 0/2… 10 V
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Special functions: Power for transmitter
o Extractability: Not removable, with fixed terminal
·
K31V
Industrial automation
o Function: Indicator
o Dimensions (mm): 78 x 35
o Power supply: 12 Vac/Vdc,24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3,4
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Special functions: Power for transmitter,User calibration,Worked hours/days
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
K38V
Industrial automation
o Function: Indicator
o Dimensions (mm): 78 x 35
o Power supply: 12 Vac/Vdc,24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Number of outputs: 1,2
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Special functions: Power for transmitter,User calibration,Worked hours/days
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
K48V
Industrial automation
o Function: Indicator
o Dimensions (mm): 48 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Special functions: Power for transmitter,User calibration,Worked hours/days
o Extractability: Not removable, with fixed terminal
·
K85V
Industrial automation
o Function: Indicator
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Input type: PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V
o Digital inputs: 1,2
o Number of outputs: 1,2,3
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485 Modbus Slave
o Special functions: Power for transmitter,User calibration,Worked hours/days
o Extractability: Not removable, with fixed terminal
·
Z31A
Industrial automation
o Function: Controller
o Dimensions (mm): 78 x 35
o Power supply: 12 Vac/Vdc,24 Vac/Vdc,100… 240 Vac
o Display: 1 display 3 digit
o Input type: PTC-NTC
o Number of outputs: 1
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
·
TLZ35
Industrial automation
o Function: Controller
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 1 display 3 digit
o Input type: PTC-NTC
o Digital inputs: 1
o Number of outputs: 1,2
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Extractability: Not removable, with fixed terminal
·
E51A
Industrial automation
o Function: Indicator
o Dimensions (mm): 68 x 35
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 1 display 3 digit
o Input type: PTC-NTC
o Number of outputs: 1
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Extractability: Not removable, with fixed terminal
·
W09
Industrial automation
o Function: Controller
o Power supply: 100… 240 Vac
o Display: 1 display 3 digit
o Input type: PTC-NTC
o Number of outputs: 1
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus
o Extractability: Not removable, with fixed terminal
·
TCPDE
Industrial automation
o Function: Controller
o Dimensions (mm): 48 x 48
o Power supply: 100… 240 Vac
o Display: No display
o Input type: Thermocouple,Pt100
o Number of outputs: 1
o Type of control outputs: Relay and/or SSR driving
o Extractability: Not removable, with fixed terminal
·
KM7
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 48 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,0/4… 20 mA,0/1… 5 V,0/2… 10 V,NTC,Digital
o Digital inputs: 2
o Number of outputs: 3
o Type of control outputs: Relay and/or SSR driving,Servomotor
o Serial interface: TTL Modbus
o Control type : ON/OFF and PID single or double action
o Independent timer: Yes
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
o Type of outputs: Relay or SSR driving
o Number of inputs: 1
o Special functions: Temperature controller with speed control
·
KR7
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 78 x 35
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V,NTC,Digital
o Digital inputs: 2
o Number of outputs: 3
o Type of control outputs: Relay and/or SSR driving,Servomotor
o Serial interface: TTL Modbus,RS485
o Control type : ON/OFF and PID single or double action
o Independent timer: Yes
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
o Number of inputs on board: 1
o Type of outputs: Relay or SSR driving,Relay
o Number of inputs: 1
o Special functions: Temperature controller with speed control
·

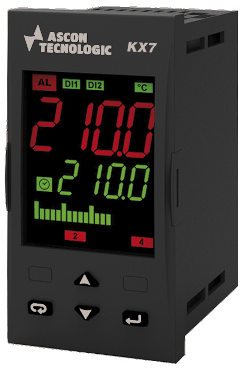

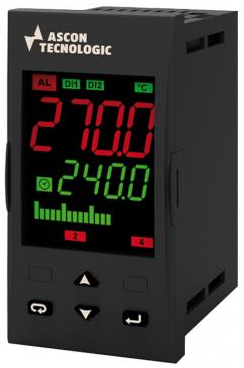

KX7
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 48 x 96
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V,NTC,Digital
o Digital inputs: 2
o Number of outputs: 3
o Type of control outputs: Relay and/or SSR driving,Servomotor
o Serial interface: TTL Modbus
o Control type : ON/OFF and PID single or double action,Servomotor,ON/OFF, PID with Autotuning
o Independent timer: Yes
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
o Number of inputs on board: 1
o Type of outputs: Relay or SSR driving,Relay
o Number of inputs: 1
o Special functions: Temperature controller with speed control
·
KRD7
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): DIN rail mounting
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: No display
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V,NTC,Digital
o Digital inputs: 2
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485
o Control type : ON/OFF and PID single or double action,Servomotor,ON/OFF, PID with Autotuning
o Independent timer: Yes
o Number of inputs on board: 1
o Type of outputs: Relay or SSR driving,Relay
o Number of inputs: 1
o Special functions: Temperature controller with speed control
·
KM2
Industrial automation
o Function: Controller,Programmer
o Dimensions (mm): 48 x 48
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V,NTC,Digital
o Auxiliary input: Current Transformer
o Digital inputs: 1,2
o Number of outputs: 1,2,3
o Type of control outputs: Relay and/or SSR driving,0/4… 20 mA, 0/2… 10 V
o Control type : ON/OFF and PID single or double action
o Number of programs/segments: 1 program with 8 segments
o Independent timer: Yes
o Special functions: Power for transmitter,User calibration,Wattmeter,Worked hours/days
o Extractability: Not removable, with fixed terminal,Not removable, with removable terminals
o Number of inputs on board: 1
o Type of outputs: Relay or SSR driving,Analog in current and voltage,Relay ,0/4… 20 mA,0/1… 5 V, 0/2… 10 V
o Serial interface: RS485
o Power supply: 24... 240 Vac/Vdc
KM1E
Industrial automation
o Dimensions (mm): 48 x 48
o Power supply: 24 Vac/Vdc,100… 240 Vac
o Display: 2 display 4 digit 3 dynamic colors
o Input type: Universal, PTC-NTC,Thermocouple,Pt100,0/4… 20 mA,0/1… 5 V,0/2… 10 V,NTC
o Number of outputs: 3
o Type of control outputs: Relay and/or SSR driving
o Serial interface: TTL Modbus,RS485
o Number of inputs on board: 1
o Control type : ON/OFF, PID with Autotuning
o Type of outputs: Relay
o Number of inputs: 1
o Function: Wine controller
May 2012
USEFUL APPLICATIONS
• Shoemaking Machineries
• Glueing and binding machines (hot glue)
• Packaging and blister packing machines
• Paint booths
• T-shirt printing
• Climatic chambers and incubators
• Hot runner
• Glass bending ovens
• Extruders
• Industrial baking or large kitchens
• Continuous multi-zone ovens
(for PCB, for leather goods, etc.)
• Ceramics ovens
• Heat-treatment ovens
• Ovens for goldsmiths and dentists
• Simple cascade controls
• Chillers
• Input for TC, RTD, PTC, NTC, mA or V
• User Calibration
• H/C PID Control with overshoot control, self-tune and 2 Autotuning
algorithms
• 8 segment programmer function with segment recovery, 2 events
and stasis control (guaranteed soak)
• Independent timer with 4 functioning modes
• H/C On/OFF Control with compressor protection time
• Wattmeter for calculating the instantaneous power and energy used
• Digital Retransmission of the set point
• Counter for days and hours worked with programmable threshold
for preventative maintenance
• Delay at the start up function
• Parameter sequence freely programmable
• Ramp to set point change
• RS485 Serial Communication with Modbus RTU protocol
• Soft start
K Series
Controllers / mini-programmers
with wattmeter function and independent timer
Master
Slave 1 Slave 2 Slave n
RS 485
K Series
TWO AUTOTUNING ALGORITHMS
In order to meet the clients’ needs and those of their production
processes, ASCON TECNOLOGIC have developed two autotuning
algorithms (as well as adaptive self-tuning):
Oscillatory autotuning and the “fast” type.
- Oscillatory autotuning is the classic type that requires 3
oscillations to be made around a set point.
This type of tuning is particularly accurate and can be set up at any
moment. However, it takes a long time and generates an overshoot
that, although not exaggerated, may not be appreciated.
- Fast autotuning on the other hand is much faster and therefore
particularly suitable for very slow processes.
Another of its characteristics is that it does not generate
overshoot (the algorithm aims at keeping the PV under the set
point).
Finally fast autotuning, applied in multi-loop systems, feels the
“dragging” effects produced by neighbouring loops much less and
is therefore particularly suitable for machines such as extruders,
hot-runners, continuous ovens, etc.
USER CALIBRATION
This function allows the manufacturer of the machine to calibrate
the entire measuring chain thus compensating for all errors due
to:
- sensor position
- class of sensor
- accuracy of the
instrument.
The user calibration
does NOT modify the
plant calibration
and can always be
cancelled.
PROGRAMMER FUNCTION
Applied example:
Paint booth and drying chamber for spray paints (spray booths for
bodywork).
- During the painting phase, the temperature inside the booth must
remain at 20°C and the air used for its ventilation must come from
outside.
- Once the painting is Finished, the operator leaves the booth, closes
the door and starts up the “drying” cycle.
During this phase the instrument closes the air gate and recycles
the air inside the booth by means of which energy consumption is
reduced.
- When the drying phase is over but before the operator can enter
the booth, it is necessary to re-open the air gate and ensure that:
1) The air inside the booth has been replaced with air from outside.
2) The temperature in the cabin is lower than the pre-established
value.
- The thermal proFile needed is as follows.
Out 1 = Heating output
Out 2 = Event 1
Out 3 = Programme running
Event 1 = in ON during ramp 1, stasis 1, ramp 2, and stasis 2.
Once the programme is running the door stays blocked.
The control function of the stasis allows us to end the programme
(therefore allowing access to the operator) ONLY when the
temperature in the booth has reached the programmed value (in the
example Pr.S3). In addition, if a power down occurs during program
execution, at the next power up, the instrument is able to continue
the program execution starting from the segment in progress and,
if the segment was a soak, the restart point will take care of the
soak time already made (with an accuracy equal to 30 min.)
DIGITAL RETRANSMISSION
By making use of serial communication and without using a PC, it is
possible for an instrument (Master) to send its operative set points
to other instruments (Slave).
Furthermore, each slave instrument can add one of its offsets to the
value received.
It is therefore possible to modify the set point of all the connected
instruments by modifying the set point of the master only.
Typical applications include continuous ovens, hot-runners,
polymerization ovens, etc.
2
ACCESSORIES
A01 - Programming key
Makes it possible to:
- Memorize the conFiguration of an instrument
to transfer it to other instruments
- Transfer a conFiguration to a PC
- Memorize a conFiguration recorded in a PC
- Let the instrument “converse”
directly with a PC.
WinTec - Supervisor
- Data Acquisition
- Supervision
- Alarm management
- Recipe management
- Trend
- Reports.
door
Controllers / mini-programmers
TECHNICAL FEATURES
ELECTRICAL DATA
Power supply: see the “How to order”
Power consumption: max 6 VA
Device Class: Class II
Nominal pulse voltage: 2,5 KV
Category of overvoltage: II
Isolation: reinforced between low voltage (input and output relay)
and frontal parts. Reinforced between low voltage and very low
voltage parts (input, static outputs)
THERMOCOUPLE INPUT
Type: J,K,S,R,T programmable
Line resistance: 100 W with error <± 0.1% of the input range width
Unit of measurement: °C or °F programmable
Cold junction: automatic compensation from 0 to +50 °C
Cold junction accuracy: 0,1 °C/°C @ 25 °C after a warm-up (instrument
switch-on) of 20 min
Calibration: according to EN 60584-1
Burn-out: at the end of scale
TC Type Range
J From 0 to 1000 °C From 32 to 1832 °F
From 0.0 to 999.9°C From 32.0 to 999.0 °F
K From 0 to 1370 °C From 32 to 2498 °F
From 0.0 to 999.9°C From 32.0 to 999.0 °F
S From 0 to 1760 °C From 32 to 3200 °F
From 0.0 to 999.9°C From 32.0 to 999.0 °F
R From 0 to 1760 °C From 32 to 3200 °F
From 0.0 to 999.9°C From 32.0 to 999.0 °F
T From 0 to 400 °C From 32 to 752 °F
From 0.0 to 400.0°C From 32.0 to 752.0 °F
THERMORESISTANCE INPUT (RTD)
Type: Pt 100 3 wires
Current: 135 μA
Line resistance: automatic compensation up to 20 W/wire with
maximum error <± 0.1% of the input span
Unit of measurement: °C or °F programmable
Burn-out: at the end of scale
Calibration: according to EN 60751/A2
RTD Type Range
Pt 100 From -200 to 850 °C From -328 to 1562 °F
From -200.0 to 850.0 °C From -328.0 to 999.9 °F
THERMISTOR INPUT
Type: KTY 81-121 (990 W @ 25 °C) and NTC 103AT-2 (10 K W @ 25 °C)
Unit of measurement: °C or F, programmable
Type Range
KTY 81-121 From -55 to 150 °C From -67 to 302°F
From -55.0 to 150.0 °C From -67.0 to 302.0 °F
NTC103 AT-2 From -50 to 110 °C From -58 to 230°F
From -50.0 to 110.0 °C From -58.0 to 230.0 °F
LINEAR SIGNALS INPUT
Type: 0/10-50 mV, 0/12-60 mV, 0/4-20 mA, 0/1-5 V, 0/2-10 V
Visualization: programmable from -1999 to 9999
Decimal point: programmable
Burn-out: (only for zero suppression signals ) Burn-out signaling
when the input signal is less than 5% of the input field
Auxiliary supply for 0/4 - 20 mA transmitters:
- Type: not isolated and not protected against short-circuit
- Load: 10 V @ 20 mA
Input impedance:
- 51 W for mA input
- >1 M W for mV and V inputs
DIGITAL INPUTS
Type: for free-voltage contacts
Max contact resistance: 10 W
Contact load: 10 V, 6 mA
OUTPUTS
Function: programmable
Output action: direct/reverse, programmable
Type:
a) Relay outputs
Contact: SPDT or SPST-NO
Contact Load: see the “How to order”
Relay electric life: 100000 operations
b) Logic tension to drive a solid state relay
Isolation: Output NOT isolated as regards the very low voltage
parts
Logic state 1: 12 V ± 20% @ 1 mA
10 V ± 20% @ 20 mA
Logic state 0: <0.5 v="" span="">
POWER OUTPUT SENSOR
Isolation: Output not isolated and not protected by the short circuit
Tension: 12 VDC
Current: 20 mA Max
COMMUNICATION
Type: TTL Modbus and RS 485 (optional)
Isolation: functional isolation (50 V) with respect to the very low
voltage parts
Protocol: Modbus RTU
Electrical levels: according to EIA standards
Baud rate: from 1200 to 38000 baud
Parity: none
Data formed: 8 bit + 1 start bit + 1 stop bit
ENVIROMENTAL DATA
Pollution category: 2
Installation category: II
Operating temperature: from 0 to 50 °C
Operating humidity: < 95 RH% without condensation
Storage temperature: -25 °C to 60 °C
FUNCTIONAL DATA
Control: - single action PID, double action PID
- on/off, Neutral Zone on/off
Overall accuracy: ± (0,5 % span ± 1 digit @25 °C);
Tc S: ± (1 % span ± 1 digit @ 25 °C)
Sampling rate: 130 ms
Display updating time: 500 ms
Common-mode rejection: 120 dB to 50/60 Hz
Normal-mode rejection: 60 dB to 50/60 Hz
Conformity: EMC 2004/108/CE (EN 61326) Directive, LV 2006/95/CE (EN
61010-1) Directive.
3
4
MECHANICAL DATA
Housing: UL 94 V0 self-extinguishing plastic
Mounting: on Omega DIN rail
Dimensions: 4 DIN module, 70 x 84 mm, depth 60 mm
Display: 4 Red Digit h 12 mm
Weight: 180 g approx.
Terminal block: 24 screw terminals (screw M3 for cables from 0.25 to
2.5 mm2
or from AWG 22 to AWG 14 )
Protection degree: IP 40 (screw terminal IP20) according to
EN 60070-1 for indoor use.
DIMENSIONS (mm)
CONNECTIONS
HOW TO ORDER
K85 - = Regulator
K85T = Regulator + timer
K85P = Regulator + timer + programmer
Power supply
L = 24 V AC/DC
H = 100 - 240 V AC
Input
C = J, K, R, S, T, PT100, 0/12...60 mV
E = J, K, R, S, T, PTC, NTC, 0/12...60mV
I = 0/4...20 mA
V = 0...1V, 0/1...5V, 0/2...10V
Out 1
R = SPDT 8 A Relay (resistive)
O = VDC for SSR
Out 2
- = Not available
R = SPDT 8 A Relay (resistive)
O = VDC for SSR
Out 3
- = Not available
R = SPST-NO 5 A Relay (resistive)
O = VDC for SSR
Communication
- = TTL ModBus
S = RS 485 ModBus
Digital input
- = Not available
D = 2 digital inputs
K 85
4 DIN module - up to 3 outputs
K 85
K Series
5
MECHANICAL DATA
DIMENSIONS (mm)
K 32
Double display
K 31
Single display
CONNECTIONS
HOW TO ORDER
K 31-32
78 x 35 - up to 4 outputs
K31/ K32 (*) - = Controller
K31/ K32 (*) T = Controller + timer
K31/ K32 (*) P = Controller + timer + programmer
(*) K32: Add the code S to have “Sensitive Touch” keyboard.
Power supply
F = 12 V AC/DC
L = 24 V AC/DC (available soon)
H = 100 - 240 V AC/DC
Input
C = J, K, R, S, T, PT100, 0/12...60 mV + 2 Digital Inputs
E = J, K, R, S, T, PTC, NTC, 0/12...60mV + 2 Digital Inputs
I = 0/4...20 mA + 2 Digital Inputs
V = 0...1V, 0/1...5V, 0/2...10V + 2 Digital Inputs
Out 1
R = SPDT 8 A relay (resistive)
O = VDC for SSR
Out 2
- = Not available
R = SPDT 8 A Relay (resistive)
O = VDC for SSR
Out 3
- = Not available
R = SPST-NO 5 A Relay (resistive)
O = VDC for SSR
Out 4
- = Not available
R = SPST-NO 5 A Relay (resistive)
O = VDC for SSR
Communication
- = TTL ModBus
S = RS 485 ModBus
Housing: UL 94 V0 self-extinguishing plastic
Keyboard: mechanical and “Sensitive Touch” type (for K32 only)
Mounting: flush in panel
Dimensions: 78 x 35 mm, depth 75,5 mm
Panel cut-out: 71 (-0 to + 0,6 mm) x 29 (-0 to +0,5 mm)
Display: K31 - 4 Digit single display, red colour, h 12 mm + 3 LED
Bargraph
K32 - 4 Digit double display, red and green colour, h 7 mm
Weight: 180 g approx.
Screw terminals: 24 screw terminals (screw M3 for cables from 0.25
to 2.5 mm2
or from AWG 22 to AWG 14)
Protection Degree:
- Front protection: IP 65 (with gasket) according to EN 60070-1 for
indoor use
- Screw terminal: IP20.
Controllers / mini-programmers
6
MECHANICAL DATA
Housing: UL 94 V0 self-extinguishing plastic
Mounting: flush in panel
Dimensions: 75 x 33 mm, depth 64 mm
Panel cut-out: 71 (-0 to + 0,6 mm) x 29 (-0 to +0,5 mm)
Display: K38 - 4 Digit single display, red colour, h 12 mm + 3 LED
Bargraph
K39 - 4 Digit double display, red and green colour, h 7 mm
Weight: 180 g approx.
Screw terminals: 12 screw terminals (screw M3 for cables from 0.25
to 2.5 mm2
or from AWG 22 to AWG 14)
Protection Degree:
- Front protection: IP 65 (with gasket) according to EN 60070-1 for
indoor use
- Screw terminal: IP20.
DIMENSIONS (mm)
K 39
Double display
K 38
Single display
K 38-39
78 x 35 - up to 2 outputs
CONNECTIONS
HOW TO ORDER
K38 - = Regulator single display
K38T = Regulator + timer
K38P = Regulator + timer + programmer
K39 - = Regulator double display
K39T = Regulator + timer
K39P = Regulator + timer + programmer
Power supply
F = 12 V AC/DC
L = 24 V AC/DC
H = 100 - 240 V AC
Input
C = J, K, R, S, T, PT100, 0/12...60 mV
E = J, K, R, S, T, PTC, NTC, 0/12...60mV
I = 0/4...20 mA
V = 0...1V, 0/1...5V, 0/2...10V
Out 1
R = SPDT 8 A Relay (resistive)
O = VDC for SSR
Out 2
- = Not available
R = SPDT 8 A Relay (resistive)
O = VDC for SSR
K Series
7
MECHANICAL DATA
Housing: UL 94 V0 self-extinguishing plastic
Mounting: flush in panel
Dimensions: 48 x 48 mm (1/8 DIN), depth 98 mm
Panel cut-out: 45 (-0 to + 0,6 mm) x 45 (-0 to +0,5 mm)
Display: K48 - 4 Digit single display, red colour, h 12 mm + 3 LED
Bargraph
K49 – 4 Digit double display, red and green colour, h 7 mm.
Weight: 180 g approx.
Screw terminals: 12 screw terminals (screw M3 for cables from 0.25
to 2.5 mm2
or from AWG 22 to AWG 14)
Protection Degree:
- Front protection: IP 65 (with gasket) according to EN 60070-1 for
indoor use
- Screw terminal: IP20.
DIMENSIONS (mm)
K 49
Double display
K 48
Single display
CONNECTIONS
HOW TO ORDER
K48 - = Regulator single display
K48T = Regulator + timer
K48P = Regulator + timer + programmer
K49 - = Regulator double display
K49T = Regulator + timer
K49P = Regulator + timer + programmer
Power supply
L = 24 V AC/DC
H = 100 - 240 V AC
Input
C = J, K, R, S, T, PT100, 0/12...60 mV
E = J, K, R, S, T, PTC, NTC, 0/12...60mV
I = 0/4...20 mA
V = 0...1V, 0/1...5V, 0/2...10V
Out 1
R = SPST-NO 8 A Relay (resistive)
O = VDC for SSR
Out 2
- = Not available
R = SPST-NO 8 A Relay (resistive)
O = VDC for SSR
Out 3 / Digital inputs
- = Not available
R = SPST 5 A Relay (resistive)
O = VDC for SSR
D = 2 digital inputs
K 48-49
48 x 48 - up to 3 outputs
Controllers / mini-programmers
PRINTED IN ITALY - may 2012
This publication belongs exclusively to Ascon Tecnologic S.r.l. and may not be reproduced unless with expressed authorisation. Ascon Tecnologic S.r.l. reserves the right to make modifi cations without warning.
Ascon Tecnologic France
BP 76 · 77202 - Marne La Vallee Cedex 1
tel +33 1 64 30 62 62 · fax +33 1 64 30 84 98
info@ascontecnologic.fr
Tecnologic uk ltd
unit 1 Farnborough Business Centre
Eelmoor Road, Farnborough GU14 7xa,
Hampshire
tel +44 125 2377 600 · fax +44 125 2377 601
sales@tecnologicuk.co.uk
Ascon Polska Sp. z o.o.
KOCHCICE ul. Kochanowicka 43
42-713 Kochanowice
tel +48 34 35 33 619 · fax +48 34 35 33 884
info@ascon.pl
Ascon Corporation
1884 East Fabyan Parkway
Batavia, Illinois 60510
tel +1 630 482 29 50 · Fax +1 630 482 29 56
info@asconcorp.com
Coel ltda
Al. Vincente Pinzon, 173 - 9° andar
Sao Paulo · SP - CEP 04547 - 130
tel · fax +55 112066-3211
info@coel.com.br
Ascon Tecnologic s.r.l.
viale Indipendenza, 56 · 27029 Vigevano (PV)
Italy
tel +39 0381 69 871 · fax +39 0381 69 87 30
Milan Office
via Falzarego, 9/11 · 20021 Baranzate (MI)
Italy
tel +39 02 33 33 71 · fax +39 02 35 04 243
ASCON X5-3100-4200
ASCON X5-5104-0200/9999
ASCON X5-3104-0200
ASCON X5-3104-0000
ASCON X5-3100-0200
ASCON X5-3100-0000
ASCON X5-3104-0000
ASCON X3-3105-0200/9999
ASCON X3-3100-0940
ASCON X3-3557-2100/9999
ASCON X3-3155-0000
ASCON X3-3152-0000
ASCON X3-3150-0200/9999
ASCON X3-3107-2200/9999
ASCON X3-3107-0000
ASCON X3-3100-0200/9999
ASCON X3-3100-0000
ASCON X3 3107-2000/0124-0000
ASCON X1-3100-0200
ASCON TLK48LCR
ASCON TLK48LCO
ASCON TLK43HVRRR
ASCON TLK31
ASCON QP-3300
ASCON QP-3011
ASCON M5-3152-0200
ASCON M5-3100-0000
ASCON M5-3100-0200
ASCON M5-3104-1000
ASCON M5-3151-0200
ASCON M5-3104-0200
ASCON M5-3101-0200
ASCON M5-3100-1200
ASCON M4-3107-0201
ASCON M4-3107-0200
ASCON M4-3107-0000
ASCON M4-5107-0000
ASCON M3-5100-0000
ASCON M3-3150-0200/9999
ASCON M3-31000-0000
ASCON M3-3107-0000
ASCON M3-5107-0200/9999
ASCON M3-3100-0200/9999
ASCON M3-3100-0200/9999
ASCON M3-3100-0000
ASCON M3 3100-0200
ASCON M1-3000-0200
ASCON M1-3007-0000
ASCON M1/1P/002200
ASCON M1-3000-0200
ASCON M1-3000-0200
ASCON M130000000
ASCON M1 5000-0200/9990
ASCON KX1-HCRRRD
ASCON K85-LCRRR-GGE90
ASCON DY-0024
ASCON D8-XL-100L 0-200
ASCON D3-5157-0000
ASCON C1-3007-0000
ASCON C1-3000-0200/9999
ASCON TECNOLOGIC SRL
ASCON TECNOLOGIC Z31
ASCON TECNOLOGIC Y39 Y39E
ASCON TECNOLOGIC X5
ASCON TECNOLOGIC TLZ TLZ10 TLZ11 TLZ12 TLZ35
ASCON TECNOLOGIC TLK38 TLK43 TLK94 TLK35
ASCON TECNOLOGIC R38
ASCON TECNOLOGIC M1 M3
ASCON TECNOLOGIC K38 KM1 K39 K32
100B9565AW10I ASCON Confezione da 10 pacchetti carta per RC/RS/RZ-100 * 50 divisioni * Scala 0..100
100B9901AX ASCON CASSETTA NASTRO 6 COLORI
12100134P4 ASCON 100Vcc EV 3/2 NC Filettata G1/4 di.3,0mm Corpo in Ottone Tenute NBR Eexd ATEX
238614058D ASCON 238614-058-D - Solenoid Valve 220Vac Weight: 456gr - Origin: FR - HS code: 84812090
3004999 ASCON ASCON JM3-0-0-4/999 96x48mm(1/8 DIN)Display alarm unit supply 85-264V/50Hz Option/nn
AnalOut/nn 4 Relais HS:85312020 weight:200g
400913142 ASCON 400-913-142 Bobina 24CC MXX-HT-327
758834203058 ASCON 7588.34203058 Regolatore M112 C/Manometro G 1/4"
97802702 ASCON Spare Parts for PES Cylinder S.450 FRONT-PES II D=200
97802703 ASCON SPARE PART FOR CYLINDER SERIES 450 REAR COVER PES II ID=200 CUSHIONNED/NO
CUSHIONNED
APG2SCI ASCON adattatore comunicazione seriale
AR100B9901AX ASCON AR_100B9901AX ACCESORIES REGISTR.-MOD.AR.100-B9901AX CASSETTE TAPE 6 COLOURS
ARP10079002 ASCON ROTOLO CARTA DIAGRAMM.X RP100 50DIV.LIN. SENZA INDICAZ.ORARIA
C130000000 ASCON Indicatore - regolatore dim.24x48mm ingr.univ. TC,Rdt,0/4....20ma nr.1 uscita relè a nr.1 uscita
logica 0....5Vdc per regolaz.
C150000000/2002 ASCON Regolatore dim.24x48mm ingresso config.uscita relè o log.nr.1 all.config.Alim.16...28Vac
50/60Hz e 20/30Vdc
DTC3PLDF2-04 ASCON REG.DIG.48X96 110/220VAC
DTR1PRDP1204019 ASCON sostituito da****AOX131000000******
DTR2PRDP12 ASCON REGOLA.48X96 DIGIT.USC.RELE' PD SC. 0-199°C INGR.PT100
DVR10P144 ASCON TERMOREG.ASCON DVR-1/0/P14/4
E210D002SCD2 ASCON SCE210D002 24Vcc EV 2/2 NC Filet.Rp 1/2 di.16mm Com.Ass.Memb.non Guid.C in OTTONE
E210D022SCA8 ASCON SCE210D022 230V 50Hz EV 2/2 NC Filettata Rp 1"1/2 Ø32mm Comando Assistito Membrana non
Guidata Corpo in Ottone Tenute NBR(ESD)
EB2510GA162450/13 ASCON Valvola elettrica filettata a 2 Vie + R2
EB5040GA162450/13 ASCON Valvola elettrica filettata a 2 vie + R2
EPC3065 ASCON TRASD.EPC30/65 4-20MA 0,2/1BAR
FTR2RP15 ASCON Termoregolatore Ascon FTR 2/R/p15
G2M53154000 ASCON TERMOREG. ASCON G2M53154000
G450ARSK0500A00 ASCON CILINDRO SERIE G450 ISO15552 TIRANTATO DIAM.200mm CORSA 500mm MAGNETICO
G551A001S3A8 ASCON SCG551A001MS 230V/50-60Hz ED 3/2-5/2 Monost.Namur d.6mm Allum.IP65+connet.
J130000000 ASCON Indicatore ad ingresso universale formato 96x48 orizzontale colore display rosso e verde
config.alim.aus.x trasm al.100-240Vac
J137000000 ASCON Ind.ad ingr.univ.96x48 orizz.Usc.relè/relè alim.100-240Vac
JM3000999 ASCON INDICATORE ASCON JM3000/999
JM3002/999 ASCON Indicatore usc.2 allarmi alim.100..240Vac ing.config.
JM3004/999 ASCON Indic.-Trasmett.96x48mm Protez.front IP54 ingr.config.campo scala config.alim.100...240V 50/60Hz
Switching nr.4 allarmi config.
L01SA4594000061 ASCON Elettrovalvola Numatics 4/2 1/8" 24 vdc
L22PA452OG00000 ASCON L22PA452OG00000 - Numatics-Distributore Serie L Spool & Sleeve 5/2 Comando Pneumatico
Ritorno a Molla Corpo Alluminio G1/4
M130000000 ASCON REG. 48X48 REL.RISC.+REL.ALL. ALIM.85-264V
M130000200 ASCON CONTROLLER INDICATOR 48x48 PWR. SUP. 100-240 VAC OUT RELAY
M150000000 ASCON REG.TEMP. 48x48* ALIM.24VAC/VDC * RELE' + RELE'
M231000000 ASCON M2 3100-0000 HS 90328900 1KG
M331000000 ASCON Reg.temp.48x48 alim.100-240vac TARIFFA DOGANALE: 90328900 - PAESE DI ORIGINE: ITALIA
CE -PESO NETTO CAD. : 0.40 KG
M33400000 ASCON REG.TEMP.48X48 ING.UNIV.LOUT RISC.STATICO 1RELE'ALL.ALIM.220V
M5-3-1-04-0001 ASCON Termoregolatore Ascon per attacco barra DIN
M531050000 ASCON M5-3105-0000 U=220v. P/N HS:90328900 ORIGINE:IT NET WEIGHT: 200GR
M531520000 ASCON Reg.di proc.48x48 DIN config.con protez.front.IP65 doppio display alim.100...240V 50/60Hz
Switching
M551040000 ASCON REGOL.PROC.CON SETPOINT 48X48 ALIM. 24VAC / VDC * RELE'+RELE' * RS232+UL
M631510000 ASCON Reg di proc 48x48 DIN config IP65 doppio display (misu e set) uscita di reg 0..10V isol n.3 uscita a
relè d’all. RS485 100-240
M931510000 ASCON Regol.proc.con setpoint 48x48 alim.100-240vac relè+relèrs485+IPOT
M931510000/C ASCON 1/16 DIN controller 48X48 * Supply.100-240VAC RS485+IPOT CONFIGURATED.AT AHL/0005/A
HS 90328900 500GR
M931510000CAHA ASCON Reg.di proc.48x48 DIN M93151-0000/AHA/0005/AAA AL.100-240vAC com.ser.RS485+Potenz
M931540000CAHA ASCON Reg.di proc.48x48 DIN M93154-0000/AHA/0006/AAA Alim.100-240vac
comunic.ser.Rs485+uscita continua
MS30/099 ASCON regolatore 48x48 configurabile 9999 alim.85-264Vac
MS30/1045 ASCON regolatore 48x48 conf. 1045 alim.85-264Vac
MTCAR1K1 ASCON REG.48X48 0-800° SONDA K USC.RELE' AL.110VCA
MTCDR2K4 ASCON Regolatore analog. e dig. 48x48 DIN alim.220Vac scala 0-999G
MTRAROP6 ASCON REG.ANAL.48X48 MTR-ARO/P6
Q531040000 ASCON Process controller ASCON Q5-3104-0000 1/4DIN Supply100-240Vac OP1-OP2:Relay NONE
OP6analog/dig.NONEDarkST 500g HS CODE 90328900
RIPX3010/99 regolatore Ascon 48x96 matr.9747/0724
SCE222E002LT ASCON SCE222E002LT 230/50-2/2-NC-1/2-CORPO OTTONE DIAM.16MM -DIRETTA (EPS)E/VALVOLA
IP65 CONNETT.
SCE238D005 ASCON Elettrovalvola 2/2 NC G1"
SCE238D00524DC ASCON Solenoid Valve 0.3 to 10 bar
SCG238A046 ASCON ELETTROV. 2/2 NC G 1/2" 230/50
SCG238A048 ASCON ELETTROV. 2/2 NC G 3/4" 230/50
SCG238A050 ASCON ELETTROV. 2/2 NC G 1" 230/50
SOFTWARE+CAVOCOLLE ASCON SOFTWARE + CAVO DI COLLEGAMENTO
TH1C66045 ASCON RELE STATICO
TH1S230100HRL1 ASCON Rele' statico monof.100A 230V rele' d'allarme di controllo
TH1S230130HRL1 ASCON Rele' statico monof. 100A 230V relè d'allarme di controllo
TH1S40030H ASCON UNITA' LOGICA POTENZA 30A 440V
TP10CFI0R10TSS ASCON TRASDUTTORE DI PRESSIONE ASCON ing.0-6bar usc.4-20mmA att.1/4gas
TP10CFI0R20 ASCON TP10-C/FI0/R20
TP10CFI2R20 ASCON TRASDUTTORE DI PRESSIONE ASCON
TP30C/FI0/V1 ASCON Trasdud.di pres.sens.ceramico -1..0bar att. 1/4 gas out4.20mA
TP30PFS6R20/TSS ASCON Trasm.press.4-20mA press.rel. Span 0-20Bar tarat.spec.0-16Bar
TP32PFS6R0,1 ASCON TRASM. PRES.RELAT. 0-0,1BAR FLANGIA SO
TP32PFS6R02TSS08 ASCON TP32PFS6R--02TSS08-- TRASM.PRESS.0.4-20MA MOD.C.ALL CAVO M.2 SENSORE PIEZO
MEMB.AISI 316 FLANGIA SO PRES.RELATIVA CAMPO 0...0,2B
TP32PFS6R50/T55 ASCON Trasdud.di pres. 0-30bar att.M46x1separ. in olio veg. out4.20mA
TT49LCR ASCON Timer digitale, 2 uscite 48x48 24VAC/DC hs code: 90328900 origin: IT net weight: 0.4 kg.
X131000000 ASCON Heat-Cool Temperature Controller ASCON 1/8 DIN 48x96mm Supply:100-240Vac OP1-OP2:Relay-
Relay HS CODE:90328900 O:IT 0,40KG
X131050000 ASCON TERMOREGOLATORE CONFIGURAB.DIG.ASCON
X15100000 ASCON Reg.temp.Caldo-Freddo 1/8 DIN ingr. univ. Tc, Rtd, 0/4-20mA nr.1 usc relè nr.1 usc.log.0...5V nr.2
all. a relè al.24Vac 0 24Vcc
X33105 ASCON Reg.96x48 out risc.4-20ma+ssr 3rele'all. ing.dig 2stp 90-240vac
X331050000 ASCON Reg.48/96 mm config.Ingresso univ.TC,Rtd, 0/4...20mA alim.100...240V 50/60 Hz Switching HS
90328900 1KG
X339000000 ASCON Reg.48/96 mm config. Ingr.univ.Tc,Rtd 0/4....20ma ali.100...240V 50/60Hz Switching Frontalino
color antracite
X351020000 ASCON Reg.48/96mm conf.ingr.univ.TC Rtd 0/4-20mA nr.1 usc.princ.a relè;nr.2 allarmi a relè;nr.3 ingr.dig. x
funz.di nr.2 seta point me
X53100 ASCON Reg.96x48 ingr.univ.out risc.4-20ma 4rele'all.ing dig.3stp 90-2
X531000000 ASCON Reg.DI PROCESSO 48X96 ALIM.100-240VAC RELE'+RELE' RS232 NO OPS6 ITALIANO/INGLESE
STANDARD CONF.ASCON
X53154 ASCON X5-3154 REG. 48X96 Alim. 100-240 Vac uscite:Relè-relè-relè-relè-SSR/continua comunic.seriale: RS485 +
PM Opzioni Uscita 6 Cont
X53570 ASCON Regolatore X5 3570
X551000000 ASCON X5-5100-0000 - Regol. di processo 24 Vac/Vdc OUT Relè-relè-relè-relè-SSR/continua Weight: 0.40KG
- Origin: IT - HS code: 903289
X551040000 ASCON Reg.48x96 ing.conf.out conf. usc.4.20mA reg.img 4r alim.24Vac/dc
X555010000-7440 ASCON Regolat.48x96 ingr.freq.out triac alim.24vac/dc config.7440
XC31JAA ASCON Regolatore servomotori 48x96 DIN alim.85....264 Vac Comunic.seriale con 2 allarmi
XE300ABA ASCON XE300/ABA Serie g1 - mod.XE 300/ABA Temperature regulator Weight: 400gr - Origin: IT - HS code:
90328900
XE3109 ASCON XE310/9 - Reg.di temp.48x96mm alim.100...240V 50/60hz *20 mA C.L. protocollo std
XE311/9 ASCON Reg.Multi ingresso dim.48x96 mm DIN usc.aus.Y3 Al.85-264Vac
XE500/9 ASCON Reg.Multi ingr. 48x96mm DIN Alim.24Vac/24Vdc
XE501/9 ASCON Reg.Multi Ingr. 48x96mm.DIN usc.ausil.Y3 alim.24Vac/dc da config
XF3000/99 ASCON Reg.univ. 48x96 DIN usc.conf.:discontinua,continua o per servom.alim.100.....240V 50/60 Hz
Switching
XF3110/99 ASCON REGOL. 96X48 uP MUDBUS RITR. ANAL.
XN3100/95 ASCON Termoregolatore XN 3100/95 CONT 999-999 100/240VAC
XP3000/99 ASCON Regolatore uP 48x96DIN Prot.front.IP54 ingr.conf. usc.modulante Alim.100-240V 50/60Hz Switching
XP3100/99 ASCON Reg.48x96 DIN Prot.front.IP54 Alim.100-240V 50/60Hz Switching comunic.seriale RS485
XP3110/99 ASCON Serie g1-mod.XP 3110/99 Regolatore configurabile per servomotori
XP50109999 ASCON Regol. per servomotori alim.24Vac/Vdc uscita 3 immagine
XS3000 ASCON SERIE G1*REGOLATORE MULTI INGRESSO*MULTI OUT*MULTI SET-POINT *DIM.48X96DIN*
ALIM.100/240V* CONF.1030-3300
XS3000/0000 ASCON Reg.96x48 ing pt100 out risc.4-20ma 1rele' all. alim.90-240vac
XS300099 ASCON Regol. multi-ingr.-uscita-set point(1loc.+4mem) 48x96 85..264Vca
XS300130300003 ASCON REGOLATORE ASCON XS3001-3030-0003
XS3010 ASCON TERMOREGOLATORE ASCON
XS3010/99 ASCON SERIE G1*REGOLATORE MULTI INGRESSO*MULTI OUT*MULTI SET-POINT *DIM.48X96DIN*
ALIM.100/240V* OUT IMMAGINE SET-POINT LOCALE 4 MEN*
XS3010/9942307012 ASCON TERMOREGOLATORE ASCON XS-3010/99 VAC 100/240 CON CONFIGURAZIONE 4230-
7012
XS3100/99 ASCON Reg.config.48x96 DIN usc.cont is.mA/Volt 2usc.aux.relè100-240V
XS5000/99 ASCON Regolatore Multi ingr. multi usc.multi set-point 48x96mm DIN 24V
ZB838 ASCON Zoccolo octal morsetti montaggio guida DIN entro-quadro
ZH10P040T307A59 ASCON Trasm.elettr.umid.mont.par D.stelo15mm L.40mm -30...70G 10-35Vdc
ZH30S100T100A59 ASCON Sonda umid.+temp. sonda seperata l=100mm cavo 2mt 2x4-20ma 24vdc
ZO2I500 ASCON Sonda ossigeno con elettronica integrata modello ZO2-I-500
ZTC14FC000030 ASCON Sonda Fe-Cost 4x60 att.proc.Gc Massa Cavo EES2L m1,5 AISI 316
ZTC14FC900030 ASCON Sonda termocoppia diametro 4mm lunghezza 25mm Giunto Caldo Massa Cavo EES2L mt.1,5
ZTC2NCDIS070GO50K ASCON ZTC-2NC/DIS070/GO-50-K Sonda 2K(2xCr-Al)-Dissipatore e flangia
ZTR141P090040 ASCON Sonda Pt100 -Rilievi generici con cavo ZTR-14/1P090040 -CI.T.1DIN-D.4XL.35 MM
ZTR23D1P002600 ASCON PT 100 a 3 fili tipo cilindrica att.fil.1/4"Ga M 6x300mm DIN B
ZTR23D2P ASCON PT100 doppia tipo cilind.att.filett.1/4"Gas M d.8mm L=200m DIN B
ZTR23M/2P ASCON PT100 DOPPIA 8X50 TESTA DIN-B 1/4"GAS 0-500°C
ZTR23M/2P200 ASCON PT100 DOPPIA 8X200 TESTA DIN-B 1/4"GAS 0-500°C
ZTR23M1P002100 ASCON SONDA ASCON PT100 L.100 D.6mm 1/4 GAS M.
ZTR23M1P00800 ASCON Sonda PT100 testa din lunghezza 400mm
ZTR23M6X1351/4GAS ASCON PT100 3FILI 6X135 1/4"GAS DIN-B MIGNON
ASCON TECNOLOGIC TLZ TLZ10 TLZ11 TLZ12 TLZ35
ASCON TECNOLOGIC TLK38 TLK43 TLK94 TLK35
ASCON R38
ASCON TECNOLOGIC M1 M3
ASCON TECNOLOGIC K38 KM1 K39 K32
Z31A
Digital electronic thermostat
TLZ10
Digital thermostat
TLZ11
Digital thermostat
TLZ35
DIN rail mount digital thermostat with defrost
E51A
Thermostat
W09
Wall mount thermostat
TCPDE
Analog temperature controller
Industrial controllers
KM1
Controller with independent timer
KR1
Controller with independent timer
KX1
Controller with independent timer
R38
Entry level controller
TLK31
Controller with programmable input
TLK32
Controller with programmable input
TLK38
Controller with programmable input
TLK39
Controller with programmable input
TLK41
Controller with universal input
TLK42
Temperature controller with universal input
TLK43
Temperature controller with universal input
TLK48
Controller with programmable input
TLK49
Controller with programmable input
TLK72
Controller with programmable input, 3 outputs and RS485
TLK94
Controller with universal input
TLK96
Controller with 2 outputs
C1
1/32 DIN controller, indicator, transmitter
M1
1/16 DIN controller, indicator, transmitter
M2
1/16 DIN temperature controller for hot runners
M3
1/16 DIN heat/cool temperature controller
Industrial controllers
M4
1/16 DIN Double action controller with analogue output
X1
1/8 DIN Heat/Cool temperature controller
Q1
1/4 DIN Heat/Cool temperature controller
X3
1/8 DIN Double action controller with analogue output
Q3
1/4 DIN Double action controller with analogue output
Advanced programmer controllers
AC3NP
Multifunction programmable control system
KM2
Controller, programmer with Heater Break (HB) function
KRD3
Controller, programmer with independent timer
KX6
Servomotor controller
KM3
Controller, programmer with independent timer
DETAILS
KM5
Controller programmer, with 8 programs and 96 segments
KR3
Controller, programmer with independent timer
KR5
Controller programmer, with 8 programs and 96 segments
KX3
Controller, programmer with independent timer
KX5
Controller programmer, with 8 programs and 96 segments
K30
DIN RAIL mount mini-programmer controller
K31
Mini-programmer controller
K32
Dual Display mini-programmer controller
K38
Mini-programmer controller
K39
Dual display mini-programmer controller
K48
Mini-programmer controller
K49
Dual Display mini-programmer controller
K85
DIN Rail mount mini-programmer controller
M5
1/16 DIN Process controller setpoint programmer
X5
1/8 DIN controller with PROFIBUS DP and Modbus RTU Master/Slave
Q5
1/4 DIN controller with PROFIBUS DP and Modbus RTU Master/Slave
QD
1/4 DIN Dual loop controller
QP
1/4 DIN programmer/controller with 16 programs and 255 segments
TLJ29M
Milk tank controller
TLJ35M
Milk tank controller
TLK31C
Multi-step controller, 4 outputs and RS485
K31D
Differential Controller
TLS35
Differential Controller 2 inputs and 3 outputs
W09D
Differential wall mount thermostat
Y39D
Differential Digital controller
TLK33
Controller for Peltier cells
E30V
Digital indicator, 1 NTC input - Reduced depth !
Z31V
Indicator
K31V
Indicator, 1 input, 4 outputs and RS485 port
K38V
Digital Indicator, 1 input and 2 outputs
K48V
Digital Indicator, 1 input, 3 output and RS485
K85V
4 modules DIN Rail mount indicator
X31L
Alarms and generic events Display
E51V
Indicator
TLCD 02
LCD indicators
TLCD 03
LCD indicators, battery on the front side
TVRY
Remote display
ระบบสมาชิก
DHL Express
FedEx Express
TNT Express
UPS Tracking
USPS Tracking
KERRY Express
EMS & Thailandpost Tracking
▲
▼
รายการสั่งซื้อของฉัน
รายการสั่งซื้อของฉัน
ข้อมูลร้านค้านี้
บริษัท ทีเอพี พาร์ท เอ็นจิเนียริ่ง จำกัด
บ.ทีเอพี พาร์ทฯ ก่อตั้งขึ้นเมื่อปี 2551 โดยกลุ่มวิศกรที่มีประสบการณ์ เราจำหน่าย-เป็นผู้นำเข้าสินค้าเองโดยตรงจากต่างประเทศ อาทิ เครื่องจักร อะไหล่วิศวกรรม อุปกรณ์ไฟฟ้าคอนโทรล เครื่องมือวัด และอุปกรณ์ต่างๆที่ใช้ในทุกกลุ่มอุตสาหกรรม ต่อมาด้วยประสบการณ์ต่างๆ เราสามารถขยายธุรกิจโดยการเป็นตัวแทนจำหน่าย รวมถึงบริการติดตั้งโครงการระบบควบคุมและสั่งการอุปกรณ์ไฟฟ้า
เบอร์โทร : 091-484-4332
อีเมล : info@tap-part.com
อีเมล : info@tap-part.com
ส่งข้อความติดต่อร้าน
เกี่ยวกับร้านค้านี้
ค้นหาสินค้าในร้านนี้
ค้นหาสินค้า
สินค้าที่ดูล่าสุด
บันทึกเป็นร้านโปรด
Join เป็นสมาชิกร้าน
แชร์หน้านี้
แชร์หน้านี้
↑
TOP เลื่อนขึ้นบนสุด
TOP เลื่อนขึ้นบนสุด
สินค้าในตะกร้า ({{total_num}} รายการ)
ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า
ราคาสินค้าทั้งหมด
฿ {{price_format(total_price)}}
- ฿ {{price_format(discount.price)}}
ราคาสินค้าทั้งหมด
{{total_quantity}} ชิ้น
฿ {{price_format(after_product_price)}}
ราคาไม่รวมค่าจัดส่ง
รวมภาษีมูลค่าเพิ่มแล้ว
➜ เลือกซื้อสินค้าเพิ่ม
