WEBER SENSORS 'CAPTOR'
Product of Germany
Contact us: tap.part@engineer.com
"WEBER" Sensors

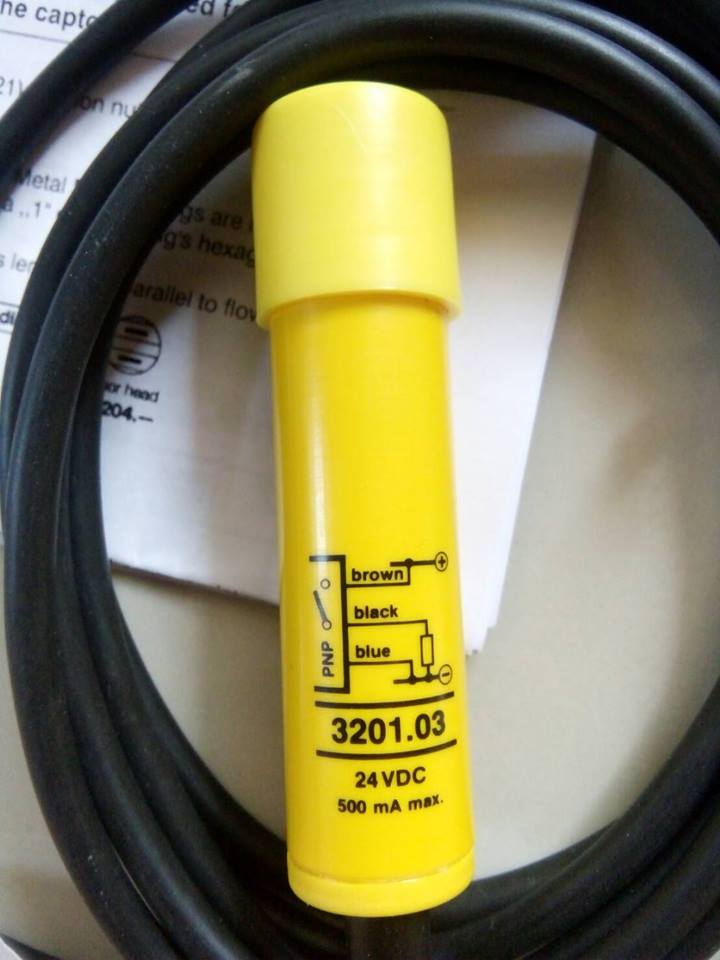

FLOW MONITOR Vent-Captor
TYPE: 3201.03 (PNP) #Germany
Product of WEBER SENSORS 'CAPTOR'
Product of Germany
Contact us: tap.part@engineer.com
Mobile: 091-484-4332

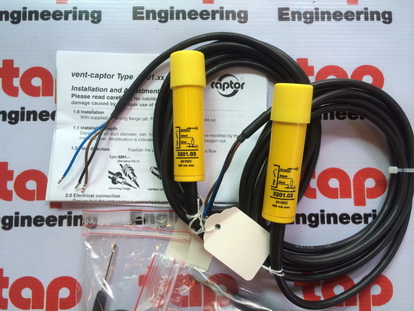

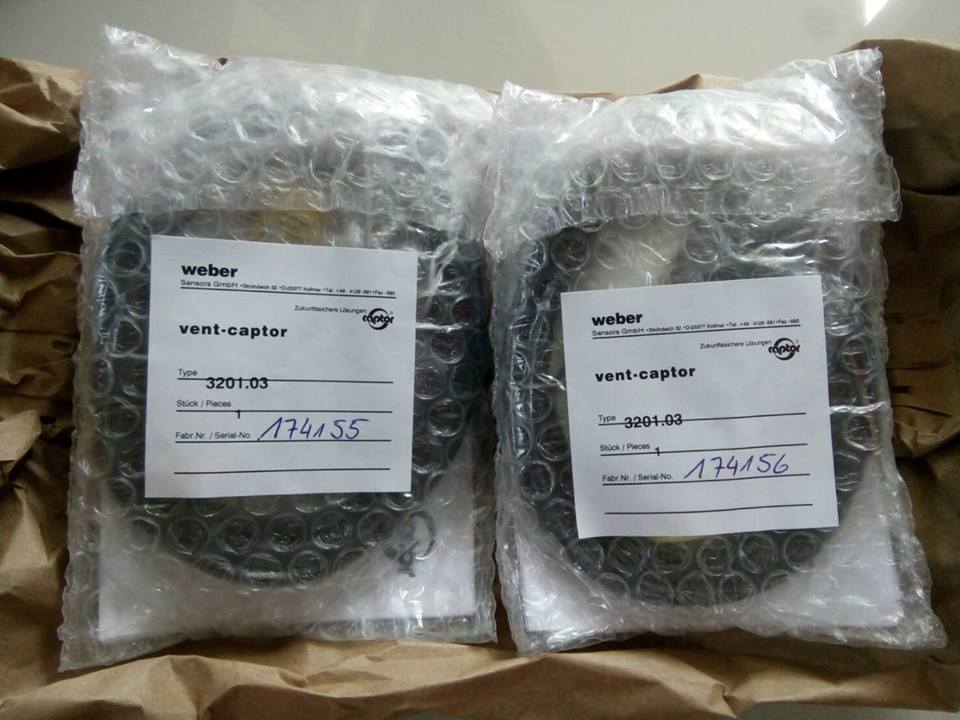

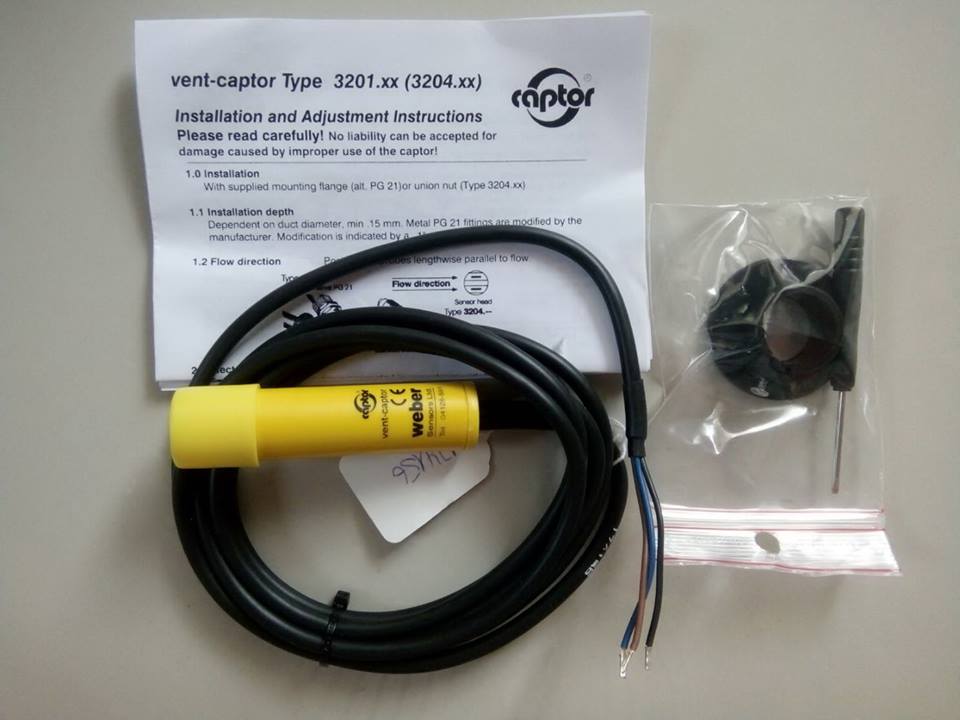

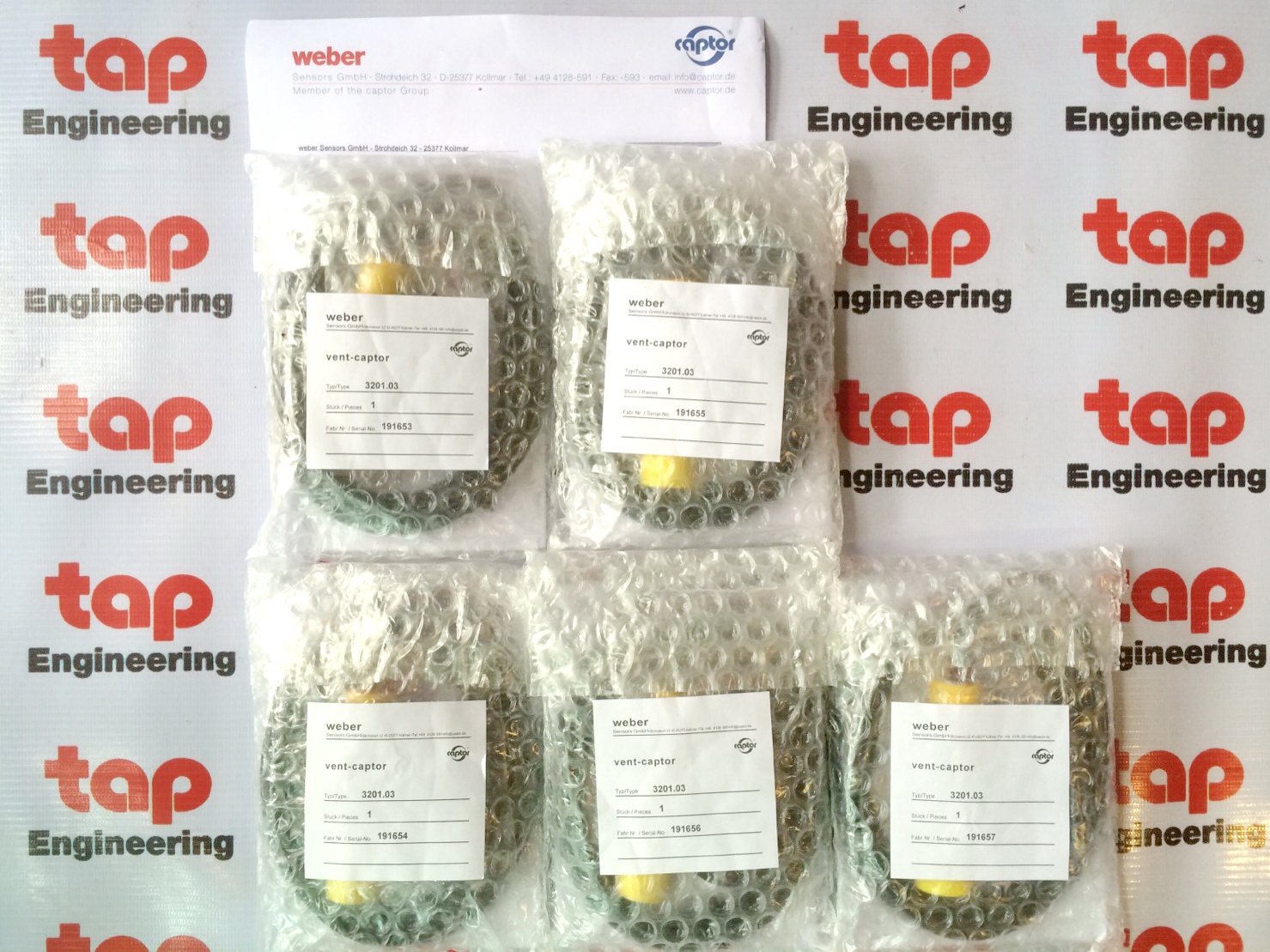

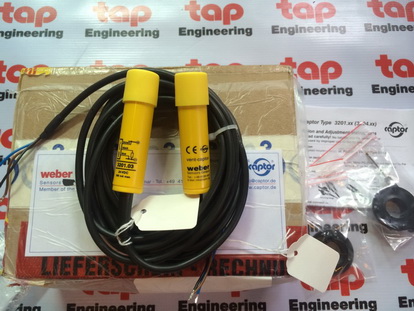

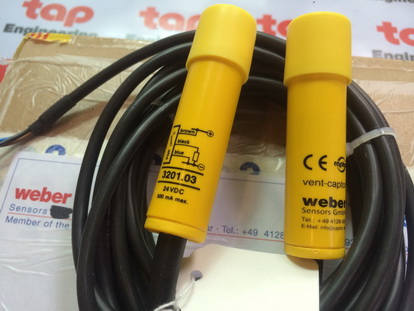

"WEBER" Sensors
FLOW MONITOR Vent-Captor
TYPE: 3201.03 (PNP) #Germany

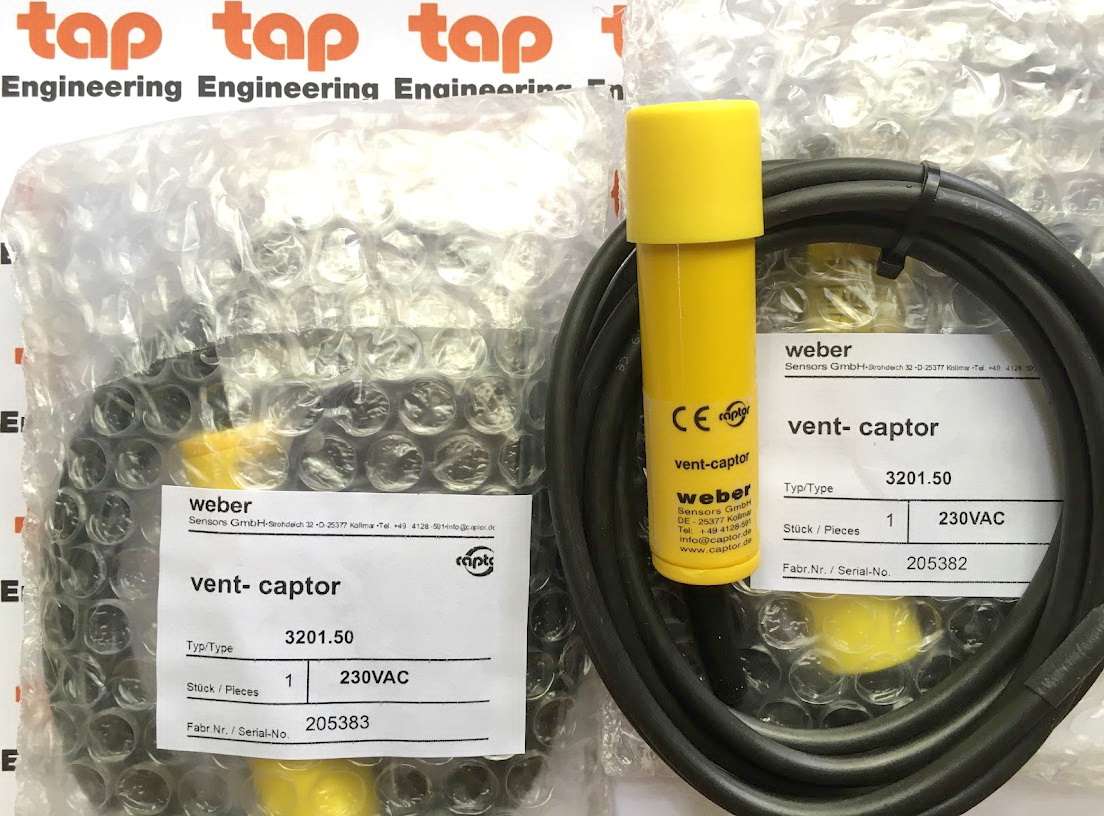

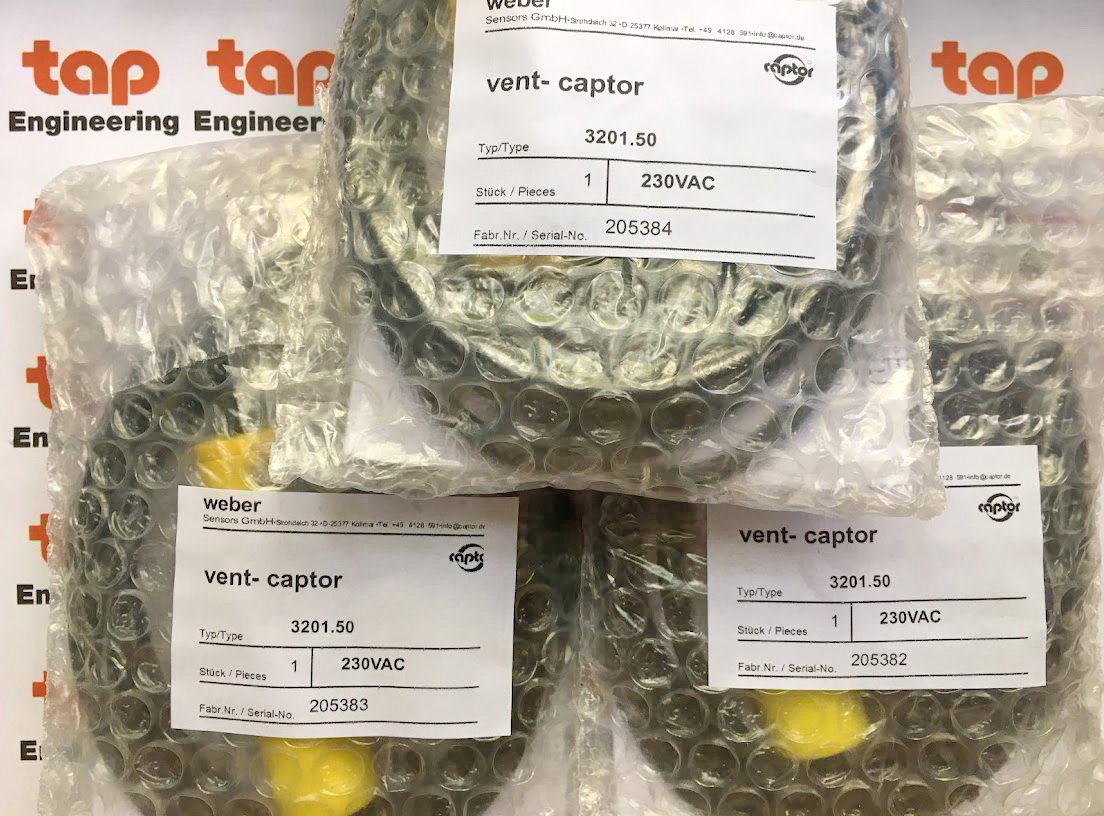

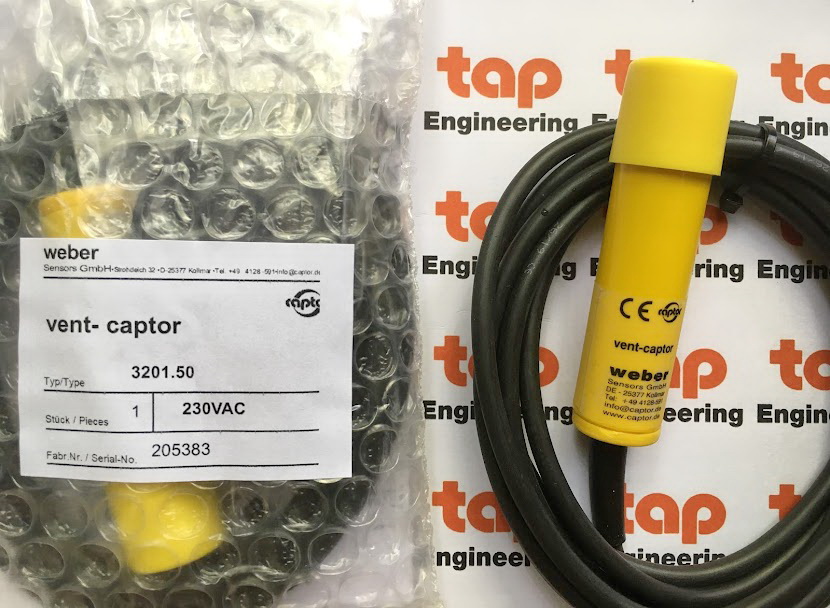

"WEBER" Sensors
FLOW MONITOR Vent-Captor
TYPE: 3201.50 230 VAC

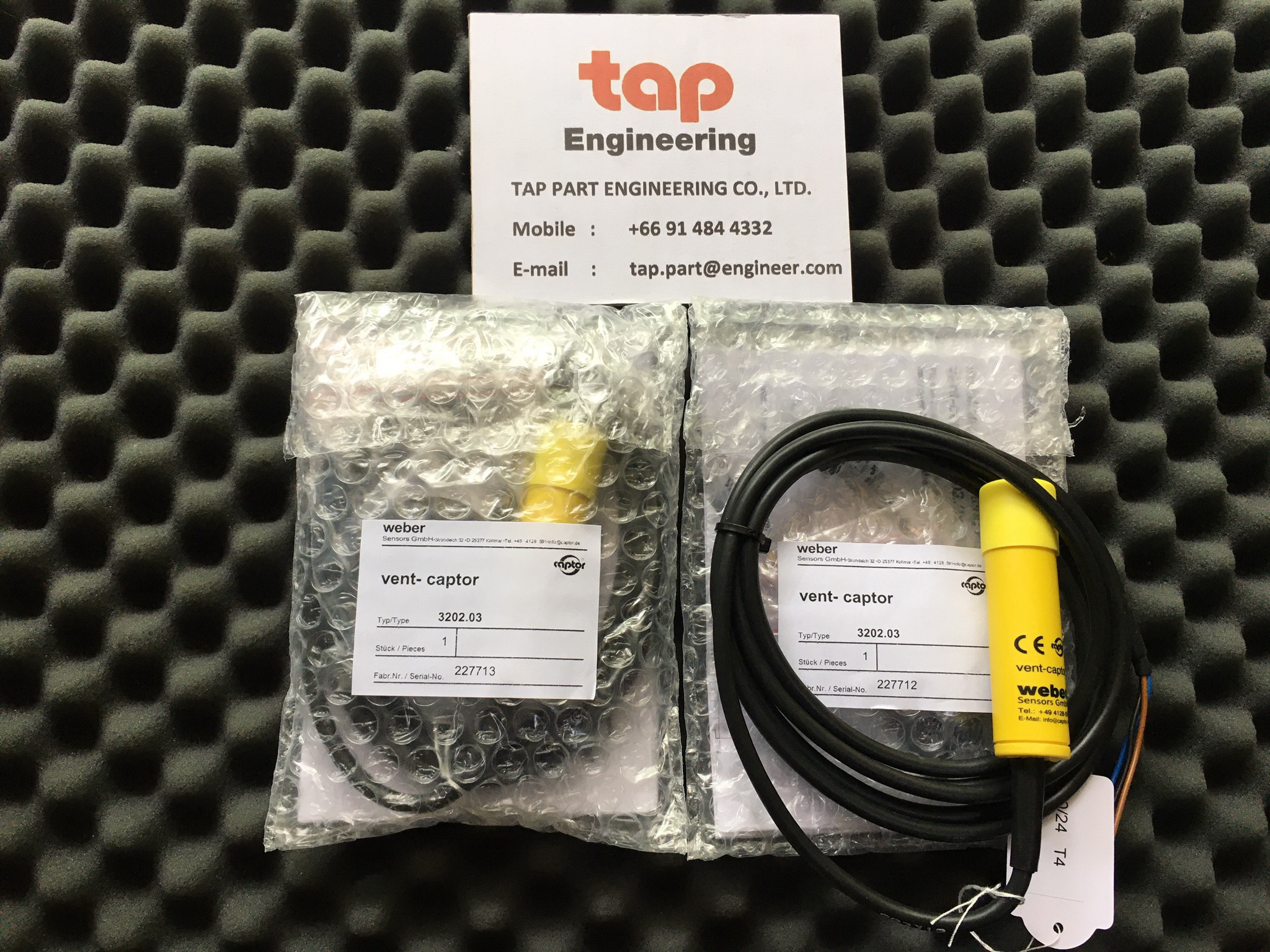

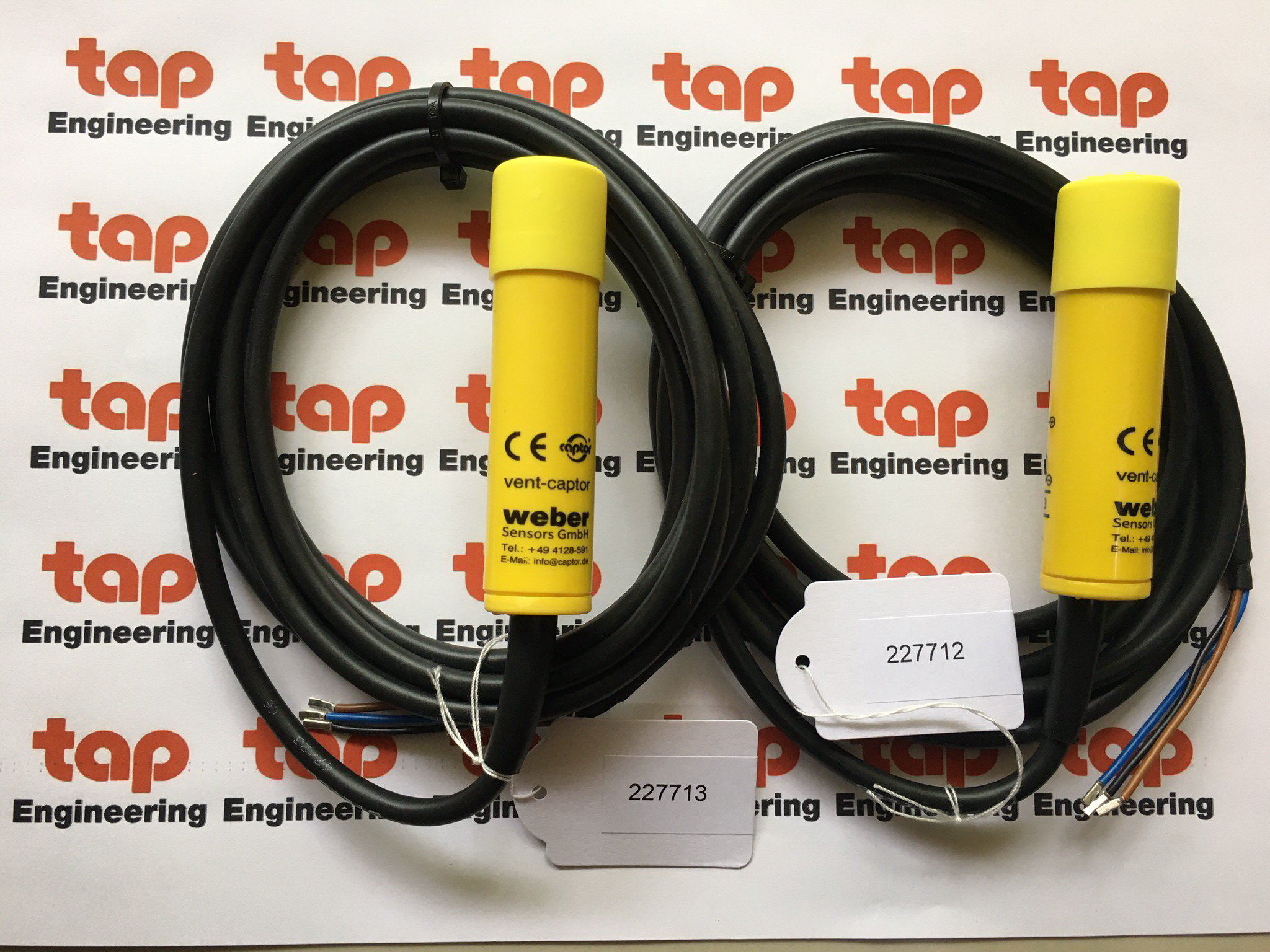

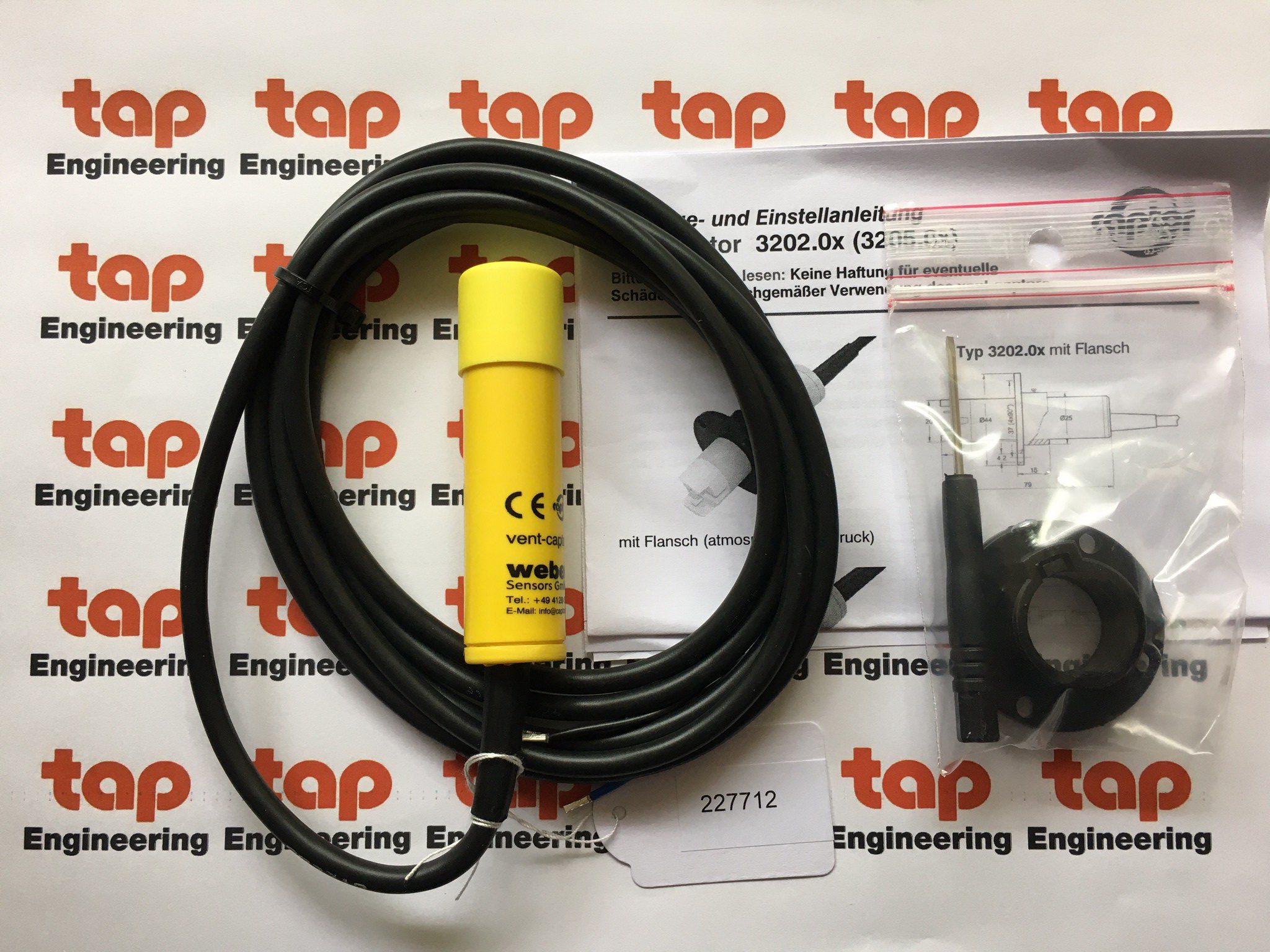

WEBER vent-captor 3202.03
Art-Nr.: 00072059
Product of WEBER SENSORS 'CAPTOR'
- 4600.30 ULTRASONIC FLOWMETERS
- 4600.30 Ultrasonic Flowmeters
- FLOW-CAPTOR 4180.13
- FLOW-CAPTOR 4220.XXF/.XXTM XX° C
- FLOW-CAPTOR 432X.8XM
- FLOW-CAPTOR 432X.73M
- FLOW-CAPTOR 432X.4XM
- FLOW-CAPTOR 4220.XXF/.XXT XX° C
- FLOW CAPTOR 4120.30 I-CAPTOR
- VENT-CAPTOR 3202.0X
ต้องการสอบถามราคา รายละเอียดสินค้า กรุณาแจ้งยี่ห้อ รุ่น จำนวน เข้ามาที่
Mobile: 091-484-4332
Email: tap.part@engineer.com
Index
Page
flow-captor (sensors for liquid media)
flow switch - insertion types
3 - 6
(412x.xx/4140.13/4114.03/4114.70/412x.xxM/422x.xxM/4220.xx)
flow switch - inline types
7 - 8
(432x1x/432x.xxM/442x.xxM)
connection cables for flow-captor
types 412x.xx/432x.xx and 412x.xxM/432x.xxM
9
flow meter - insertion types
10 - 11
(4114.30/4115.3x/4215.3x/4115.30 smx)
flow meter - inline types
12
(4311.30/4411.30)
flow and temperature meter - remote systems
13
(420x + 405x.31)
adjustment costs flow-captor
13
vent-captor (sensors for air and other gases)
flow switch - insertion and inline types
14
(3201.5x/3204.5x/3202.0x/3205.0x/3202.12/.13 S300/3302.1x)
flow meter - insertion and inline types
15
(3202.30/3205.30/3302.30)
flow meter mini vent-captor - remote system
16
(350x + 3022.30/xx)
adjustment costs vent-captor
16
connection cables for vent-captor
16
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 1 of 23
PRICE LIST 2024
Index
Page
power supply units
for flow- and vent-captor requiring 24 VDC supply
17
process input meters
conversion of analog output signals to digital values
17
mounting accessories for flow- and vent-captor units
fittings/spare parts/compression fittings/thread reducing adapter
18
foto-captor (hot metal detectors)
compact units
19
remote systems
20
accessories for foto-captor
21
proxi-captor
inductive proximity switches and meters
22-23
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 2 of 23
PRICE LIST 2024
Type
Description
Price in €
flow-captor
sensors for monitoring or measuring liquid media
412x.1x
flow switch - insertion type
standard ½" BSP or ½" NPT thread
(2 m oil flex cable type 4921 included)
4120.12
for water based media, 18 - 30 VDC, up to 0 - 300 cm/s,
461,00
sensor head stainless steel AISI 303, transistor output PNP n.c. (.12),
4120.13
for water based media, 18 - 30 VDC, up to 0 - 300 cm/s,
461,00
sensor head stainless steel AISI 303, transistor output PNP n.o. (.13),
4120.1xA 1/4"
as 4120.1x but with 1/4" sensor head (only in A: stainless steel AISI 316)
559,00
4120.1x 4 m/s
as 4120.1x but range 0 - 400 cm/s
485,00
4120.1xA
sensor head stainless steel AISI 316
533,00
4120.1xB
sensor head titanium
on request
4120.1xC
sensor head Hastelloy C4
on request
4120.1xD
sensor head Hastelloy C22
on request
4120.1xE
sensor head Monel
on request
4120.1x/S125
sensor head with non-stick coating
on request
(other coating on request)
4120.1x M12
with M12 plug and connection cable
580,00
4120.1x S101
cooling version up to 130 °C
580,00
4120.1xA S101
cooling version up to 130 °C, sensor head stainless steel AISI 316
654,00
4130.13
with factory-set measuring range 0.4 m/s, 1 m/s or 2.0 m/s
439,00
please specify when ordering
4140.13
set-point factory set to 30 cm/s, 80 cm/s or 120 cm/s
439,00
please specify when ordering
4120.1xA S110/45
634,00
4120.1xA S110/67
634,00
4120.1xA S110/90
747,00
4121.1x
for oil based media
add.
69,00
4114.xx
flow switch ø 1 ¼" / 32 mm - insertion type *
for water based media, stainless steel housing AISI 303
(with 2 m moulded oil flex cable)
4114.03
24 VDC, PNP n.o.
723,00
4114.70
24 VAC/DC, NPN n.o.
723,00
4114.xx S101
cooling version up to 100 °C medium temperature
811,00
4114.xx S110/xx
extended length
on request
4114.xxA
housing stainless steel AISI 316
774,00
4114.xxA S101
cooling version up to 100 °C medium temperature,
861,00
housing stainless steel AISI 316
* connection cables see page 9
mounting accessories see page 18
sensor head extended length 45 mm (only in A: stainless steel AISI 316)
sensor head extended length 67 mm (only in A: stainless steel AISI 316)
sensor head extended length 90 mm (only in A: stainless steel AISI 316)
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 3 of 23
PRICE LIST 2024
Type
Description
Price in €
flow switch - remote systems (sensor + electronics)
4120
sensor
4120
297,00
4120 S100
sensor with moulded 2 m silicone cable
297,00
4120 S101
sensor with moulded and shielded 2 m silicone cable with Binder-plug
322,00
4120 S103
Tri-Clamp® sensor for hygienic applications with 2 m silicone cable
546,00
for medium temperature up to 135 °C, EHEDG certified
402x.1x
electronics
4020.1x
electronics for 4120 (for water based media)
436,00
4021.1x
electronics for 4120 (for oil based media)
510,00
4020.1x S100
electronics for 4120 S100 (for water based media)
455,00
for medium temperature up to 140 °C
4021.1x S100
electronics for 4120 S100 (for oil based media)
530,00
for medium temperature up to 140 °C
4020.1x S103
electronics for 4120 S103 (for water based media), EHEDG certified
485,00
4120.1xA S11x/xx S110/xx
flow switch for Tri-Clamp® system (EHEDG certified)
for water based media in hygienic applications
sensor head stainless steel 316L electropolished
4120.1xA S113/50.5 S110/47.5
flange diameter 50.5 mm, sensor head length 47.5 mm
879,00
4120.1xA S113/50.5 S110/67
flange diameter 50.5 mm, sensor head length 67 mm
1.053,00
4120.1xA S113/64 S110/47.5
flange diameter 64 mm, housing length 47.5 mm
879,00
4120.1xA S114/50.5 S110/47.5
cooling version for medium temperature up to 130 °C
980,00
flange diameter 50.5 mm, sensor head length 47.5 mm
4120.1xA S114/50.5 S110/67
cooling version for medium temperature up to 130 °C
1.153,00
flange diameter 50.5 mm, sensor head length 67 mm
4120.1xA S114/64 S110/47.5
cooling version for medium temperature up to 130 °C
980,00
flange diameter 64 mm, housing length 47.5 mm
4220.xxF/.xxT xx °C
flow switch with temperature set-point
for water based media (including 2 m oil flex cable M12 coupling)
4220.xxF/.xxT xx °C
as 4120.xx but with temperature set-point at 50 °C, 70 °C or 80 °C
586,00
factory set (other temperature set-points on request)
* connection cables see page 9
mounting accessories see page 18
sensor with Binder-plug, cable (not included): 4920 *
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 4 of 23
PRICE LIST 2024
Type
Description
Price in €
412x.xxM
flow switch in stainless steel housing AISI 303 - insertion type
½" BSP or ½" NPT thread
(connection cable not included - has to be ordered separately)*
4120.12M
for water based media, 18 - 30 VDC, M12 coupling, cable: 4940 *
534,00
sensor head stainless steel AISI 303, transistor output PNP n.c. (.12)
4120.13M
for water based media, 18 - 30 VDC, M12 coupling, cable: 4940 *
534,00
sensor head stainless steel AISI 303, transistor output PNP n.o. (.13)
4120.40M
18 - 30 VDC, relay output (activated), including 2 m moulded cable
622,00
4120.41M
18 - 30 VDC, relay output (not activated), including 2 m moulded cable
622,00
4120.42M
18 - 30 VDC, optocoupler output, n.c., cable: 4941 *
622,00
4120.43M
18 - 30 VDC, optocoupler output, n.o., cable: 4941 *
622,00
4120.52M
90 - 250 VAC/DC, solid state relay output, n.c., including 2 m moulded cable
659,00
4120.53M
90 - 250 VAC/DC, solid state relay output, n.o., including 2 m moulded cable
659,00
4120.80M
90 - 250 VAC, relay output (activated), including 2 m moulded cable
720,00
4120.81M
90 - 250 VAC, relay output (not activated), including 2 m moulded cable
720,00
4121.xxM
for oil based media
add.
69,00
special versions
4120.xxM 10.5 - 36 VDC
operating voltage: 10.5 - 36 VDC
add.
111,00
4120.xxM 19 - 72 VDC
operating voltage: 19 - 72 VDC
add.
111,00
4120.xxM S140
Brad-Harrison plug, cable: 4930E / 4931E *
add.
24,00
4120.xxM S141
Binder plug, cable: 4922 / 4923 / 4924 / 4925 *
add.
24,00
4120.xxM S142
UV-protected cable
add.
71,00
4120.xxMA
sensor head stainless steel AISI 316
add.
61,00
4120.xxMB
sensor head Titanium
on request
4120.xxMC
sensor head Hastelloy C4
on request
4120.xxMD
sensor head Hastelloy C22
on request
4120.xxME
sensor head Monel
on request
4120.xxMK
sensor head with heat sink, up to 130 °C medium temperature
add.
119,00
4120.xxMA S110/45
sensor head length 45 mm, stainless steel AISI 316
add.
182,00
4120.xxMA S110/67
sensor head length 67 mm, stainless steel AISI 316
add.
182,00
4120.xxMA S110/90
sensor head length 90 mm, stainless steel AISI 316
add.
292,00
4121.xxM
for oil based media
add.
69,00
* connection cables see page 9
mounting accessories see page 18
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 5 of 23
PRICE LIST 2024
Type
Description
Price in €
4120.1xMA S11x/xx S110/xx
flow switch for Tri-Clamp® system in stainless steel housing (EHEDG certified)
for water based media in the food industry
sensor head stainless steel 316L electropolished
4120.1xMA S113/50.5 S110/47.5
flange diameter 50.5 mm, sensor head length 47.5 mm
954,00
4120.1xMA S113/50.5 S110/67
flange diameter 50.5 mm, sensor head length 67 mm
1.129,00
4120.1xMA S113/64 S110/47.5
flange diameter 64 mm, sensor head length 47.5 mm
954,00
4120.1xMA S114/50.5 S110/47.5
cooling version for medium temperature up to 130 °C
1.054,00
flange diameter 50.5 mm, sensor head length 47.5 mm
4120.1xMA S114/50.5 S110/67
cooling version for medium temperature up to 130 °C
1.227,00
flange diameter 50.5 mm, sensor head length 67 mm
4120.1xMA S114/64 S110/47.5
cooling version for medium temperature up to 130 °C
1.054,00
flange diameter 64 mm, housing length 47.5 mm
422x.xxM
flow switch in stainless steel housing with additional temperature output
-10 °C up to +80 °C = 4 - 20 mA (other temperature range on request)
4220.xxM
for water based media
4220.12M
18 - 30 VDC, transistor output PNP n.c., M12 coupling, cable: 4941 *
633,00
4220.13M
18 - 30 VDC, transistor output PNP n.o., M12 coupling, cable: 4941 *
633,00
4220.40M
18 - 30 VDC, relay output (activated), including 2 m moulded cable
719,00
4220.41M
18 - 30 VDC, relay output (not activated), including 2 m moulded cable
719,00
4220.52M
90 - 250 VAC/DC, solid state relay output, n.c., including 2 m moulded cable
758,00
4220.53M
90 - 250 VAC/DC, solid state relay output, n.o., including 2 m moulded cable
758,00
4220.80M
90 - 250 VAC, relay output (activated), including 2 m moulded cable
819,00
4220.81M
90 - 250 VAC, relay output (not activated), including 2 m moulded cable
819,00
4221.xxM
for oil based media
add.
69,00
4220.xxF/.xxTM xx°C
flow switch with temperature set-point
for water based media
4220.xxF/.xxTM xx °C
as 4120.xxM but with temperature set-point at 50 °C, 70 °C or 80 °C
720,00
factory set (other temperature set-points on request), cable: 4941 *
* connection cables see page 9
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 6 of 23
PRICE LIST 2024
Type
Description
Price in €
432x.1x
flow switch - inline type
for small pipe sizes from OD6 up to OD28
(2 m connection cable type 4921 included)
4320.12/xx
for water based media, 18 - 30 VDC, transistor output PNP n.c. (.12)
4320.13/xx
for water based media, 18 - 30 VDC, transistor output PNP n.o. (.13)
4320.1x/6
sensor pipe 6 x 1 mm
576,00
4320.1x/8
sensor pipe 8 x 1 mm
576,00
4320.1x/12
sensor pipe 12 x 1 mm
597,00
4320.1x/18
sensor pipe 18 x 1.5 mm
609,00
4320.1x/22
sensor pipe 22 x 1.5 mm
658,00
4320.1x/28
sensor pipe 28 x 1.5 mm
708,00
4320.1xB/xx
sensor pipe Titanium (AISI 3.7035 Grade 2)
on request
4320.1xC/xx
sensor pipe Hastelloy C4 (AISI 2.4610)
on request
4320.1x/xx S100
sensor pipe with vertical orientation
add.
34,00
4320.1x/xx S104
higher pressure
on request
4320.1x/xx S107
cooling version for medium temperature up to 130 °C
add.
135,00
4320.1x/xx M12
with M12-plug and 2 m connection cable
add.
123,00
4321.1x/xx
for oil based media
add.
69,00
flow switch - remote system (sensor and electronics)
4320
sensor (included 2 m connection cable)
4320/6
sensor pipe 6 x 1 mm
311,00
4320/8
sensor pipe 8 x 1 mm
311,00
4320/12
sensor pipe 12 x 1 mm
322,00
4320/18
sensor pipe 18 x 1.5 mm
322,00
4320/22
sensor pipe 22 x 1.5 mm
346,00
4320/28
sensor pipe 28 x 1.5 mm
372,00
4320/xx S202
on request
(for electronics 402x.1x S202)
402x.1x
electronics
4020.1x S200
standard for 4320/xx
408,00
4021.1x S200
as above, but for oil based medium
484,00
402x.1x S202
on request
All inline tubes are made of stainless steel AISI 316.
other cable lengths see page 9
cooling version for medium temperature up to 135 °C
for senosr 4320/xx S202
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 7 of 23
PRICE LIST 2024
Type
Description
Price in €
432x.xxM/xx
flow switch in stainless steel housing AISI 316 - inline version
for small pipe sizes from OD6 up to OD28
(connection cable not included - please order separately)*
4320.12M/xx
for water based media, 18 - 30 VDC, transistor output PNP n.c. (.12)
4320.13M/xx
for water based media, 18 - 30 VDC, transistor output PNP n.o. (.13)
4320.1xM/6
sensor pipe 6 x 1 mm, M12, 4-pin, cable: 4940 *
691,00
4320.1xM/8
sensor pipe 8 x 1 mm, M12, 4-pin, cable: 4940 *
691,00
4320.1xM/12
sensor pipe 12 x 1 mm, M12, 4-pin, cable: 4940 *
708,00
4320.1xM/18
sensor pipe 18 x 1.5 mm, M12, 4-pin, cable: 4940 *
723,00
4320.1xM/22
sensor pipe 22x 1.5 mm, M12, 4-pin, cable: 4940 *
782,00
4320.1xM/28
sensor pipe 28 x 1.5 mm, M12, 4-pin, cable: 4940 *
844,00
4320.40M/xx
18 - 30 VDC, relay output (activated), including 2 m moulded cable
on request
4320.41M/xx
18 - 30 VDC, relay output (not activated), including 2 m moulded cable
on request
4320.80M/xx
90 - 250 VAC, relay output (activated), including 2 m moulded cable
on request
4320.81M/xx
90 - 250 VAC, relay output (not activated), including 2 m moulded cable
on request
4320.xxMB/xx
sensor pipe Titanium (AISI 3.7035 Grade 2), M12, 4-pin, cable: 4940 *
on request
4320.xxMC/xx
sensor pipe Hastelloy C4 (AISI 2.4610), M12, 4-pin, cable: 4940 *
on request
4320.1xM/xx 10.5 - 36 VDC
operating voltage 10.5 - 36 VDC, M12, 4-pin, cable: 4940 *
add.
80,00
4320.1xM/xx 19 - 72 VDC
operating voltage 19 - 72 VDC, M12, 4-pin, cable: 4940 *
add.
80,00
4320.xxM/xx S140
Brad-Harrison plug, cable: 4930E / 4931E *
add.
24,00
4320.xxM/xx S141
Binder plug, cable: 4922 / 4923 / 4924 / 4925 *
add.
24,00
4320.xxMK/xx
sensor head with cooling housing, up to 130 °C medium temperature,
add.
140,00
cable: 4940 *
4321.1xM/xx
for oil based media
add.
69,00
442x.xxM/xx
flow switch in stainless steel housing AISI 316 - inline version
with additional temperature output
(connection cable not included - please order separately)*
4420.xxM/xx
for water based media, as 4320.xxM/xx
add.
110,00
but with analog temperature output
4421.xxM/xx
for oil based media
add.
69,00
All inline tubes are made of stainless steel AISI 316.
* connection cables see page 9
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 8 of 23
PRICE LIST 2024
Type
Description
Price in €
connection cables for 412x.xx/432x.xx
4921 / 2m
standard oil flex cable, coupling/open wires
37,00
(included in delivery without additional costs)
4921H / 2 m
halogen-free cable, coupling/open wires
47,00
4921S / 2 m
silicone cable, coupling/open wires
58,00
4920 / 2 m
PVC-P cable 2 x 0.5 mm² shielded, Binder-coupling/open wires
98,00
4940 / 2 m
connection cable 3 x 0.34, M12, 4-pin, coupling/open wires
49,00
for 4120.xx with M12 plug
other lengths
5 m, 10 m, 15 m and 20 m
oil flex cable per meter
add.
3,00
halogen-free cable per meter
add.
20,00
silicone cable per meter
add.
27,00
connection cables for 412x.xxM/432x.xxM
4922 / 2 m
oil flex cable 4 x 0.5, 4-pin binder-coupling/open wire for S141
84,00
4922 / 5 m
oil flex cable 4 x 0.5, 4-pin binder-coupling/open wire for S141
97,00
4922 / 10 m
oil flex cable 4 x 0.5, 4-pin binder-coupling/open wire for S141
119,00
4923 / 2 m
oil flex cable 6 x 0.5, 6-pin binder-coupling/open wire for S141
122,00
4923 / 5 m
oil flex cable 6 x 0.5, 6-pin binder-coupling/open wire for S141
138,00
4923 / 10 m
oil flex cable 6 x 0.5, 6-pin binder-coupling/open wire for S141
151,00
4924 / 2 m
oil flex cable 5 x 0.5, 5-pin binder-coupling/open wire for S141
101,00
4924 / 5 m
oil flex cable 5 x 0.5, 5-pin binder-coupling/open wire for S141
125,00
4924 / 10 m
oil flex cable 5 x 0.5, 5-pin binder-coupling/open wire for S141
162,00
4925 / 2 m
oil flex cable 7 x 0.5, 7-pin binder-coupling/open wire for S141
125,00
4925 / 5 m
oil flex cable 7 x 0.5, 7-pin binder-coupling/open wire for S141
165,00
4925 / 10 m
oil flex cable 7 x 0.5, 7-pin binder-coupling/open wire for S141
189,00
4930E / 2 m
oil flex cable 5 x 0.5, 5-pin Brad-Harrison-coupling/open wire for S140 / euronorm
63,00
4930E / 5 m
oil flex cable 5 x 0.5, 5-pin Brad-Harrison-coupling/open wire for S140 / euronorm
76,00
4930E / 10 m
oil flex cable 5 x 0.5, 5-pin Brad-Harrison-coupling/open wire for S140 / euronorm
113,00
4931E / 2 m
oil flex cable 4 x 0.5, 4-pin Brad-Harrison-coupling/open wire for S140 / euronorm
49,00
4931E / 5 m
oil flex cable 4 x 0.5, 4-pin Brad-Harrison-coupling/open wire for S140 / euronorm
76,00
4931E / 10 m
oil flex cable 4 x 0.5, 4-pin Brad-Harrison-coupling/open wire for S140 / euronorm
113,00
4940 / 2 m
PUR cable 3 x 0.34, 4-pin, M12 coupling/open wire
49,00
4940 / 5 m
PUR cable 3 x 0.34, 4-pin, M12 coupling/open wire
76,00
4940 / 10 m
PUR cable 3 x 0.34, 4-pin, M12 coupling/open wire
101,00
4941 / 2 m
oil flex cable 4 x 0.5, 4-pin, M12 coupling/open wire
49,00
4941 / 5 m
oil flex cable 4 x 0.5, 4-pin, M12 coupling/open wire
76,00
4941 / 10 m
oil flex cable 4 x 0.5, 4-pin, M12 coupling/open wire
101,00
4942 / 2 m
oil flex cable 5 x 0.5, 5-pin, M12 coupling/open wire
49,00
4942 / 5 m
oil flex cable 5 x 0.5, 5-pin, M12 coupling/open wire
76,00
4942 / 10 m
oil flex cable 5 x 0.5, 5-pin, M12 coupling/open wire
101,00
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 9 of 23
PRICE LIST 2024
Type
Description
Price in €
4114.30
flow meter ø 1¼" / 32 mm - insertion type *
stainless steel housing AISI 303 (with 2 m moulded oil flex cable)
4114.30
standard type, analogue current output 4 - 20 mA, range: 0 - 2 m/s,
776,00
for water based media
4114.30/3 m/s
range: 0 - 3 m/s
849,00
4114.30 S101
cooling version up to 100 °C medium temperature
966,00
4114.30A
housing stainless steel AISI 316
870,00
4114.30A S101
cooling version up to 100 °C medium temperature,
1.067,00
housing stainless steel AISI 316
4115.30
flow meter ø 1" / 25 mm - insertion type *
stainless steel housing AISI 303 (with 2 m moulded oil flex cable)
4115.30
standard type, current output 4 - 20 mA, range: 0 - 2 m/s
776,00
for water based media
4115.30/3 m/s
range: 0 - 3 m/s
847,00
4115.30/4 m/s
range: 0 - 4 m/s
862,00
4115.30 S101
cooling version up to 100 °C medium temperature
945,00
4115.30A
housing and sensor head stainless steel AISI 316
887,00
4115.30A S101
cooling version up to 100 °C medium temperature,
1.049,00
housing and sensor head stainless steel AISI 316
4115.30/3
sensor head with non-stick coating
on request
4115.30 S110/xx
extended length
on request
4115.30B S127
sensor head and housing Titanium, laser welded, see water restistant
on request
4115.30E
sensor head and housing Monel 400
on request
4115 S101 + 4015.30 S101
remote system, cooling version up to 135 °C medium temperature
1.356,00
4115 S103 + 4015.30 S103
remote system, Tri-Clamp® cooling version up to 135 °C medium temperature
2.207,00
sensor head AISI 316L electropolished, EHEDG certified
4115.30 S115/2
for oil based media, standard type, range: 0 - 2 m/s
852,00
4115.30 S101 S115/2
for oil based media, cooling version up to 100 °C medium temperature,
1.019,00
range: 0 - 2 m/s
4115.31
voltage output 0.1 - 10 V
807,00
4215.30
flow meter ø 1" / 25 mm - insertion type *
with additional temperature output
4215.30
as 4115.30 but with additional temperature output
909,00
* set-point or range adjustment on request, prices see page 13
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 10 of 23
PRICE LIST 2024
Type
Description
Price in €
smart meter 4115.30
flow meter for pipes up to DN 600 (24") - insertion type *
for water based media, with 1½" fitting BSP or NPT
in stainless steel housing AISI 316
(with 2 m moulded oil flex-cable)
4115.30 sm3
range 0 - 100 cm/s, max. insertion depth 94 mm
1.034,00
4115.30 sm4
range 0 - 200 cm/s, max. insertion depth 94 mm
1.034,00
4115.30 sm5
range 0 - 300 cm/s, max. insertion depth 94 mm
1.120,00
4115.30 sm6
range 0 - 400 cm/s, max. insertion depth 94 mm
1.133,00
4115.30 sm3/261
extended design, range 0 - 100 cm/s, max. insertion depth 212 mm
1.389,00
4115.30 sm4/261
extended design, range 0 - 200 cm/s, max. insertion depth 212 mm
1.389,00
4115.30 sm5/261
extended design, range 0 - 300 cm/s, max. insertion depth 212 mm
1.476,00
4115.30 sm6/261
extended design, range 0 - 400 cm/s, max. insertion depth 212 mm
1.488,00
4115.30 sm3/400
extended design, range 0 - 100 cm/s, max. insertion depth 351 mm
1.931,00
4115.30 sm4/400
extended design, range 0 - 200 cm/s, max. insertion depth 351 mm
1.931,00
4115.30 sm5/400
extended design, range 0 - 300 cm/s, max. insertion depth 351 mm
2.017,00
4115.30 sm6/400
extended design, range 0 - 400 cm/s, max. insertion depth 351 mm
2.030,00
4115.30 smx
different range adjustment
on request
4115.30 smx S115
for oil based media
add.
69,00
smart meter 4215.30
flow meter for pipes up to DN 600 (24") - insertion type *
with additional temperature output
4215.30 smx
as 4115.30 smx but with additional temperature output
add.
134,00
-10 °C up to +80 °C = 4 - 20 mA
* range adjustment on request, prices see page 13
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 11 of 23
PRICE LIST 2024
Type
Description
Price in €
4311.30/xx
flow meter for water based media - inline version *
for small pipe sizes from OD6 up to OD28, range 0 - 100 cm/s
(with 2 m moulded oil flex cable)
4311.30/8
sensor pipe 8 x 1 mm
740,00
4311.30/12
sensor pipe 12 x 1 mm
776,00
4311.30/18
sensor pipe 18 x 1.5 mm
797,00
4311.30/22
sensor pipe 22 x 1.5 mm
855,00
4311.30/28
sensor pipe 28 x 1.5 mm
896,00
4311.30/xx S100
cooling version up to 100 °C medium temperature
add.
147,00
4311.30/xx S104
range: 0 - 200 cm/s (with 6 mm pipe diameter 0 - 160 cm/s)
add.
91,00
4311.30/xx S124/x
for oil based media, range must be specified
add.
69,00
Attention: Type 4311.30/6 only with 1 m/s available!
4311.30B/xx
sensor pipe Titanium
on request
4311.30C/xx
sensor pipe Hastelloy C4
on request
4311.30M/8
sensor pipe 8 x 1 mm, housing stainless steel AISI 316
909,00
4311.30M/12
sensor pipe 12 x 1 mm, housing stainless steel AISI 316
922,00
4311.30M/18
sensor pipe 18 x 1.5 mm, housing stainless steel AISI 316
947,00
4411.30
flow meter with additional temperature output - inline version *
4411.30/xx
as 4311.30 but with additional temperature output
add.
110,00
-10 °C up to +80 °C = 4 - 20 mA
All inline tubes are made of stainless steel AISI 316.
* range adjustment on request, prices see page 13
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 12 of 23
PRICE LIST 2024
Type
Description
Price in €
flow and temperature meter - remote systems
4204
digital flow and temperature sensor, stainless steel AISI 303, ¾" BSP thread
4205
digital flow and temperature sensor, stainless steel AISI 303, cone form
4054.31
evaluation electronics for flow-captor 4204 or 4205
for water based media
outputs for flow and temperature each with 0 - 10 V
medium temperature range from -25 °C up to +100 °C
fixed flow measuring range 0 - 100 cm/s (related to water)
flow curve not linearized
4053.31
evaluation electronics for flow-captor 4204 or 4205
for oil based media
outputs for flow and temperature each with 0 - 10 V
mMedium temperature range from -25 °C up to +100 °C
fixed flow measuring range 0 - 400 cm/s (related to oil Shell Diala S4 ZX-I)
flow curve not linearized
4204 + 4054.31
system price
2.091,00
4204 + 4053.31
system price
2.091,00
4205 + 4053.31
system price
2.091,00
4205 + 4053.31 S105
output and supply voltage through AMP plug
system price
2.091,00
4205 + 4053.31 S351
with potentiometer for fine adjustment
system price
2.153,00
4935
2 m connection cable with Cannon female plug
on request
adjustment costs for flow-captor
flow-captor switching and metering units can be adjusted
under our test pipe conditions to the customer's specification.
set-point adjustment
for flow-captor switch
net
45,00
range adjustment
for flow-captor meter
net
57,00
range adjustment and curve Ia=f(v)
for flow-captor meter
net
87,00
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 13 of 23
PRICE LIST 2024
Type
Description
Price in €

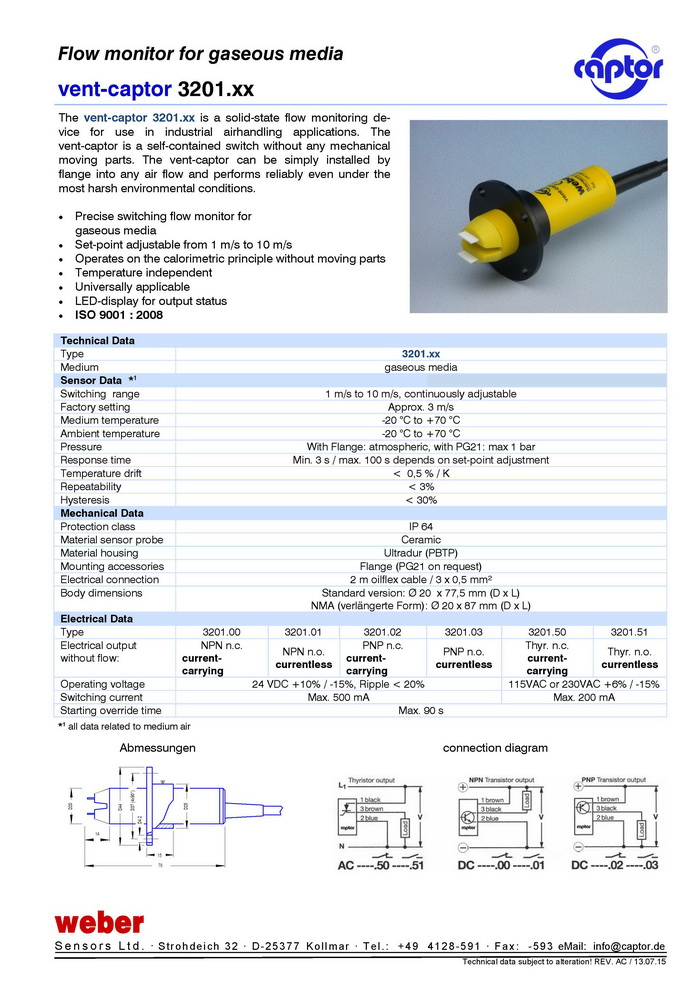

vent-captor
sensors for air and other gases
3201.5x
air flow switch with thyristor output - insertion type*
with 2 m moulded oil flex cable
3201.50
thyristor output n.c., 115 VAC or 230 VAC
262,00
3201.51
thyristor output n.o., 115 VAC or 230 VAC
262,00
3201.50 NMA
extended design
297,00
3201.51 NMA
extended design
297,00
3204.50
as 3201.50 but stainless steel housing AISI 303, max. 10 bar
406,00
3204.51
as 3201.51 but stainless steel housing AISI 303, max. 10 bar
406,00
3202.0x
air flow switch with transistor output - insertion type*
with 2 m moulded oil flex cable
3202.00
transistor output NPN n.c., 24 VDC
299,00
3202.01
transistor output NPN n.o., 24 VDC
299,00
3202.02
transistor output PNP n.c., 24 VDC
299,00
3202.03
transistor output PNP n.o., 24 VDC
299,00
3202.0x NMA
24 VDC, extended design
330,00
3202.0x S102
upper set-point: 3 m/s (factory set)
381,00
3202.0x S104
upper set-point: 3 m/s, with halogen-free cable
410,00
3202.0x S123
Burn-In, medium temperature -40 °C up to +70 °C, with 2 m halogen-free cable
425,00
3205.0x
air flow switch with transistor output - insertion type*
in stainless steel housing AISI 303
with 2 m moulded oil flex cable
3205.00
transistor output NPN n.c., 24 VDC
404,00
3205.01
transistor output NPN n.o., 24 VDC
404,00
3205.02
transistor output PNP n.c., 24 VDC
404,00
3205.03
transistor output PNP n.o., 24 VDC
404,00
3205.0x NMA
24 VDC, extended design
437,00
3205.0x S102
cooling version up to 100 °C medium temperature, 10 bar
690,00
3202.12/.13 S300
air flow switch with two switching points - insertion type*
(connection cable not included - please order separately)**
3202.12/.13 S300
2 adjustable switching points (.12/.13), cable: 4941**
575,00
3302.1x/xx
air flow switch - inline version *
pressure resistant up to 10 bar
with 2 m moulded oil flex cable
sensor pipe dimension in mm
12 x 1 / 18 x 1.5 / 22 x 1.5 / 28 x 1.5
on request
measuring range: 0.5 - 20 m/s
* prices for switching point adjustment see page 16
** connection cables see page 16
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 14 of 23
PRICE LIST 2024
Type
Description
Price in €
3202.30/xx
air flow meter - insertion type*
24 VDC, output 4 - 20 mA with 2 m moulded oil flex cable
3202.30/5
measuring range 0 - 5 m/s
495,00
3202.30/10
measuring range 0 - 10 m/s
495,00
3202.30/20
measuring range 0 - 20 m/s
495,00
3202.30/30
measuring range 0 - 30 m/s
495,00
3202.30/40
measuring range 0 - 40 m/s
564,00
3202.30/50
measuring range 0 - 50 m/s
587,00
3202.31/xx
voltage output 0,1 - 10 V
add.
34,00
3205.30/xx
air flow meter in stainless steel housing AISI 303 - insertion type*
24 VDC, output 4 - 20 mA with 2 m moulded oil flex cable
3205.30/5
measuring range 0 - 5 m/s
595,00
3205.30/10
measuring range 0 - 10 m/s
595,00
3205.30/20
measuring range 0 - 20 m/s
595,00
3205.30/30
measuring range 0 - 30 m/s
595,00
3205.30/40
measuring range 0 - 40 m/s
663,00
3205.30/50
measuring range 0 - 50 m/s
687,00
3205.30/5 S102
cooling version up to 100 °C medium temperature, max. 10 bar
885,00
3205.30/10 S102
cooling version up to 100 °C medium temperature, max. 10 bar
885,00
3205.30/20 S102
cooling version up to 100 °C medium temperature, max. 10 bar
885,00
3205.30/30 S102
cooling version up to 100 °C medium temperature, max. 10 bar
885,00
3205.30/40 S102
cooling version up to 100 °C medium temperature, max. 10 bar
953,00
3205.30/50 S102
cooling version up to 100 °C medium temperature, max. 10 bar
977,00
3205.30/5 S134 with 3 m cable
with positioning slot and 3 m moulded oil flex cable
741,00
3205.30/10 S134 with 3 m cable
with positioning slot and 3 m moulded oil flex cable
741,00
3205.30/20 S134 with 3 m cable
with positioning slot and 3 m moulded oil flex cable
741,00
3205.30/30 S134 with 3 m cable
with positioning slot and 3 m moulded oil flex cable
741,00
3205.30/40 S134 with 3 m cable
with positioning slot and 3 m moulded oil flex cable
806,00
3205.30/50 S134 with 3 m cable
with positioning slot and 3 m moulded oil flex cable
829,00
3205.30/xx S115/xx
longer housing
on request
3205 + 3002.30/xx
remote system for higher medium temperature (150 °C, 180 °C, 205 °C)
on request
3302.30/xx/xx
air flow meter - inline version *
pressure resistant up to 10 bar
with 2 m moulded oil flex cable
sensor pipe dimension in mm
12 x 1 / 18 x 1.5 / 22 x 1.5 / 28 x 1.5
on request
(outer diameter x wall thickness)
Measuring range
0-5 m/s, 0-10 m/s, 0-20 m/s, 0-30 m/s, 0-40 m/s, 0-50 m/s
on request
All inline tubes are made of stainless steel AISI 316.
* prices for range adjustment see page 16
** connection cables see page 16
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 15 of 23
PRICE LIST 2024
Type
Description
Price in €
mini vent-captor
air flow meter - remote system - insertion type
for pipe diameters from ID 10 to ID 15 mm
sensor with separate electronics for DIN rail mounting
3505 + 3022.30/5
range 0 - 5 m/s
1.008,00
3505 + 3022.30/10
range 0 - 10 m/s
1.008,00
3505 + 3022.30/20
range 0 - 20 m/s
1.008,00
3505 + 3022.30/30
range 0 - 30 m/s
1.008,00
3505 + 3022.30/50
range 0 - 50 m/s
1.023,00
mounting adapter, brass
for sensor 3505, 15 x 1 mm (not included in scope of delivery,
on request
must be ordered separately)
mini vent-captor
air flow meter - remote system - insertion type
for pipe diameters from ID 19 to ID 25 mm
sensor with separate electronics for DIN rail mounting
3506 + 3022.30/5
range 0 - 5 m/s
1.008,00
3506 + 3022.30/10
range 0 - 10 m/s
1.008,00
3506 + 3022.30/20
range 0 - 20 m/s
1.008,00
3506 + 3022.30/30
range 0 - 30 m/s
1.008,00
3506 + 3022.30/50
range 0 - 50 m/s
1.023,00
mounting adapter, brass
for sensor 3506, 22 x 1 mm (not included in scope of delivery,
on request
must be ordered separately)
adjustment costs of vent-captor
Switching point and range of the vent-captor switches and meters can be
adjusted to the customer's specification under our test pipe conditions.
set-point adjustment
for vent-captor switch
net
45,00
range adjustment
for vent-captor meter
net
57,00
range adjustment and curve Ia=f(v)
for vent-captor meter
net
76,00
certificate of adjustment available on request
free of charge
connection cables for vent-captor
2 m
2 m oil flex cable, 3 x 0.5 mm
standard
5 m
5 m oil flex cable, 3 x 0.5 mm
add.
37,00
10 m
10 m oil flex cable, 3 x 0.5 mm
add.
49,00
connection cable for vent-captor 3202.12/.13 S300
4941 / 2 m
oil flex cable 4 x 0.5, 4-pin, M12 coupling/open wire
49,00
4941 / 5 m
oil flex cable 4 x 0.5, 4-pin, M12 coupling/open wire
76,00
4941 / 10 m
oil flex cable 4 x 0.5, 4-pin, M12 coupling/open wire
101,00
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 16 of 23
PRICE LIST 2024
Type
Description
Price in €
power supply units
for flow- and vent-captor requiring 24 VDC supply
8010
power supply unit for sensor with PNP or analog output
277,00
voltage supply: 9 - 36 VDC, 18 - 75 VDC, 85 - 264 VAC *
8011
power supply unit for sensor with NPN output
277,00
voltage supply: 9 - 36 VDC, 18 - 75 VDC, 85 - 264 VAC *
8020
power supply unit for sensor with PNP or analog output
277,00
(clamp housing for rail mounting)
voltage supply: 9 - 36 VDC, 18 - 75 VDC, 85 - 264 VAC *
8021
power supply unit for sensor with NPN output
277,00
(clamp housing for rail mounting)
voltage supply: 9 - 36 VDC, 18 - 75 VDC, 85 - 264 VAC *
* The voltage supply has to be specified with the order.
PAX
Process input meters with digital display
PAXP 0000
digital display with totalizer function
net
378,00
supply voltage 85 - 250 VAC, signal input 4 - 20 mA
PAXP 0010
digital display with totalizer function
net
418,00
supply voltage 11 - 36 VDC, signal input 4 - 20 mA
PAX CDL10
analog output card for PAXP
net
119,00
PAX CDS10
relay output card 2 x changer
net
62,00
DA9602R0
universal digital display
net
145,00
operating voltage: 100 - 240 VAC/DC
signal input: universal
relay output: 2 x close
summarizer function
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 17 of 23
PRICE LIST 2024
Article number
Description
Price in €
for 412x.xx
799931
fitting G½, stainless steel AISI 303, length 26 mm
net
on request
799996
fitting G½, stainless steel AISI 316, length 26 mm
net
on request
799942
Fitting ½" - 14 NPT, stainless steel AISI 303, length 26 mm
net
on request
799998
fitting G½, stainless steel AISI 303, length 40 mm
net
on request
for 3204/3205/3206 and 4115
799201
fitting G1, stainless steel AISI 303, length 37 mm *
net
22,00
799921
fitting G1, stainless steel AISI 316, length 37 mm *
net
35,00
799927
fitting G1, steel (ST 37), length 60 mm *
net
on request
799923
fitting G1, stainless steel AISI 303, length 60 mm *
net
on request
799990
fitting G1, stainless steel AISI 316, length 60 mm *
net
on request
799932
fitting G1, PVC, length 60 mm *
net
on request
for 4114
799997
fitting G1¼, steel (ST 37), length 65 mm *
net
on request
799920
fitting G1¼, stainless steel AISI 303, length 65 mm *
net
on request
* O-ring included
other fittings on request
various spare parts
799991
union nut G1, stainless steel AISI 303 (for 3205.xx/4115.30) *
net
11,00
799926
plastic flange *
net
1,00
79800
PG21, plastic (for 3201.xx/3202.xx/3203.xx)
net
11,00
(alternative for flange without additional costs)
799922
PG21, metal (for 3201.xx/3202.xx/3203.xx)
net
35,00
24118
O-ring 24 x 3.0 mm Perbunan P431A (for 3204.xx/3205.xx/3206.xx) *
net
1,00
* included in delivery depending on type
compression fittings for inline captor
according to DIN ISO 8434
(1 set = 2 pieces per unit)
78778
6 mm / 6 mm, stainless steel AISI 316
set-price net
43,00
78774
8 mm / 8 mm, stainless steel AISI 316
set-price net
55,00
78779
12 mm / 12 mm, stainless steel AISI 316
set-price net
67,00
thread reducing adapter (for 4120.xx ½" BSP)
stainless steel AISI 303
703015
G1 - G½
net
62,00
703016
G¾ - G½
net
62,00
7030171
¾" - 14 NPT - G½
net
62,00
fittings for flow- and vent-captor according to DIN ISO 228
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 18 of 23
PRICE LIST 2024
Type
Description
Price in €
foto-captor
hot metal detector
270 - 300 °C minimum temperature response
viewing angle
1121.xx
2 degrees
1.861,00
1131.xx
7 degrees
1.843,00
1141.xx S100
1 degree x 7 degrees
2.485,00
350 °C minimum temperature response
viewing angle
1211.xx
1 degree
1.745,00
1221.xx
2 degrees
2.044,00
1231.xx
7 degrees
1.605,00
1241.xx
2 degrees x 25 degrees
1.605,00
1241.xx S100
1 degree x 7 degrees
1.868,00
1241.xx S102
1 degree x 15 degrees
2.199,00
1271.xx
12 degrees with 2 m fibre optic cable (other length on request)
2.093,00
1281.xx
½ degree
1.619,00
450 °C minimum temperature response
viewing angle
1311.xx
1 degree
1.608,00
1321.xx
2 degrees
1.627,00
1331.xx
7 degrees
1.627,00
1341.xx
2 degrees x 25 degrees
1.627,00
1341.xx S100
1 degree x 7 degrees
1.875,00
1341.xx S102
1 degree x 15 degrees
2.105,00
1371.xx
12 degrees with 2 m fibre optic cable (other length on request)
1.750,00
1381.xx
½ degree
1.742,00
800 °C minimum temperature response
viewing angle
1411.xx
1 degree
1.449,00
1421.xx
2 degrees
1.381,00
1431.xx
7 degrees
1.381,00
1441.xx
2 degrees x 25 degrees
1.367,00
1441.xx S100
1 degree x 7 degrees
1.608,00
1441.xx S102
1 degree x 15 degrees
1.952,00
1471.xx
12 degrees with 2 m fibre optic cable (other length on request)
1.921,00
1481.xx
½ degree
1.865,00
options (standard version 1xx1.xx with 2 m cable)
connector
male socket and Harting STAF6 connector or Brad-Harrison connector
add.
68,00
cooling jacket
cooling jacket
add.
404,00
test function
test function
add.
158,00
L100
air purge, special tubus length 100 mm
add.
196,00
E
temperature response adjustable
add.
329,00
range 12xx series: 350 °C up to 600 °C
range 13xx series: 450 °C up to 700 °C
range 14xx series: 700 °C up to 1.000 °C
S110/… °C
different temperature response (on request)
add.
83,00
Other types on request.
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 19 of 23
PRICE LIST 2024
Type
Description
Price in €
remote foto-captor systems
electronics
1207.xx
electronics for remote lens and fibre optic cable
1.336,00
minimum response temperature 350 °C
1307.xx
electronics for remote lens and fibre optic cable
1.336,00
minimum response temperature 450 °C
1407.xx
electronics for remote lens and fibre optic cable
1.336,00
minimum response temperature 800 °C
1907.xx
electronics for remote lens and fibre optic cable
1.747,00
minimum response temperature 380 °C / 480 °C switchable
Brad-Harrison plug
electronics with Brad-Harrison plug
add.
48,00
remote lenses
viewing angle
1001
1 degree, flange
on request
1002
2 degrees, flange
on request
1002 LL
2 degrees, air purge, flange
on request
1002 KL
2 degrees, cooling jacket, flange
on request
1002 KLL
2 degrees, cooling jacket, air purge, flange
on request
10023
2 degrees, without flange
on request
10023 LL
2 degrees, air purge, flange
on request
1003
7 degrees, without flange
on request
1003 L
7 degrees, flange
on request
1003 LL
7 degrees, air purge, flange
on request
1003 KL
7 degrees, cooling jacket, flange
on request
1003 KLL
7 degrees, cooling jacket, air purge, flange, protection glass
on request
1003 HS
7 degrees, high temperature (up to + 200 °C), protection glass
on request
1003 HSL
7 degrees, high temperature (up to + 200 °C), protection glass, flange
on request
1003 HSLL
7 degrees, high temperature (up to + 200 °C), protection glass, air purge, flange
on request
1004V
2 degrees x 25 degrees (vertical), flange
on request
1004V LL
2 degrees x 25 degrees (vertical), air purge, flange
on request
1004V KL
2 degrees x 25 degrees (vertical), cooling jacket, flange
on request
1004V KLL
2 degrees x 25 degrees (vertical), cooling jacket, air purge, flange
on request
1004V S100
1 degree x 7 degrees (vertical)
on request
1004V S102
1 degree x 15 degrees (vertical)
on request
10043V HSL S100
1 degree x 7 degrees (vertical), high temperature (up to 200 °C),
on request
protection glass
10043V HSLL
2 degrees x 25 degrees (vertical), high temperature, protection glass,
on request
air purge, flange
10043V HSLL S100
1 degree x 7 degrees (vertical), high temperature, protection glass,
on request
air purge, flange
10043V HSLL S102
1 degree x 15 degrees (vertical), high temperature, protection glass,
on request
air purge, flange
10043V KLL S100
1 degree x 7 degrees (vertical), cooling jacket, air purge, flange
on request
10043V KLL S102
1 degree x 15 degrees (vertical), cooling jacket, air purge, flange
on request
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 20 of 23
PRICE LIST 2024
Type
Description
Price in €
connection cables for foto-captors
2 m
moulded 2 m armoured silicone cable
standard
5 m
moulded 5 m armoured silicone cable
add.
97,00
10 m
moulded 10 m armoured silicone cable
add.
253,00
infrared fibre optic cables (extremely sensitive)
1042
2 m
306,00
1043
3 m
469,00
1044
4 m
530,00
1045
5 m
640,00
other lengths
each additional meter
add.
116,00
Article number
quarz rod
768014
quarz rod 100 mm long
net
375,00
768012
bracket for quarz rod "100"
net
306,00
768013
bracket with air purge for quarz rod "100"
net
469,00
Article number
accessories for foto-captor
768901
swivel stand, turnable for horizontal and vertical alignment
225,00
768924
lens cover standard housings
245,00
768952
lens cover cooling housings
293,00
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 21 of 23
PRICE LIST 2024
Type
Description
Price in €
proxi-captor
inductive proximity switches and meters
(2 m connection cable included)
proximity switches - compact units
switching distance
2040.xx DC
40 mm non flush mounting
927,00
2040.xx AC
40 mm non flush mounting
927,00
2040.xx with plug
40 mm non flush mounting
969,00
2040.xx with plug and screw base
40 mm non flush mounting
984,00
2040.xx with mounting plate
40 mm non flush mounting
1.033,00
2045.xx
45 mm flush mounting
551,00
2045.xx with mounting plate 4"x4"
45 mm flush mounting
656,00
2080.xx DC
80 mm non flush mounting
970,00
2080.xx AC
80 mm non flush mounting
970,00
2080.xx with mounting plate
80 mm non flush mounting
1.075,00
2090.xx
90 mm flush mounting
655,00
2100.xx DC
100 mm non flush mounting
1.028,00
2100.xx AC
100 mm non flush mounting
1.028,00
2100.xx with mounting plate
100 mm non flush mounting
1.132,00
2210.xx DC
100 mm non flush mounting
408,00
2210.xx AC
100 mm non flush mounting
445,00
2215.xx DC
150 mm non flush mounting
788,00
2215.xx AC
150 mm non flush mounting
816,00
switching units for standard coils and copper wire coils
2400.xx
switching unit, adjustable, switching distance for separate coil
526,00
2500.xx
self-adjusting switching unit for separate coil
640,00
standard coils for 2400.xx / 2500.xx
2840
copper wire coil 250 mm (D)
456,00
inductive distance meter
2610.30
current output 0 - 20 mA (4 - 10 mA adjustable)
4.152,00
2610.31
voltage output 0 - 20 V (adjustable zero point, e. g. -10 V to +10 V)
4.152,00
0 - 15 V (max. range at 24 VDC supply)
connection cables
armoured silicone cable
per each meter
add.
31,00
oil flex cable
3 x 0.5 mm², per each meter
add.
11,00
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 22 of 23
PRICE LIST 2024
Type
Description
Price in €
inductive proximity switches
(2 m connection cable included)
I 210.95 20 - 250 VAC
switching distance 10 mm
on request
I 210.21 10 - 55 VDC
switching distance 10 mm
on request
I 210.22 10 - 55 VDC
switching distance 10 mm
on request
I 210.23 10 - 55 VDC
switching distance 10 mm
on request
I 220.94 20 - 250 VAC
switching distance 20 mm
on request
I 220.95 20 - 250 VAC
switching distance 20 mm
on request
I 220.94/.95 20 - 250 VAC
switching distance 20 mm
on request
I 220.94/.95 20 - 250 VAC / 10 m
switching distance 20 mm, with 10 m cable
on request
I 220.22 10 - 55 VDC
switching distance 20 mm
on request
I 220.22 10 - 55 VDC / 5 m
switching distance 20 mm, with 5 m cable
on request
I 220.23 10 - 55 VDC
switching distance 20 mm
on request
I 610.95 20 - 250 VAC
switching distance 10 mm
on request
I 610.95 20 - 250 VAC / 10 m
switching distance 10 mm, with 10 m cable
on request
accessories
brackets
for type I 220.xx
net
on request
Rev: AA 01.01.2024
errors and changes excepted
The prices marked with "net" are not discountable.
page 23 of 23
ระบบสมาชิก
DHL Express
FedEx Express
TNT Express
UPS Tracking
USPS Tracking
KERRY Express
EMS & Thailandpost Tracking
▲
▼
รายการสั่งซื้อของฉัน
รายการสั่งซื้อของฉัน
ข้อมูลร้านค้านี้
บริษัท ทีเอพี พาร์ท เอ็นจิเนียริ่ง จำกัด
บ.ทีเอพี พาร์ทฯ ก่อตั้งขึ้นเมื่อปี 2551 โดยกลุ่มวิศกรที่มีประสบการณ์ เราจำหน่าย-เป็นผู้นำเข้าสินค้าเองโดยตรงจากต่างประเทศ อาทิ เครื่องจักร อะไหล่วิศวกรรม อุปกรณ์ไฟฟ้าคอนโทรล เครื่องมือวัด และอุปกรณ์ต่างๆที่ใช้ในทุกกลุ่มอุตสาหกรรม ต่อมาด้วยประสบการณ์ต่างๆ เราสามารถขยายธุรกิจโดยการเป็นตัวแทนจำหน่าย รวมถึงบริการติดตั้งโครงการระบบควบคุมและสั่งการอุปกรณ์ไฟฟ้า
เบอร์โทร : 091-484-4332
อีเมล : info@tap-part.com
อีเมล : info@tap-part.com
ส่งข้อความติดต่อร้าน
เกี่ยวกับร้านค้านี้
ค้นหาสินค้าในร้านนี้
ค้นหาสินค้า
สินค้าที่ดูล่าสุด
บันทึกเป็นร้านโปรด
Join เป็นสมาชิกร้าน
แชร์หน้านี้
แชร์หน้านี้
↑
TOP เลื่อนขึ้นบนสุด
TOP เลื่อนขึ้นบนสุด
สินค้าในตะกร้า ({{total_num}} รายการ)
ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า
ราคาสินค้าทั้งหมด
฿ {{price_format(total_price)}}
- ฿ {{price_format(discount.price)}}
ราคาสินค้าทั้งหมด
{{total_quantity}} ชิ้น
฿ {{price_format(after_product_price)}}
ราคาไม่รวมค่าจัดส่ง
รวมภาษีมูลค่าเพิ่มแล้ว
➜ เลือกซื้อสินค้าเพิ่ม
