HALSTRUP WALCHER #Germany
4 ปีที่ผ่านมา
halstrup-walcher GmbH
Pressure measurement technology
TAP Part Engineering Co., Ltd.Pressure measurement technology
Company in Thailand
Contact us: tap.part@engineer.com
Mobile: 091-4844332
halstrup-walcher GmbH
Pressure Transducer PIZ Delta_P
Country of Origin: Germany
halstrup-walcher GmbH
Model: P26
Model: P26
Intelligent Differential Pressure Transmitter
Country of Origin: Germany
Pressure measurement
P 26 Differential pressure transmitter
P 29 Differential pressure transmitter
PS 17 Differential pressure transmitter
PS 27 Differential pressure transmitter
P 34 Differential pressure transmitter
PIZ Differential pressure transmitter
REG 21
EMA 200
EMA 84
KAL 200
KAL 100
KAL 84
BA 1000
AD 1000
PU/PI
PUC 24 Cleanroom panel
PUC 28 / PUC 28 K Cleanroom panel
ต้องการสอบถามราคา รายละเอียดสินค้า กรุณาแจ้งยี่ห้อ รุ่น จำนวน เข้ามาที่
Mobile: 091-484-4332
Email: tap.part@engineer.com
P 26
P 26
Wide range of units available for pressure and volume flow, also ± measurement ranges
Protected against pressure peaks and incorrect operation
Two adjustable limit switches permit the connection of e.g. ventilators or signalling devices
Savings in additional circuitry costs
Multilingual menu (German / English / Italian / French)
Also available as "air meter" to determine air conditioning consumption
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement range
0 .. 10 Pa, ± 10 Pa
Output
0 .. 10 V, 0/4 .. 20 mA, ± 5 V
Power supply
24 VAC/DC, 24 VAC or 230/115 VAC
Margin of error
± 0.2 % or ± 0.5 % FS
(0.3 Pa margin of error for the reference)
Medium
Air, all non-aggressive gases
Housing
Housing for surface mounting IP 65 also for top-hat rail mounting
Product details
P 29
P 29
Differential pressure transmitter TÜV-tested, for natural gas applications without Ex-zone requirements
Does not generate any ATEX zone
Safe separation of ignition source and gas mixture
Reduction of in the variety of models and easy inventory control through scalable measuring range
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement range
0 .. 250 Pa
Output
0 .. 10 V, 0/4 .. 20 mA, ± 5 V
Power supply
24 VDC
Margin of error
± 0.5 % FS (standard)
± 0.2 % FS
(0.3 Pa margin of error for the reference)
Medium
Natural gas
Housing for surface mounting
Protection class IP 65 also for top-hat rail mounting
Product details
PS 17
PS 17
Compact differential pressure transmitter for basic applications
Optional available with two-wire technology
± and asymmetric measurement ranges
Configurable via DIP switches
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement ranges
0 .. 50 Pa, ± 50 Pa
Output
0/2 .. 10 V or 0/4 .. 20 mA
switchable
Power supply
24 VAC/DC, 15 .. 32 VDC (two-wire)
or 24 VDC with galvanic separation
Margin of error
± 1 % of the set value
for ≤ 100 Pa plus ± 0.5 Pa
Medium
Air, all non-aggressive and non-flammable gases
Housing
Robust ABS housing with IP 67 for top-hat rail or wall mounting
Product details
PS 27
PS 27
Compact differential pressure transmitter for basic applications
Also available with two-wire technology (optional)
Either with one fixed measurement range or toggling between 4 different measurement ranges
Measurement of positive and negative differential pressures
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement ranges
0 .. 50 Pa, ± 50 Pa
Output
0/2 .. 10 V, 0/4 .. 20 mA or 0 .. 5 V
Power supply
24 VAC/DC or 15 .. 32 VDC (two-wire)
Margin of error
± 2 % of the set value for ≥ 100 Pa or
± 3 % of the set value for 50 Pa
(0.3 Pa margin of error for the reference)
Medium
Air, all non-aggressive gases
Housing for surface mounting
Housing for surface mounting IP 65, suitable for top-hat rail mounting
Product details
PUC 24
PUC 24
Cleanroom panel (stainless steal) for displaying air conditioning data
Electrical inputs for humidity and temperature transducers eliminate the need for additional displays
Design is suitable for use in cleanroom applications with a smooth stainless steel surface that ensures easy cleaning
Bilinual menu (German / English, others on request)
Two adjustable limit switches permit the connection of signalling devices and save additional wiring
Add item to watch list
send product inquiry
Data sheet
Special features
Measurement ranges
± 100 Pa or ± 250 Pa
freely scalable within this range
Output
0 .. 10 V or
0/4 .. 20 mA (adjustable)
Supply voltage
24 VDC, ± 10 % smoothed
Margin of error
± 0.5 % of max. value
(0.3 Pa margin of error for the reference)
Product details
PUC 28 / PUC 28 K
PUC 28 / PUC 28 K
Process panel (Aluminium, anodised) for displaying air-conditioning data
Electrical inputs for humidity and temperature transmitters eliminate the need for additional displays
Design is suitable for use in cleanroom applications with a plastic surface that ensures easy cleaning
PUC 28 K model: 2 pressure ports at the front panel for readjustment of the pos./neg. final value
Bilingual menu (German / English, others on request)
Two adjustable limit switches permit the connection of signalling devices and save additional wiring (optional)
Add item to watch list
send product inquiry
Data sheet
Special features
Measurement ranges
± 100 Pa or ± 100 Pa
freely scalable within this range
Output
0 .. 10 V or
0/4 .. 20 mA (adjustable)
Supply voltage
24 VDC, ± 10 % smoothed
Margin of error
± 0.5 % of max. value
(0.3 Pa margin of error for the reference)
Product details
P 34
P 34
Differential pressure transmitter with very small dimensions – ideal for control cabinet installation
Optionally with temperature analogue input and internal stat. pressure sensor for P-/T-compensated volume flow
Optionally with relay
Volume flow can be configured via k-factor, dPmax/Vmax or 20 individual values
With USB interface: via PC-software (password-protected), scaling, characteristic line form and many other parameters can be set
Delivery possible already completely integrated into the control cabinet (on request)
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement range
0 .. 10 Pa, ± 10 Pa
Output
0 .. 10 V, 0/4 .. 20 mA
Power supply
24 VDC/AC
Margin of error
± 0,2 % or ± 0,5 % FS
(0.3 Pa margin of error for the reference)
Medium
Air, all non-aggressive gases
Product details
PU/PI
PU/PI
Measures positive or negative differential pressures
Stable for long periods
Maintenance free operation
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement range
0 .. 50 Pa
Output
0 .. 10 V, 0/4 .. 20 mA
Supply voltage
24 VDC, 24 VAC, 115 VAC, 230 VAC
Margin of error
± 0.2 %, ± 0.5 % or ± 1 % FS
(min. 0,3 Pa)
Medium
Air, all non-aggressive gases
Housing
Housing for surface mounting IP 65
Product details

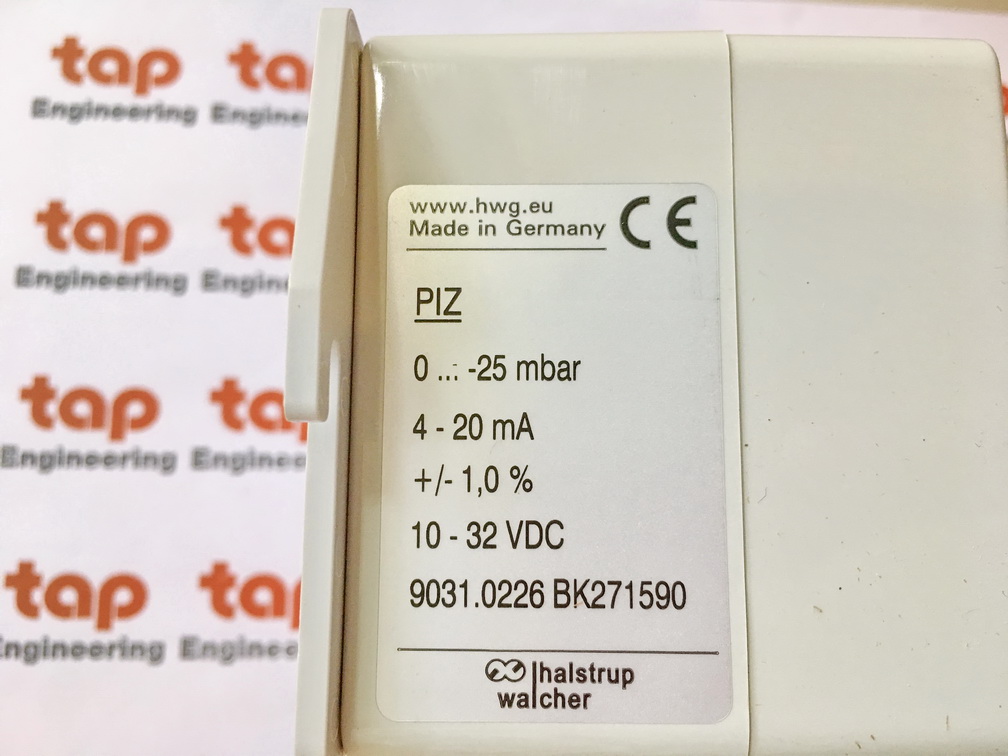

PIZ
PIZ
Differential pressure transmitter with two-wire technology
Simplified wiring
Maintenance free operation
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement range
0 .. 50 Pa
Output
4 .. 20 mA two-wire
Supply voltage
10 .. 32 VDC (two-wire system)
Margin of error
± 0.2 %, ± 0.5 % or ± 1 % FS
(min. 0.3 Pa)
Medium
Air, all non-aggressive gases
Housing
Housing for surface mounting IP 65
Product details
REG 21
REG 21
Differential pressure transmitter for pressure measurement and regulation in a device
Can be used as a 2- or 3-point controller without additional electronics.
Maintenance free operation
Add item to watch list
send product inquiry
Data sheet
Special features
Min. Measurement range
0 .. 50 Pa, ± 50 Pa
Output
0 .. 10 V, ± 5 V or 0/4 .. 20 mA
Power supply
24 VDC, 24 VAC, 115 VAC, 230 VAC
Margin of error
± 0.5 % of max. value or
± 1 % of max. value
(0.3 Pa margin of error for the reference)
Medium
Air, all non-aggressive gases
Housing
Panel housing, protection class IP 50 (installed)
Product details
EMA 200
EMA 200
Measurement of differential pressures and flow rates
Stores peak values using min./max. values
No conversion of the displayed value required due to selection of appropriate units
Maintenance free operation
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement range
± 200 Pa (± 2 mbar, 1.5 .. 18 m/s)
Max. measurement range
± 200 kPa (± 2000 mbar)
Analog output
0 .. 2 V, 0 .. 1 .. 2 V
for ± measurement ranges
Margin of error
± 0.5 % of max. value
(0.3 Pa margin of error for the reference)
Product details
EMA 84
EMA 84
Robust housing and simply operation permit use even in challenging environments
Maintenance free operation
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement ranges
100 Pa
Max. measurement ranges
100 kPa
Analog output
0 .. 1 V (optional)
Margin of error
± 0.2 % (for ranges 1 .. 50 kPa, min 0.3 Pa), ± 0.5 % (for ranges 1 .. 100 kPa) or ± 1 % of max. value
(0.3 Pa margin of error for the reference)
Product details
BA 1000
BA 1000
Measurement of barometric pressure, factory-adjusted to sea level values (SLP)
Maintenance free operation
Various measuring ranges
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement ranges
95 .. 115 kPa
Max. measurement ranges
80 .. 120 kPa
Power supply
24 VDC, 24 VAC, 115 VAC, 230 VAC
Output
0 .. 10 V or 0/4 .. 20 mA
Margin of error
± 1 % of measurement range
Reference ± 0.5 hPa with respect to sea level
(0.3 Pa margin of error for the reference)
Housing
Surface mounting IP 54
Product details
AD 1000
AD 1000
Measurement of absolute pressure, factory-adjusted to sea level values (SLP)
Precise measurement over various measuring ranges
Pressure port for measurement of absolute pressures in closed systems
Maintenance free operation
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement ranges
0 .. 50 kPa
Max. measurement ranges
0 .. 100 kPa
Power supply
24 VDC, 24 VAC, 115 VAC, 230 VAC
Output
0 .. 10 V or 0/4 .. 20 mA
Margin of error
± 1% of measurement range
Reference ± 0.5 hPa with respect to sea level
(0.3 Pa margin of error for the reference)
Housing
Surface mounting IP 54
Product details
KAL 200
KAL 200
Independent of external reference pressures
Calibration even in rooms with no mains electricity (optional rechargeable battery power supply)
No external power adaptor or measuring instrument required (internal power supply/measuring input for test objects)
With USB data interface
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement range
± 100 Pa
Max. measurement range
± 100 kPa
Data interface
USB + measurement input for test object
Margin of error
± 0.1 %, ± 0.2 % or ± 0.3 % of max. value
(0.3 Pa margin of error for the reference)
Product details
KAL 100
KAL 100
High precision measurement and calibration device in one
Independent of external reference pressures
Calibration even in rooms with no mains electricity (optional rechargeable battery power supply)
No external power adaptor or measuring instrument required (internal power supply/ measuring input for test objects)
Add item to watch list
send product inquiry
Data sheet
Special features
Min. measurement range
± 100 Pa
Max. measurement range
± 100 kPa
Data interface
USB + measurement input for test object (optional)
Margin of error
± 0.2 % of max. value or
± 0.5 % of max. value
(0.3 Pa margin of error for the reference)
Product details
KAL 84
KAL 84
Highly accurate, reproducible results
Internal pressure generation using pressure transmitter dial
Very rugged and light
Excellent for service applications
Unit conversion, e.g. mmHg / kPa, mbar / kPa
Rechargeable battery allows for portable operation
Add item to watch list
send product inquiry
Data sheet
PSE 30_-8
PSE 30_-8
Positioning system with CANopen, PROFIBUS DP, DeviceNet, Modbus RTU, Sercos, EtherCAT, PROFINET, EtherNet/IP, POWERLINK, IO-Link
Absolute measuring system
Position control for direct connection to a control module
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 5 Nm / 210 .. 40 rpm
Self-holding torque
1/2 nominal torque
Output shaft
8 mm hollow shaft
Motor type
EC-motor
Protection class
IP 54
Product details
PSE 30_/32_-14
PSE 30_/32_-14
Positioning system with CANopen, PROFIBUS DP, DeviceNet, Modbus RTU, Sercos, EtherCAT, PROFINET, EtherNet/IP, POWERLINK, IO-Link
Absolute measuring system
Position control for direct connection to a control module
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 18 Nm / 210 .. 17 rpm
Self-holding torque
1/2 nominal torque
Output shaft
14 mm hollow shaft
Motor type
EC motor
Protection class
IP 54
Brake
Optional brake
Product details
PSE 31_-8
PSE 31_-8
Positioning system with CANopen, PROFIBUS DP, DeviceNet, Modbus RTU, Sercos, EtherCAT, PROFINET, EtherNet/IP, POWERLINK, IO-Link
Absolute measuring system
Position control for direct connection to a control module
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 5 Nm / 210 .. 40 rpm
Self-holding torque
1/2 nominal torque
Output shaft
8 mm hollow shaft
Motor type
EC motor
Protection class
IP 54
Product details
PSE 31_/33_-14
PSE 31_/33_-14
Positioning system with CANopen, PROFIBUS DP, DeviceNet, Modbus RTU, Sercos, EtherCAT, PROFINET, EtherNet/IP, POWERLINK, IO-Link
Absolute measurement system
Position control for direct connection to a control module
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 25 Nm / 210 .. 10 rpm
Self-holding torque
1/2 nominal torque
Output shaft
14 mm hollow shaft
Motor type
EC-motor
Protection class
IP 54
Brake
Optional brake
Product details
PSE 34_-14
PSE 34_-14
Positioning system with 100 W power output
For vertical applications with integrated brake (optional)
Absolute measuring system
Position control for direct connection to a control module
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
10 .. 18 Nm / 60 .. 80 rpm
Self-holding torque
1/2 nominal torque
Output shaft
14 mm hollow shaft with clamp and feather key
Motor type
EC-motor
Data interface
CANopen, PROFIBUS DP, Sercos, EtherCAT, PROFINET, EtherNet/IP, POWERLINK, IO-Link
Brake
optional lock brake
Product details
PSS 30_-8
PSS 30_-8
Positioning system with IP 65
Absolute measurement system
Galvanically separated between control and motor and bus
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 5 Nm / 210 .. 40 rpm
Self-holding torque
1/2 nominal torque
Output shaft
8 mm solid shaft (PSS 30_-8-V) or
8 mm hollow shaft with adjustable collar
Protection class
IP 65 under installed and wired conditions
Material
Stainless steel housing
Product details
PSS 30_/32_-14
PSS 30_/32_-14
Positioning system with IP 65
Absolute measurement system
Galvanically separated between control and motor and bus
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 18 Nm / 210 .. 17 rpm
Self-holding torque
1/2 nominal torque
Output shaft
14 mm solid shaft (PSS 30_/32_-14-V) or
14 mm hollow shaft with adjustable collar
Protection class
IP 65 under installed and wired conditions
Material
Stainless steel housing
Product details
PSS 31_-8
PSS 31_-8
Positioning system with IP 65
Absolute measurement system
Galvanically separated between control and motor and bus
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 5 Nm / 210 .. 40 rpm
Self-holding torque
1/2 nominal torque
Output shaft
8 mm solid shaft (PSS 31_-8-V) or
8 mm hollow shaft with adjustable collar
Protection class
IP 65 under installed and wired conditions
Material
Stainless steel housing
Product details
PSS 31_/33_-14
PSS 31_/33_-14
Positioning system with IP 65
Absolute measurement system
Galvanically separated between control and motor and bus
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 5 Nm / 210 .. 68 rpm
Self-holding torque
1/2 nominal torque
Output shaft
14 mm solid shaft (PSS 31_/33_-14-V) or
14 mm hollow shaft with adjustable collar
Protection class
IP 65 under installed and wired conditions
Material
Stainless steel housing
Product details
PSW 30_-8
PSW 30_-8
Positioning system with IP 68
Absolute measurement system
Galvanically separated between control and motor and bus
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 5 Nm / 180 .. 35 rpm
Self-holding torque
1/2 nominal torque
Output shaft
8 mm solid shaft (PSW 30_-8-V) or
8 mm hollow shaft with adjustable collar
Protection class
IP 68 at standstill,
IP 66 during rotation
Material
Stainless steel
Product details
PSW 30_/32_-14
PSW 30_/32_-14
Positioning system with IP 68
Absolute measurement system
Galvanically separated between control and motor and bus
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 18 Nm / 180 .. 14 rpm
Self-holding torque
1/2 nominal torque
Output shaft
14 mm solid shaft (PSW 30_/32_-14-V) or
14 mm hollow shaft with adjustable collar
Protection class
IP 68 at standstill,
IP 66 during rotation
Material
Stainless steel
Product details
PSW 31_-8
PSW 31_-8
Positioning system with IP 68
Absolute measurement system
Galvanically separated between control and motor and bus
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 5 Nm / 180 .. 35 rpm
Self-holding torque
1/2 nominal torque
Output shaft
8 mm solid shaft (PSW 31_-8-V) or
8 mm hollow shaft with adjustable collar
Protection class
IP 68 at standstill,
IP 66 during rotation
Material
Stainless steel
Product details
PSW 31_/33_-14
PSW 31_/33_-14
Positioning system with IP 68
Absolute measurement system
Galvanically separated between control and motor and bus
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 5 Nm / 180 .. 50 rpm
Self-holding torque
1/2 nominal torque
Output shaft
14 mm solid shaft (PSW 31_/33_-14-V) or
14 mm hollow shaft with adjustable collar
Protection class
IP 68 at standstill,
IP 66 during rotation
Material
Stainless steel
Product details
PSD 40
PSD 40
Positioning system with CANopen, IO-Link, PROFINET or EtherCAT
Software features: spindle compensation drive, increased breakaway performance, synchronised run
Protection of internal electronics against manual operation
Precise position feedback thanks to an absolute measurement system without battery
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
0,8 .. 3 Nm / 200 .. 50 rpm
Self-holding torque (currented)
1/2 nominal torque
Output shaft
5 mm solid shaft or
8 or 14 mm hollow shaft
Motor type
Stepper motor
Protection class
IP 50 or IP 65
Positioning range
986 .. 4026 rotations
Product details
PSD 41
PSD 41
Positioning system with CANopen, IO-Link, PROFINET or EtherCAT
Software features: spindle compensation drive, increased breakaway performance, synchronised run
Protection of internal electronics against manual operation
Precise position feedback thanks to an absolute measurement system without battery
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
0,8 .. 3 Nm / 200 .. 50 rpm
Self-holding torque (currented)
1/2 nominal torque
Output shaft
5 mm solid shaft or
8 or 14 mm hollow shaft (optional)
Motor type
Stepper motor
Protection class
IP 50 or IP 65 (optional)
Positioning range
986 .. 4026 rotations
Product details
PSD 42
PSD 42
Positioning system with CANopen, IO-Link, PROFINET, EtherCAT
Software features: spindle compensation drive, increased breakaway performance, synchronised run
Protection of internal electronics against manual operation
Precise position feedback thanks to an absolute measurement system without battery
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
2 .. 8 Nm / 200 .. 50 rpm
Self-holding torque (currented)
1/2 nominal torque
Output shaft
8 mm solid shaft or
8 or 14 mm hollow shaft
Motor type
Stepper motor
Protection class
IP 50 or IP 65
Positioning range
977 .. 4026 rotations
Product details
PSD 43
PSD 43
Positioning system with CANopen, IO-Link, PROFINET, EtherCAT
Software features: spindle compensation drive, increased breakaway performance, synchronised run
Protection of internal electronics against manual operation
Precise position feedback thanks to an absolute measurement system without battery
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
2 .. 8 Nm / 200 .. 50 rpm
Self-holding torque
1/2 nominal torque
Output shaft
8 mm solid shaft or
8 or 14 mm hollow shaft
Motor type
Stepper motor
Protection class
IP 50 or IP 65
Positioning range
977 .. 4026 rotations
Product details
HIPERDRIVE HDA 70
HIPERDRIVE HDA 70
Very high holding torque, even under zero-current conditions
Absolute measuring system
Position control for direct connection to a control module
Jog key operated for easy start up, even without control module
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
15 Nm / 27 rpm
Self-holding torque
25 Nm
Output shaft
10 mm solid shaft with feather key,
10 /12 mm hollow shaft (bevel gear)
Motortyp
EC-motor
Data interfaces
PROFIBUS DP, EtherCAT, PROFINET, EtherNet/IP, RS 485
Protection class
IP 65
Product details
PSE 21_/23_-8
PSE 21_/23_-8
Positioning system with CANopen, DeviceNet or Modbus RTU interface including status messages
Absolute (with 64 rotations) or quasi abolute measuring system
Position control for direct connection to a control module
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 2 Nm / 80 .. 20 rpm
Position of cable gland
Turnable in steps of 90°
Output shaft
8 mm solid shaft or
8 mm hollow shaft
Motor type
DC-motor
Schutzklasse
IP 54
Product details
PSE 100
PSE 100
Positioning system with analogue setting of target value
Position report via analogue signal
Absolute measuring system
Position control for direct connection to a control module
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
2.5 .. 10 Nm / 2 .. 0.25 rpm
Default analogue target value
0 .. 10 V, 0/4 .. 20 mA
Number of rotations
max. 20 rotations
Supply voltage
24 VAC, 115 VAC, 230 VAC
Output shaft
12 mm solid shaft (with flattening)
Housing / protection class
Solid plastic with IP 55
Product details
PSE 200
PSE 200
Positioning system with analogue setting of target value
Position report via analogue signal
Absolute measuring system
Position control for direct connection to a control module
Add item to watch list
send product inquiry
Data sheet
Special features
Nominal torque / nominal rated speed
1 .. 10 Nm / 30 .. 0.25 rpm
Default analogue target value
0 .. 10 V, 0/4 .. 20 mA
Positioning range
max. 50 rotations
Supply voltage
24 VDC
Output shaft
12 mm solid shaft (with flattening)
Housing / protection class
Solid plastic with IP 55
Product details
PSE 272
PSE 272
Positioning system with analogue setting of target value
For DC voltage
Absolute measurement system
Position control for direct connection to a control module
Add item to watch list
send product inquiry
Data sheet
N 40 V
N 40 V
Plate gear with low gear backlash
Variety of output shafts and transmission ratios possible
Hardened and plain-bearing mounted output shaft
Add item to watch list
send product inquiry
Catalog
Special features
Nominal torque
up to 1 Nm
Dimensions
40 x 40 mm
Protection class
IP 40 (with dust hood)
Max. radial load
30 N
Max. axial load
20 N
Product details
N 64 V 30
N 64 V 30
Plate gear with low gear backlash
Variety of output shafts and transmission ratios possible
Hardened and plain-bearing mounted output shaft
Low noise versions available
Add item to watch list
send product inquiry
Catalog
Special features
Nominal torque
up to 3 Nm
Dimensions
64 x 64 mm
Protection class
IP 40 (with dust hood)
Max. radial load
30 N
Max. axial load
20 N
Product details
N 72
N 72
Plate gear with optional integrated motor and solid metal housing (IP 65)
Variety of output shafts and transmission ratios possible
Low noise versions available
Optional ball-bearing mounting for the output shaft to support high axial forces
Add item to watch list
send product inquiry
Catalog
Special features
Nominal torque
up to 5 Nm
Dimensions
72 x 72 mm
Protection class
IP 65
Max. radial load
30 N
Max. axial load
20 N
Product details
N 100
N 100
Plate gear with high output torques
Compact design and low gear backlash
Variety of output shafts and transmission ratios possible
Low noise versions available
Optional ball-bearing mounting for the output shaft to support high axial forces
Add item to watch list
send product inquiry
Catalog
Special features
Nominal torque
up to 20 Nm
Dimensions
98 x 68 mm
Protection class
IP 40 (with dust hood)
Max. radial load
80 N
Max. axial load
60 N
Product details
ST 120 KG
ST 120 KG
Motor and gearbox unit with limit switches for limitation of the rotation angle
Absolute position report via potentiometer
Housing with protection class IP 55
Optional ball-bearing mounting for the output shaft to support high axial forces
Add item to watch list
send product inquiry
Catalog
Special features
Norminal torque
up to 10 Nm
Dimensions
100 x 120 x 80 mm
Protection class
IP 55
Max. radial load
30 N
Max. axial load
20 N
Product details
BK 80
BK 80
Low noise plate gear in a solid metal housing
Kit with wide selection of pre-developed transmission ratios
Ball bearing mounted output shaft
Variety of output shafts possible
IP 54 permits use in challenging environments
Add item to watch list
send product inquiry
Catalog
Special features
Nominal torque
up to 8 Nm
Dimensions
80 x 80 mm
Protection class
IP 54
Max. radial load
60 N
Max. axial load
40 N
ระบบสมาชิก
DHL Express
FedEx Express
TNT Express
UPS Tracking
USPS Tracking
KERRY Express
EMS & Thailandpost Tracking
▲
▼
รายการสั่งซื้อของฉัน
รายการสั่งซื้อของฉัน
ข้อมูลร้านค้านี้
บริษัท ทีเอพี พาร์ท เอ็นจิเนียริ่ง จำกัด
บ.ทีเอพี พาร์ทฯ ก่อตั้งขึ้นเมื่อปี 2551 โดยกลุ่มวิศกรที่มีประสบการณ์ เราจำหน่าย-เป็นผู้นำเข้าสินค้าเองโดยตรงจากต่างประเทศ อาทิ เครื่องจักร อะไหล่วิศวกรรม อุปกรณ์ไฟฟ้าคอนโทรล เครื่องมือวัด และอุปกรณ์ต่างๆที่ใช้ในทุกกลุ่มอุตสาหกรรม ต่อมาด้วยประสบการณ์ต่างๆ เราสามารถขยายธุรกิจโดยการเป็นตัวแทนจำหน่าย รวมถึงบริการติดตั้งโครงการระบบควบคุมและสั่งการอุปกรณ์ไฟฟ้า
เบอร์โทร : 091-484-4332
อีเมล : info@tap-part.com
อีเมล : info@tap-part.com
ส่งข้อความติดต่อร้าน
เกี่ยวกับร้านค้านี้
ค้นหาสินค้าในร้านนี้
ค้นหาสินค้า
สินค้าที่ดูล่าสุด
บันทึกเป็นร้านโปรด
Join เป็นสมาชิกร้าน
แชร์หน้านี้
แชร์หน้านี้
↑
TOP เลื่อนขึ้นบนสุด
TOP เลื่อนขึ้นบนสุด
สินค้าในตะกร้า ({{total_num}} รายการ)
ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า
ราคาสินค้าทั้งหมด
฿ {{price_format(total_price)}}
- ฿ {{price_format(discount.price)}}
ราคาสินค้าทั้งหมด
{{total_quantity}} ชิ้น
฿ {{price_format(after_product_price)}}
ราคาไม่รวมค่าจัดส่ง
รวมภาษีมูลค่าเพิ่มแล้ว
➜ เลือกซื้อสินค้าเพิ่ม
