Keller-Druck #Switzerland
2 ปีที่ผ่านมา
Kries Energietechnik
Made in Germany
Company in Thailand
Contact us: tap.part@engineer.com
Mobile: 091-4844332

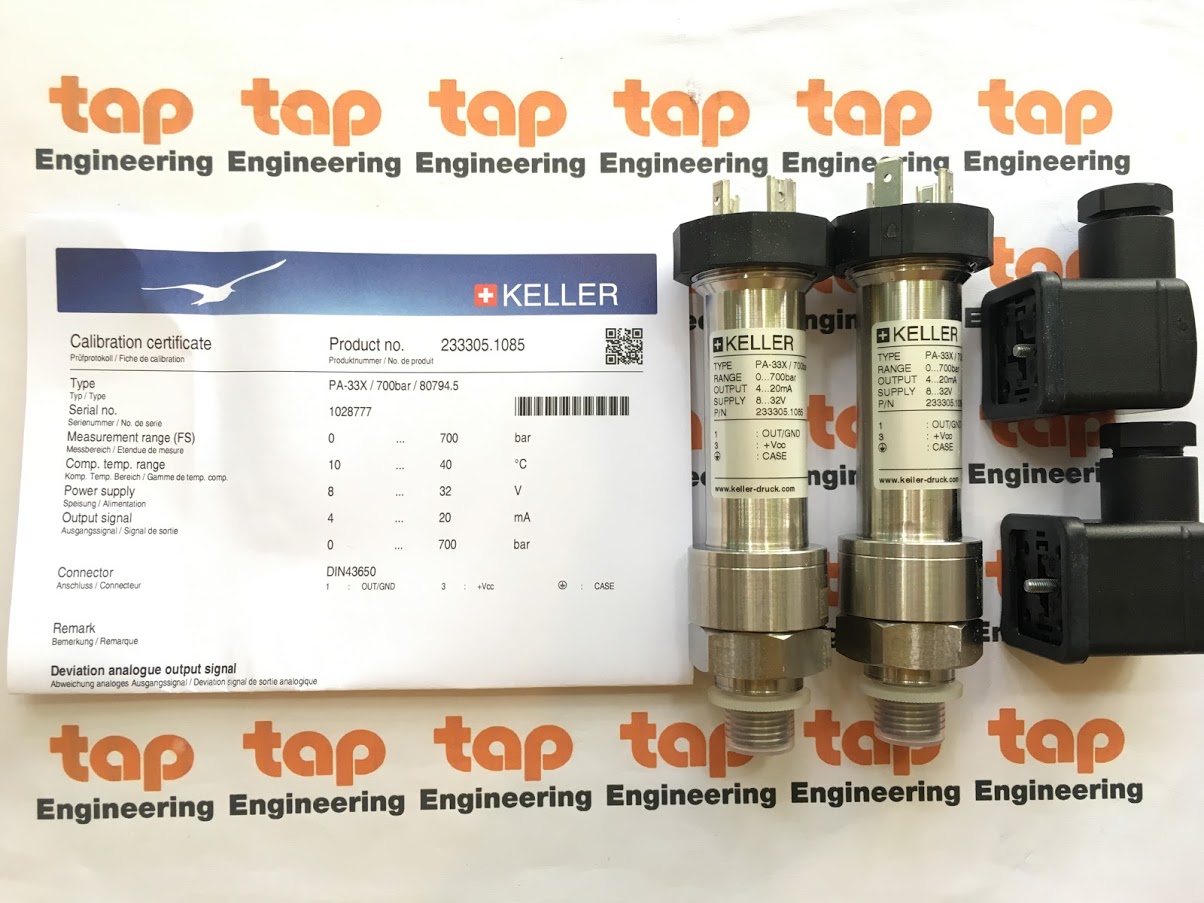

KELLER Pressure Transmitter
Brand: “KELLER”
Type: PA-33X / 80794.5
Tread 1/4"
Range: 0...700bar Output: 4...20mA Supply:8...28Vdc
KELLER LEO3 Digital Manometer
Pressure connection : G1/4”
Pressure range : 0..30bar PA
- Pressure Transducers
- Pressure Transmitters
- Level Probes
- Data Loggers
- Digital Pressure Gauges
- Wireless Solutions
- Custom Solutions
- Software & Accessoires
ต้องการสอบถามราคา รายละเอียดสินค้า กรุณาแจ้งยี่ห้อ รุ่น จำนวน เข้ามาที่
Mobile: 091-484-4332
Email: tap.part@engineer.com
PRESSURE TRANSDUCERS
Encapsulated piezoresistive pressure transducers for absolute and gauge pressure measurement are KELLER's core competence and lie at the heart of all KELLER products for end users. They have proved their worth millions of times over and are a reliable base for any measuring system. Transducers can be adjusted and optimised according to your needs.
OEM Pressure Transducers
Series 10L
0…0,1 to 0…200 bar
±0,25 %FS
±0,15 %FS
⌀ 19 mm x 15 mm
-40…125 °C
Series 9L
0…0,2 to 0…200 bar
±0,25 %FS
±0,2 %FS
⌀ 19 mm x 5 mm
-40…125 °C
Series 9FL
0…0,2 to 0…200 bar
±0,25 %FS
±0,2 %FS
⌀ 17 mm x 5,5 mm
-40…125 °C
Series 7L
0…5 to 0…200 bar
±0,5 %FS
±0,25 %FS
⌀ 15 mm x 5 mm
-20…100°C
Series 4L
0…10 to 0…200 bar
±0,5 %FS
±0,5 %FS
⌀ 11 mm x 4,2 mm
-10…80 °C
Series 6LHP
0…200 to 0…1000 bar
±0,5 %FS
±0,25 %FS
⌀ 13 mm x 8 mm
-20…100 °C
Series 7LHP
0…200 to 0…1000 bar
±0,5 %FS
±0,25 %FS
⌀ 15 mm x 8 mm
-40…150 °C
Series PD-10L
0…0,1 to 0…30 bar
±0,25 %FS
±0,15 %FS
⌀ 19 mm x 26 mm
-40…125 °C
OEM High-Pressure Transducers
Series 7LHP
0…200 to 0…1000 bar
±0,25 %FS
Steel 1.4435
⌀ 15 mm x 8 mm
-40…150 °C
Series 6LHP
0…200 to 0…1000 bar
±0,25 %FS
Steel 1.4435
⌀ 13 mm x 8 mm
-20…100 °C
Series 7LHPI
0…200 to 0…1000 bar
±0,35 %FS
Inconel 718
⌀ 15 mm x 8 mm
-40…200 °C
Series 10LHP
0…200 to 0…1000 bar
±0,25 %FS
Steel 1.4435
⌀ 19 mm x 15 mm
-20…100 °C
Series 8
0…10 to 0…1000 bar
±0,5 %FS
Steel 1.4435
⌀ 15 mm x 13 mm
-55…150 °C
Series 7LHPTi
0…50 to 0…1000 bar
±0,25 %FS
Titan grade 2
⌀ 15 mm x 8 mm
-50…150 °C
OEM Differential Pressure Transducers
Series PD-10L
0…0,1 to 0…30 bar
±0,25 %FS
⌀ 19 mm x 26 mm
-40…125 °C
Series PD-10LHP
0…0,1 to 0…30 bar
±0,25 %FS
⌀ 19 mm x 35 mm
-40…125 °C
OEM Pressure Transducers with Thread
Series 6S
0…0,3 to 0…1000 bar
±0,5 %FS
G1/4
HEX22 x 34mm
-20…80 °C
Series 6
0…10 to 0…600 bar
±1,0 %FS
G1/4
HEX19 x 38mm
-10…80 °C
Series 6M
0…5 to 0…200 bar
±1,0 %FS
G1/4
HEX19 x 32mm
-20…80 °C
Series 13
0…10 to 0…1000 bar
±0,5 %FS
M14 x 1,2
⌀ 28 mm x 48 mm
20…350 °C
OEM Pressure Transducers Special Designs
Series 3L
0...20 to 0...200
± 0,5 %FS
± 0,5 %FS
Ø 9,5 mm x 4,2 mm
20...30 °C
Series 6L
0…10 to 0…200 bar
±0,5 %FS
±0,35 %FS
⌀ 13 mm x 4,5 mm
-10…80 °C
Series 8L
0…0,2 to 0…200 bar
±0,5 %FS
±0,2 %FS
⌀ 17 mm x 7 mm
-40…125 °C
Miniature Pressure Transducers without Oil Filling
Series M5
0…3 to 0…30 bar
±0,3 %FS
M5 x 0.5 thread
⌀ 6,2 mm x 40 mm
-50…180 °C
Series 2Mi
0…1 to 0…400 bar
±0,5 %FS
Elastomer coating
⌀ 4,5 mm x 3 mm
-20…80 °C
Catheters
-0,5…0,5 bar
±0,5 %FS
4F / 5F / 6F / 8F
⌀ 1,33…2,67 mm
20…40 °C
Tip sensors
0…1 to 0…5 bar
±0,5 %FS
4F / 5F / 6F / 8F
⌀ 1,33…2,67 mm
20…40 °C
PRESSURE TRANSMITTERS
Pressure transmitters are sensors that use additional electronics to compensate for linearity deviations and temperature errors, outputting measurement results as standardised signals. Every transmitter is measured over the entire pressure and temperature profile and compared to the desired signal span.
Standard Pressure Transmitters
Series 21Y
0…2 to 0…1000 bar
±0,5 %FS
±1,5 %FS @ -10…80 °C
4…20 mA, 0…10 V
-40…100°C
Series 23SY
0…0,1 to 0…1000 bar
±0,25 %FS
±0,7 %FS @ -10…80 °C
4…20 mA, 0…10 V
-40…100 °C
Series 23SX
0…0,16 to 0…1000 bar
±0,1 %FS
±0,25 %FS @ -10…80 °C
RS485, 4…20 mA, 0…10 V
-40…125 °C
Serie 33X
0…0,3 to 0…1000 bar
±0,05 %FS
±0,1 %FS @ -10…80 °C
RS485, 4…20 mA, 0…10 V
-20…125 °C
Series 21C
0…2 to 0…1000 bar
±0,25 %FS
±1,5 %FS @ -10…80 °C
0,5…4,5 V ratiom.
-40…125 °C
Series 9LC
0…1 to 0…200 bar
±0,25 %FS
±0,8 %FS @ -10…80 °C
0,5…4,5 V ratiom.
-40…150 °C
Series 9LD
0…1 to 0…200 bar
±0,15 %FS
±0,7 %FS @ -10…80 °C
I2C
-40…110 °C
Series 41X
0…0,03 to 0…0,3 bar
±0,1 %FS
±0,2 %FS @ 10…50 °C
RS485, 4…20 mA, 0…10 V
-20…80 °C
Series 21PY
0…10 to 0…600 bar
±0,25 %FS
±0,7 %FS @ -10…80 °C
0,5…4,5 V
-20…100 °C
Front-Flush Pressure Transmitters
Series 25Y
0…0,5 to 0…1000 bar
±0,25 %FS
±0,7 %FS @ -10…80 °C
4…20 mA, 0…10 V
-40…100 °C
Series 35X
0…0,3 to 0…1000 bar
±0,05 %FS
±0,1 %FS @ -10…80 °C
RS485, 4…20 mA, 0…10 V
-40…125 °C
Series 35XHT
0…1 to 0…30 bar
±0,05 %FS
±0,15 %FS @ 20…120 °C
RS485, 4…20 mA, 0…10 V
-20…150 °C
Series 35XHTC
0…3 to 0…1000 bar
±0,05 %FS
±0,5 %FS @ 20…300 °C
RS485, 4…20 mA, 0…10 V
0…300 °C
Series 35XHTT
0…1 to 0…30 bar
±0,05 %FS
±0,15 %FS @ 20…120 °C
RS485, 4…20 mA, 0…10 V
-20…150 °C
High-Temperature Pressure Transmitters
Series M5HB
0…3 to 0…30 bar
±0,1 %FS
±0,5 %FS @ -20…125 °C
0…10 V
-40…180 °C
Series M8coolHB
0…3 to 0…30 bar
±0,1 %FS
±1,0 %FS @ -40…180 °C
0…10 V
-50…1000 °C
Series 35XHTC
0…3 to 0…1000 bar
±0,05 %FS
±0,5 %FS @ 20…300 °C
RS485, 4…20 mA, 0…10 V
0…300 °C
Series 9LC
0…1 to 0…200 bar
±0,25 %FS
±0,8 %FS @ -10…80 °C
0,5…4,5 V ratiom.
-40…150 °C
Series 35XHT
0…1 to 0…30 bar
±0,05 %FS
±0,15 %FS @ 20…120 °C
RS485, 4…20 mA, 0…10 V
-20…150 °C
Series 35XHTT
0…1 to 0…30 bar
±0,05 %FS
±0,15 %FS @ 20…120 °C
RS485, 4…20 mA, 0…10 V
-20…150 °C
Differential Pressure Transmitters
Series PD-33X
0…0,3 to 0…30 bar
±0,05 %FS
RS485, 4…20 mA, 0…10 V
Classic 'wet/wet'
Series PD-39X
0…3 to 0…300 bar
±0,05 %FS
RS485, 4…20 mA, 0…10 V
Line pressure measurement
Series PRD-33X
0…0,35 to 0…3 bar
±0,1 %FS
RS485
Line pressure measurement
Series PD-41X
0…0,03 to 0…0,3 bar
±0,1 %FS
RS485, 4…20 mA, 0…10 V
Capacitive sensor
Series PD-23
0…0,2 to 0…20 bar
±0,5 %FS
4…20 mA, 0…10 V
Classic 'wet/wet'
Automotive Pressure Transmitters
Series 22M
0…5 to 0…250 bar
±2,0 %FS @ 0…80 °C
0,5…4,5 V ratiom., 4...20 mA
Brass
E4-110R, E4-10R
Series 22DT
0…14 bar
±2,0 %FS @ 0…90 °C
0,5…4,5 V ratiom.
With temperature sensor
E4-110R, E4-10R
Series 21PY
0…10 to 0…600 bar
±0,7 %FS @ -10…80 °C
0,5…4,5 V
Small and lightweight
none
Series 21PHB
0…10 to 0…600 bar
±0,5%FS @ -10…80 °C
0…10 V
20 kHz bandwidth
none
Series 22S
0…5 to 0…250 bar
±2,0 %FS @ 0…80 °C
0,5…4,5 V ratiom., 4...20 mA
Steel 316L
none
Series 22-PS
0…4 to 0…400 bar
±2,0 %FS @ 0…80 °C
0,5…4,5 V, 2 Switches output
Programmable pressure switch
none
Intrinsically Safe Pressure Transmitters
Series 23SY-Ei
0…0,1 to 0…1000 bar
±0,25 %FS
±0,7 %FS @ -10…80 °C
4…20 mA, 0…10 V
-40…100 °C
Series 25Y-Ei
0…0,5 to 0…1000 bar
±0,25 %FS
±0,7 %FS @ -10…80 °C
4…20 mA, 0…10 V
-40…100 °C
Series 33X-Ei
0…0,3 to 0…1000 bar
±0,05 %FS
±0,1 %FS @ -10…80 °C
RS485, 4…20 mA, 0…10 V
-40…120 °C
Series 35X-Ei
0…0,3 to 0…1000 bar
±0,05 %FS
±0,1 %FS @ -10…80 °C
RS485, 4…20 mA, 0…10 V
-40…120 °C
Series PD-33X-Ei
0…0,3 to 0…30 bar
±0,05 %FS
±0,1 %FS @ -10…80 °C
RS485, 4…20 mA, 0…10 V
-40…90 °C
Series PD-39X-Ei
0…3 to 0…300 bar
±0,05 %FS
± 0,1 %FS @ -10…80 °C
RS485, 4…20 mA, 0…10 V
-40…90 °C
Series 41X-Ei
0…0,03 to 0…0,3 bar
±0,1 %FS
±0,2 %FS @ 10…50 °C
RS485, 4…20 mA, 0…10 V
-20…80 °C
Flame Proof Pressure Transmitters
Series 33X-Ed
0…0,3 to 0…300 bar
±0,05 %FS
±0,1 %FS @ -10…80 °C
RS485, 4…20 mA, 0…10 V
Series 35X-Ed
0…0,3 to 0…300 bar
±0,05 %FS
±0,1 %FS @ -10…80 °C
RS485, 4…20 mA, 0…10 V
Series 23-Ed
0…0,2 to 0…300 bar
±0,5 %FS
±4,0 %FS @ -10…80 °C
4…20 mA, 0…10 V
Series 25-Ed
0…0,5 to 0…300 bar
±0,5 %FS
±4,0 %FS @ -10…80 °C
4…20 mA, 0…10 V
OEM Pressure Transmitters
Series 7LD
0…3 to 0…200 bar
±0,15 %FS
±0,7 %FS @ -10…80 °C
I2C
⌀ 15 mm x 5 mm
Series 4LC
0…3 to 0…200 bar
±0,25 %FS
±1,0 %FS @ 0…50 °C
0,5…4,5 V ratiom.
⌀ 11 mm x 4,2 mm
Series 9FLC
0…1 to 0…50 bar
±0,25 %FS
±0,8 %FS @ -10…80 °C
0,5…4,5 V ratiom.
⌀ 17 mm x 5,5 mm
Series 9LD
0…1 to 0…200 bar
±0,15 %FS
±0,7 %FS @ -10…80 °C
I2C
⌀ 19 mm x 5 mm
Series 4LD
0…3 to 0…200 bar
±0,15 %FS
±0,7 %FS @ 0…50 °C
I2C
⌀ 11 mm x 4,2 mm
Series 7LC
0…2 to 0…200 bar
±0,25 %FS
±1,0 %FS @ -10…80 °C
0,5…4,5 V ratiom.
⌀ 15 mm x 5 mm
Series 9FLD
0…1 to 0…30 bar
±0,15 %FS
±0,7 %FS @ -10…80 °C
I2C
⌀ 17 mm x 5,5 mm
Series 9LC
0…1 to 0…200 bar
±0,25 %FS
±0,8 %FS @ -10…80 °C
0,5…4,5 V ratiom.
⌀ 19 mm x 5 mm
Series 8LC
0…1 to 0…200 bar
±0,25 %FS
±0,8 %FS @ -10…80 °C
0,5…4,5 V ratiom.
⌀ 17 mm x 7 mm
OEM High-Pressure Transmitters
Series 6LHPC
0…200 to 0…1000 bar
±0,25 %FS
±0,8 %FS @ -10…80 °C
0,5…4,5 V ratiom.
⌀ 13 mm x 8 mm
Series 7LHPC
0…200 to 0…1000 bar
±0,25 %FS
±0,8 %FS @ -10…80 °C
0,5…4,5 V ratiom.
⌀ 15 mm x 8 mm
Series 6LHPD
0…400 to 0…1000 bar
±0,15 %FS
±1,0 %FS @ -10…80 °C
I2C
⌀ 13 mm x 8 mm
Series 7LHPD
0…400 to 0…1000 bar
±0,15 %FS
±1,0 %FS @ -10…80 °C
I2C
⌀ 15 mm x 8 mm
Intrinsically Safe OEM Pressure Transmitters
Series 4LD-Ei
0…3 to 0…200 bar
±0,15 %FS
±0,7 %FS @ 0…50 °C
I2C
⌀ 11 mm x 4,2 mm
Series 6LHPD-Ei
0…400 to 0…1000 bar
±0,15 %FS
±1,0 %FS @ -10…80 °C
I2C
⌀ 13 mm x 8 mm
Series 7LD-Ei
0…3 to 0…200 bar
±0,15 %FS
±0,7 %FS @ -10…80 °C
I2C
⌀ 15 mm x 5 mm
Series 7LHPD-Ei
0…400 to 0…1000 bar
±0,15 %FS
±1,0 %FS @ -10…80 °C
I2C
⌀ 15 mm x 8 mm
Series 9LD-Ei
0…1 to 0…200 bar
±0,15 %FS
±0,7 %FS @ -10…80 °C
I2C
⌀ 19 mm x 5 mm
Series 9FLD-Ei
0…1 to 0…30 bar
±0,15 %FS
±0,7 %FS @ -10…80 °C
I2C
⌀ 17 mm x 5,5 mm
Analog Pressure Transmitters
Series 23
0…0,2 to 0…1000 bar
±0,5 %FS
±4,0 %FS @ -10…80 °C
4…20 mA, 0…10 V
-40…100 °C
Series 25
0…0,5 to 0…1000 bar
±0,5 %FS
±4,0 %FS @ -10…80 °C
4…20 mA, 0…10 V
-40…100 °C
Series PD-23
0…0,2 to 0…20 bar
±0,5 %FS
±4,0 %FS @ -10…80 °C
4…20 mA, 0…10 V
-40…100 °C
Standard Level Probes
Series 26Y
0…0,1 to 0…10 bar
±0,25 %FS
±0,5 %FS @ 0…50 °C
4…20 mA, 0…10 V
Compact design
Series 26X
0…0,1 to 0…25 bar
±0,1 %FS
±0,25 %FS @ 0…50 °C
RS485, 4…20 mA, 0…10 V
High accuracy
Series 36XW
0…0,3 to 0…30 bar
±0,05 %FS
±0,1 %FS @ 0…50 °C
RS485, 4…20 mA, 0…10 V
Optimum accuracy
Series 36KyX
0…1 to 0…10 bar
±0,3 %FS
±0,5 %FS @ 0…50 °C
RS485, 4…20 mA, 0…10 V
Plastic diaphragm
Series 46X
0…0,03 to 0…0,3 bar
±0,1 %FS
±0,2 %FS @ 10…50 °C
RS485, 4…20 mA, 0…10 V
Ceramic measuring cell
Series 36XiW
0…0,3 to 0…30 bar
±0,05 %FS
±0,1 %FS @ 0…50 °C
RS485, SDI-12
Maximum resolution
Series 36XS
0…1 to 0…30 bar
±0,05 %FS
±0,2 %FS @ 0…50 °C
RS485, 4…20 mA
Reduced diameter
Series 26W
0…0,2 to 0…20 bar
±0,5 %FS
±1,25 %FS @ 0…50 °C
4…20 mA, 0…10 V
Analog only
Intrinsically Safe Level Probes
Series 26Y-Ei
0…0,1 to 0…10 bar
±0,25 %FS
±0,5 %FS @ 0…50 °C
4…20 mA, 0…10 V
Compact design
Series 36XW-Ei
0…0,3 to 0…30 bar
±0,05 %FS
±0,1 %FS @ 0…50 °C
RS485, 4…20 mA, 0…10 V
Optimum accuracy
Series 46X-Ei
0…0,03 to 0…0,3 bar
±0,1 %FS
±0,2 %FS @ 10…50 °C
RS485, 4…20 mA, 0…10 V
Ceramic measuring cell
Multi-Parameter Probes
Series 36XiW-CTD
0…0,3 to 0…10 bar
±0,05 %FS
±0,1 %FS @ 0…50 °C
RS485, SDI-12
Additional conductivity measurement
DATA LOGGERS
A variety of data logger designs for recording the pressure and temperature profile. Depending on the system, the data is read out via a plug connection or via remote transfer.
Level Loggers
DCX-22
0…10 to 0…100 mH2O
±0,1 %FS @ -10…40 °C
114'000 measuring points
ø 22 mm
Available in different versions
DCX-22AA
0…5 to 0…10 mH2O
±0,1 %FS @ -10…40 °C
114'000 measuring points
ø 22 mm
With integrated barometer
DCX-22-ECO
0…10 to 0…100 mH2O
±0,25 %FS @ -10…40 °C
114'000 measuring points
ø 22 mm
With USB interface
DCX-16
0…10 to 0…100 mH2O
±0,1 %FS @ -10…40 °C
114'000 measuring points
ø 16 mm
Slender design
DCX-25PVDF
0…10 to 0…100 mH2O
±0,1 %FS @ -10…40 °C
114'000 measuring points
ø 25 mm
Special plastic housing
DCX-38
0…0,5 to 0…3 mH2O
±0,2 %FS @ -10…40 °C
114'000 measuring points
ø 38 mm
Capacitive sensor
Multi-Parameter Loggers
DCX-22AA-CTD
0…10 to 0…100 mH2O
±0,1 %FS @ -10…40 °C
114'000 measuring points
ø 22 mm
Additional conductivity measurement
DCX-22-CTD
0…10 to 0…100 mH2O
±0,1 %FS @ -10…40 °C
114'000 measuring points
ø 22 mm
Additional conductivity measurement
Pressure Loggers
LEO-Record
-1…3 to 0…1000 bar
±0,05 %FS
±0,1 %FS @ 0…50 °C
57'000 measuring points
Measured value recording
LEO5
-1…1 to 0…1000 bar
±0,05 %FS
±0,1 %FS @ 0…50 °C
56'000 measuring points
All-rounder
LEO5-BT
-1…1 to 0…1000 bar
±0,05 %FS
±0,1 %FS @ 0…50 °C
56'000 measuring points
All-rounder with Bluetooth
21DC-RFID
0…3 to 0…1000 bar
±0,15 %FS
±0,7 %FS @ -10…80 °C
32'000 measurement pairs
Data logger with battery
Remote Transmission Units with Data Logger
ADT1-Tube
LoRa
RS485, I2C
Up to 5 years
ø 43 mm x 165 mm
For 2" monitoring pipes
ADT1-Box
LoRa
RS485, I2C
Up to 5 years
162 x 82 x 55 mm
For wall installation
ARC1-Tube
2G / 3G / 4G / NB-IoT / LTE-M / LoRa
RS485, SDI-12, analog, digital
Up to 10 years
ø 48 mm x 330 mm
For 2" monitoring pipes
ARC1-Box
2G / 3G / 4G / LoRa
RS485, SDI-12, analog, digital
Up to 10 years
200 x 100 x 81 mm
For wall installation
ARC1-Box-SB
2G / 3G / 4G / LoRa
RS485, SDI-12, analog, digital
Up to 10 years
180 x 180 x 72 mm
For intrinsically safe transmitters
DIGITAL PRESSURE GAUGES
High-quality digital manometers with easily readable displays and practical additional functions. Display units for use with KELLER transmitters or for processing standard signals from other sources.
Digital Pressure Gauges
LEX1
0…0,03 to 0…1000 bar
±0,05 %FS
±0,05 %FS @ 0…50 °C
RS485
Precision of up to 0,01 %FS
LEO1
-1…3 to 0…1000 bar
±0,1 %FS
±0,2 %FS @ 0…50 °C
none
Peak recording
LEO2
0…4 to 0…700 bar
±0,1 %FS
±0,2 %FS @ 0…50 °C
none
Compact and precise
ECO2
0…31 to 0…300 bar
±0,5 %FS
±1,0 %FS @ 0…50 °C
none
Compact and economical
LEO5
-1…1 to 0…1000 bar
±0,05 %FS
±0,1 %FS @ 0…50 °C
USB
All-rounder
LEO5-BT
-1…1 to 0…1000 bar
±0,05 %FS
±0,1 %FS @ 0…50 °C
USB, Bluetooth classic
All-rounder with Bluetooth
LEO3
-1…3 to 0…1000 bar
±0,1 %FS
±0,2 %FS @ 0…50 °C
RS485, 4…20 mA
4…20 mA output
LEO-Record
-1…3 to 0…1000 bar
±0,05 %FS
±0,1 %FS @ 0…50 °C
RS485
Measured value recording
Intrinsically Safe Digital Pressure Gauges
LEX1-Ei
0…0,03 to 0…1000 bar
±0,05 %FS
±0,05 %FS @ 0…50 °C
RS485
Precision of up to 0,01 %FS
LEO-Record-Ei
-1…3 to 0…1000 bar
±0,05 %FS
±0,1 %FS @ 0…50 °C
RS485
Measured value recording
LEO1-Ei
-1…3 to 0…1000 bar
±0,1 %FS
±0,2 %FS @ 0…50 °C
none
Peak recording
LEO2-Ei
0…4 to 0…700 bar
±0,1 %FS
±0,2 %FS @ 0…50 °C
none
Compact and precise
ECO2-Ei
-1…30 to 0…300 bar
±0,5 %FS
±1,0 %FS @ 0…50 °C
none
Compact and economical
Digital Pressure Gauges DaVinci Line
dV2
-1…3 to 0…700 bar
±0,1 %FS
±0,1 %FS @ 10…40 °C
Also available as OEM module
dV2cool
-1…40 to -1…80 bar
±0,1 %FS
±0,1 %FS @ 0…50 °C
Stored vapour pressure curves
dV2-PS
0…4 to 0…700 bar
±0,1 %FS
±0,1 %FS @ 0…50 °C
Programmable pressure switch
Indicators
EV-120
RS485
5-digit LCD display
Transmitter analog output
Display for X-line transmitters
dV22-PP
Fits to 22-PS
5-digit LCD display
RS485, 2x switch output
Programming unit for 22-PS
CA1 «Castello»
RS485, I2C, 3W (0…5 V)
5-digit LCD display
RS485, 2x switch output
Tank content calculation
WIRELESS SOLUTIONS
Devices for measuring and transmitting pressure values via wireless interfaces such as LoRa, Bluetooth, 2G, 3G, 4G and RFID. Alarm notifications, switch outputs and additional extras round out the range of functions on offer.
Remote Transmission Units
ADT1-Tube
LoRa
RS485, I2C
Up to 5 years
ø 43 mm x 165 mm
For 2" monitoring pipes
ADT1-Box
LoRa
RS485, I2C
Up to 5 years
162 x 82 x 55 mm
For wall installation
ARC1-Tube
2G / 3G / 4G / NB-IoT / LTE-M / LoRa
RS485, SDI-12, analog, digital
Up to 10 years
ø 48 mm x 330 mm
For 2" monitoring pipes
ARC1-Box
2G / 3G / 4G / LoRa
RS485, SDI-12, analog, digital
Up to 10 years
200 x 100 x 81 mm
For wall installation
ARC1-Box-SB
2G / 3G / 4G / LoRa
RS485, SDI-12, analog, digital
Up to 10 years
180 x 180 x 72 mm
For intrinsically safe transmitters
Bluetooth
LEO5-BT
USB, Bluetooth classic
5-digit LCD display
none
-1…1 to 0…1000 bar
±0,05 %FS
K-114BT
USB, Bluetooth classic
Status-LED
RS485, 0…150 mA, 0…12 V
Corresponds to connected device
Corresponds to connected device
RFID
21D-RFID
0…3 to 0…1000 bar
±0,15 %FS
±0,7 %FS @ -10…80 °C
none
Pressure transponder (passive)
21DC-RFID
0…3 to 0…1000 bar
PA-23/80263C-250
KELLER PA-23TAB/80263C
PA-23TAB/80263C
PRESSURE TRANSMITER, PIEZORESISTIVE TYPE, 4 PIN FEMALE CONNECTOR, 10 VOLT, 250 BAR,
KELLER 222155.0282
222155.0282
PRESSURE SWITCH 4-20MA 8-32VDC 0-25BAR
KELLER PS-21S/200BAR/80400.5
PS-21S/200BAR/80400.5
PRESSURE TRANSMITTER 8-28VDC 0-200BAR 4-20MA
KELLER 335332
335332
BAND HEATER 230V 770W
KELLER PK-11-AF-1
PK-11-AF-1
THERMOMETER INFRARED 24VDC 0-1000DEG 11MM/300MM
KELLER PS-31-AF-1
PS-31-AF-1
THERMOMETER 24VDC 0/4-20MA 700-1400DEGREES 100:1
KELLER PA-21SR/80520.34
PA-21SR/80520.34
KELLER PA-23TAB/250BAR/80263C
PA-23TAB/250BAR/80263C
KELLER PA-23TAB/80263C-250
PA-23TAB/80263C-250
KELLER PAA-23/1BAR/8977
PAA-23/1BAR/8977
KELLER PA-23/8711B-250
PA-23/8711B-250
PRESSURE TRANSMITTER, RANGE: 0...250 BAR, OUTPUT: 0.. 10 VOLT, SUPPLY: +/- 15 VOLT, MODEL: EMV
KELLER 0308.01102.051303.54
0308.01102.051303.54
PRESSURE TRANSMITTER, UP TO 450PSI PRESSURE LEVEL, 0-200PSI PRESSURE RANGE, 4-20MA, CABLE CONNECTION, 10FT CABLE, SS, HIGH ACCURACY, PRECISELINE SERIES
KELLER TECHNOLOGY CORP 14449-5011
14449-5011
KELLER TECHNOLOGY CORP
PRESSURE VESSEL CUSTOM OEM SST 125PSIG 300DEG F
KELLER GV90110925
GV90110925
POWER SUPPLY
SMC VQ2E2G01
VQ2E2G01
SMC
KELLER TECHNOLOGY CORPORATION
KELLER AWE-7.97A
AWE-7.97A
KELLER ELEKTRONIK AWE-7.97A - DRIVE CTRL BD
KELLER PA6-DM80259-20
PA6-DM80259-20
PRESSURE GAUGE, DIGITAL, 20BAR; OPERATING TEMPERATURE RANGE:+10 C TO +50 C; ACCURACY:0.5 ; EXTERNAL DIAMETER:76MM; EXTERNAL LENGTH / HEIGHT:103MM; IP
KELLER DM80436-300
DM80436-300
PRESSURE GAUGE, 300BAR; OPERATING TEMPERATURE RANGE:-10 C TO +80 C; ACCURACY:0.1 ; EXTERNAL DIAMETER:59MM; EXTERNAL LENGTH / HEIGHT:95MM; IP / NEMA RA
KELLER PA21SR8039532504
PA21SR8039532504
PRESSURE SENSOR; SENSOR OUTPUT:CURRENT; SUPPLY CURRENT:25MA; VOLTAGE RATING:28V; PORT STYLE:STRAIGHT; PRESSURE MEASUREMENT TYPE:SEALED GAGE; OPERATING
KELLER PR-25S/80620-55
PR-25S/80620-55
PRESSURE TRANSMITTER 0-.5BAR 20MA 28VDC
KELLER PA-23/8711B-400
PA-23/8711B-400
PRESSURE TRANSMITTER 23SERIES 400BAR 0-10V
KELLER 0507.02302.050103.13
0507.02302.050103.13
CABLE
KELLER 0507.09724.050311.54
0507.09724.050311.54
ACCULEVEL/81355
KELLER PA21R/80096.3-400
PA21R/80096.3-400
PRESSURE TRANSMITTER, 0-400BAR G; BODY MATERIAL:STAINLESS STEEL; EXTERNAL DIAMETER:17MM; EXTERNAL LENGTH / HEIGHT:76MM; HYSTERESIS:0.5%; IP / NEMA RAT
KELLER 0507.02005.050111
0507.02005.050111
SUBMERSIBLE LEVEL TRANSMITTER ACCULEVEL 30INCH WC
KELLER 0507.02105.050121
0507.02105.050121
SUBMERSIBLE LEVEL TRANSMITTER ACCULEVEL 150INCH WC
KELLER IT66/02-AF3
IT66/02-AF3
TEMPERATURE CONTROL MODULE 122-2552F 120VAC
KELLER IT50/07-AF4
IT50/07-AF4
CONTROL MODULE 0-20MA 120VAC
KELLER IT50/01-4-112
IT50/01-4-112
TEMPERATURE CONTROL 0-20MA 720V 60HZ
KELLER IT01/01-12-112
IT01/01-12-112
TEMPERATURE CONTROLLER
KELLER GE35AF1
GE35AF1
SERVO
KELLER 710-140-006
710-140-006
PRESSURE TRANSDUCER 6PSI
KELLER LEO2 / -1...3BAR / 81021
LEO2 / -1...3BAR / 81021
PRESSURE SENSOR, IP65, 0 TO 50 C, 4 BAR, ABSOLUTE, UNF, DIGITAL, 3 VDC ROHS COMPLIANT: YES
KELLER PA-23/80263B-400
PA-23/80263B-400
KELLER PL11AF1
PL11AF1
PYROMETER
KELLER VK01KAF5
VK01KAF5
CABLE
KELLER PA-21MC/30BAR/80401.11
PA-21MC/30BAR/80401.11
KELLER PA-23SY
PA-23SY
KELLER PA-22S/10BAR/80711.11
PA-22S/10BAR/80711.11
PRESSURE TRANSMITTER 0-10BAR 4-20MA
KELLER PAA-23/8465.1-1
PAA-23/8465.1-1
PRESSURE TRANSDUCER 16-36VDC
KELLER LEO1 / -1...30BAR / 81000
LEO1 / -1...30BAR / 81000
PRESSURE SENSOR, IP65, 0 TO 50 C, 30 BAR, ABSOLUTE, G1/4 (1/4 BSP), DIGITAL, 3 VDC ROHS COMPLIANT: YES
KELLER PAA-21SR/80520.3-21.0
PAA-21SR/80520.3-21.0
KELLER IT50/01-4-106
IT50/01-4-106
TEMPERATURE CONTROLLER
KELLER PA-23TAB/400BAR/80263B
PA-23TAB/400BAR/80263B
PRESSURE TRANSMITTER MALE PORT 10V 400BAR
KELLER PA-23TAB/80263B
PA-23TAB/80263B
PRESSURE TRANSDUCER 10V 400BAR
KELLER PAA-23/1BAR/8465.1
PAA-23/1BAR/8465.1
PRESSURE TRANSDUCER 16-36VDC
KELLER LEO2 / -1...30BAR / 81021
LEO2 / -1...30BAR / 81021
PRESSURE SENSOR, IP65, 0 TO 50 C, 30 BAR, ABSOLUTE, UNF, DIGITAL, 3 VDC ROHS COMPLIANT: YES
KELLER LEO2 / 300BAR / 81021.1
LEO2 / 300BAR / 81021.1
PRESSURE SENSOR, IP65, 0 TO 50 C, 300 BAR, SEALED GAUGE, UNF, DIGITAL, 3 VDC ROHS COMPLIANT: YES
KELLER PR-21SR/80520.3-6
PR-21SR/80520.3-6
PRESSURE TRANSMITTER 28VDC 4MA
PA21Y815561130
KELLER TECHNOLOGY CORP
PRESSURE TRANS
KELLER 21-142-10150
21-142-10150
PRESSURE TRANSDUCER
KELLER 27-142-10150
27-142-10150
PRESSURE TRANSDUCER
KELLER PA-22S/30BAR/80935.72
PA-22S/30BAR/80935.72
PRESSURE TRANSDUCER, HIGH PRESSURE, 4-20MA, M12 CONN, 05 TO 0250 BAR, STEEL 316L
KELLER PA-21Y/25BAR/81554.33/4-20MA
PA-21Y/25BAR/81554.33/4-20MA
PRESSURE SENSOR, -40 TO 100 C, 25 BAR, GAUGE, G1/4 (1/4 BSP), CURRENT, 28 VDC, 25 MA ROHS COMPLIANT: YES
KELLER PAA-25HT/80031.01
PAA-25HT/80031.01
KELLER PAA35XHT
PAA35XHT
PRESSURE TRANSMITTER
KELLER PS-11-AF-3
PS-11-AF-3
THERMOMETER 24VDC 0/4-20MA 0-500DEGREES 20:1
KELLER PR-21Y / 10BAR / 81554.33 / 0-
PR-21Y / 10BAR / 81554.33 / 0-
TRANSMITTER, PRESSURE, 10BAR, OPERATING PRESSURE MAX:10BAR, SENSOR OUTPUT:VOLTAGE, PRESSURE MEASUREMENT TYPE:GAUGE, VOLTAGE RATING:28VDC, PORT STYLE:G1/4 (1/4 BSP), SUPPLY CURRENT:-, PRODUCT ...
KELLER 222308.1748
222308.1748
PRESSURE TRANSMITTER,PA23SY/81796.01/350BAR/MA
KELLER 222307.0178
222307.0178
TRANSMITTER, DIFFERENTIAL PRESSURE, PD23/8666.1, 0.2 BAR /4-20 MA/G, WET / WET, 1/4 / DIN 43650, W/ MATE
KELLER PA-21Y / 100BAR / 81684.33 / 0
PA-21Y / 100BAR / 81684.33 / 0
TRANSMITTER, PRESSURE, 100BAR, OPERATING PRESSURE MAX:100BAR, SENSOR OUTPUT:VOLTAGE, PRESSURE MEASUREMENT TYPE:SEALED GAUGE, VOLTAGE RATING:28VDC, PORT STYLE:G1/4 (1/4 BSP), SUPPLY CURRENT:4 ...
KELLER PA-21SC/80400.11-16
PA-21SC/80400.11-16
KELLER PAA-33X/80794
PAA-33X/80794
KELLER 233530.0202
233530.0202
ระบบสมาชิก
DHL Express
FedEx Express
TNT Express
UPS Tracking
USPS Tracking
KERRY Express
EMS & Thailandpost Tracking
▲
▼
รายการสั่งซื้อของฉัน
รายการสั่งซื้อของฉัน
ข้อมูลร้านค้านี้
บริษัท ทีเอพี พาร์ท เอ็นจิเนียริ่ง จำกัด
บ.ทีเอพี พาร์ทฯ ก่อตั้งขึ้นเมื่อปี 2551 โดยกลุ่มวิศกรที่มีประสบการณ์ เราจำหน่าย-เป็นผู้นำเข้าสินค้าเองโดยตรงจากต่างประเทศ อาทิ เครื่องจักร อะไหล่วิศวกรรม อุปกรณ์ไฟฟ้าคอนโทรล เครื่องมือวัด และอุปกรณ์ต่างๆที่ใช้ในทุกกลุ่มอุตสาหกรรม ต่อมาด้วยประสบการณ์ต่างๆ เราสามารถขยายธุรกิจโดยการเป็นตัวแทนจำหน่าย รวมถึงบริการติดตั้งโครงการระบบควบคุมและสั่งการอุปกรณ์ไฟฟ้า
เบอร์โทร : 091-484-4332
อีเมล : info@tap-part.com
อีเมล : info@tap-part.com
ส่งข้อความติดต่อร้าน
เกี่ยวกับร้านค้านี้
ค้นหาสินค้าในร้านนี้
ค้นหาสินค้า
สินค้าที่ดูล่าสุด
บันทึกเป็นร้านโปรด
Join เป็นสมาชิกร้าน
แชร์หน้านี้
แชร์หน้านี้
↑
TOP เลื่อนขึ้นบนสุด
TOP เลื่อนขึ้นบนสุด
สินค้าในตะกร้า ({{total_num}} รายการ)
ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า
ราคาสินค้าทั้งหมด
฿ {{price_format(total_price)}}
- ฿ {{price_format(discount.price)}}
ราคาสินค้าทั้งหมด
{{total_quantity}} ชิ้น
฿ {{price_format(after_product_price)}}
ราคาไม่รวมค่าจัดส่ง
รวมภาษีมูลค่าเพิ่มแล้ว
➜ เลือกซื้อสินค้าเพิ่ม
