Bieler-Lang

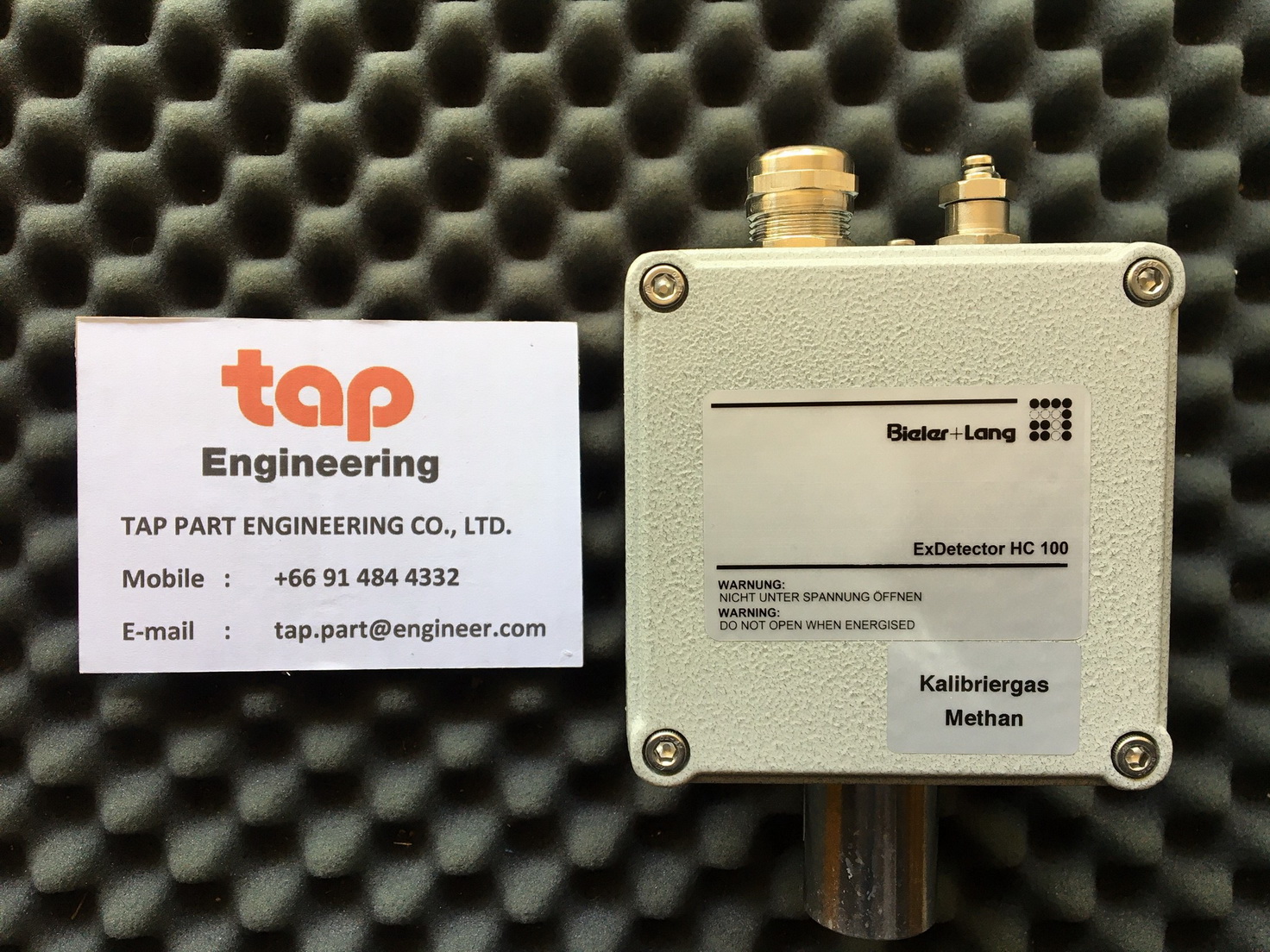

ExDetector HC100-M
Gas Detection and Warning Systems
Bieler-Lang
ExDetector HC150-M
Gas Detection and Warning Systems
Bieler+Lang Calibration box-i
Item 12.600683.5
Bieler+Lang Test gas cap type: PK 10
Item 12.100954.2

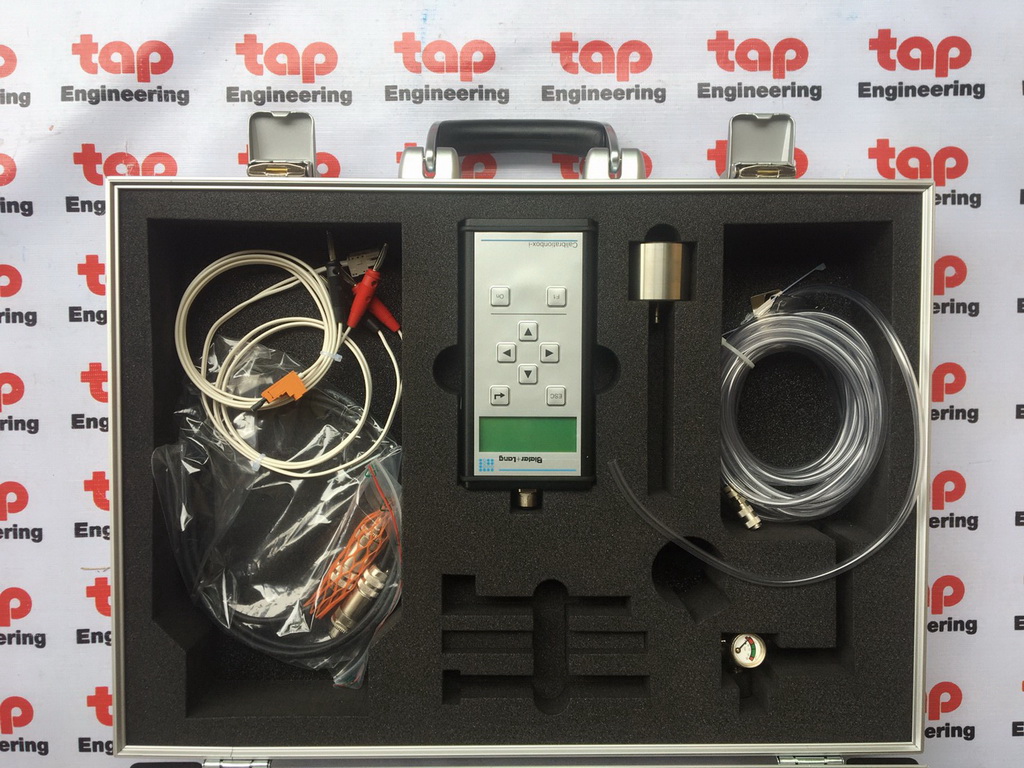

Bieler+Lang Calibration kit in aluminium case
Item 12.600355.3
ต้องการสอบถามราคา รายละเอียดสินค้า กรุณาแจ้งยี่ห้อ รุ่น จำนวน เข้ามาที่
Mobile: 091-484-4332
Email: tap.part@engineer.com
Explosive & flammable gases
Detector
ExDetector HC100
ExDetector HC150
ExDetector HC200
ExDetector SC 220
GMC 8420
GMC 8022
GMC 8022E
Toxic gases, CO² & Oxygen
Detector
Exmonitor
GasDetector IR 220
Gasmonitor
Bieler + Lang GmbH 2022
Table of contents
Introduction.............................................................................................................................................2
1. Compact Gas Detection System GMC EcoLine.................................................................................3
1.1 Optional accessories for GMC EcoLine...........................................................................................................3
2. Control Units........................................................................................................................................4
2.1 Series GMC 8022 (E) with function approval subject to ATEX.........................................................................4
2.2 Series GMC 8420............................................................................................................................................ 4
2.3 Series GMC 8364............................................................................................................................................ 5
3. Detectors with 4-20mA output............................................................................................................6
3.1 Detectors for explosive Gases and Vapours....................................................................................................6
3.2 Accessories for Detectors of ExDetector IRMax Series...................................................................................8
3.3 Detectors for toxic Gases and Oxygen- Electrochemical and Zirconiumoxide Cells........................................9
3.4 Detectors for toxic Gases and Oxygen- Electrochemical and IR cells...........................................................10
with Ex-certification for Ex-Zone 1+2...................................................................................................................10
3.4.1 Safety Barriers for Detectors of Exmonitor Series....................................................................................10
3.5 Detectors for Refrigerant (Frigene) & Carbon Dioxide...................................................................................11
4. Warning systems for underground car parks.................................................................................12
4.1 Controller Multiscan (BUS-Technology).........................................................................................................12
4.1.1 Detectors for Multiscan............................................................................................................................13
4.1.2 Services - net prices for Multiscan...........................................................................................................13
4.1.3 Accessories for Multiscan........................................................................................................................14
4.2 Emergency power supplys for underground car parks...................................................................................14
4.3 Optical and acoustic alarm devices for underground car parks......................................................................15
5. Supplements and Accessories.........................................................................................................17
5.1 Power Supplies for 24 V Controllers..............................................................................................................17
5.2 Emergency power supplies............................................................................................................................17
5.3 Other accessories.......................................................................................................................................... 18
5.4 Optical signal transmitters..............................................................................................................................19
5.5 Acoustic & combined signal transmitters........................................................................................................20
5.7 Solenoid valves.............................................................................................................................................. 21
5.8 Maintenace equipment...................................................................................................................................22
6. Housing and 19“ technology............................................................................................................26
6.1 Rack and panel mounting housing.................................................................................................................26
6.2 Wall mounting housing and stand alone socket.............................................................................................26
6.3 Distribution box for wall mounting controller units..........................................................................................26
6.4 Accessories for wall mounting housing and stand alone sockets...................................................................26
7. Sensors and spare parts...................................................................................................................27
7.1 Spare sensors................................................................................................................................................ 27
7.2 Spare parts for maintenance..........................................................................................................................30
7.3 Test gas pressure cans..................................................................................................................................31
8. Relays und relay cards......................................................................................................................32
9. Engineering services – net prices....................................................................................................33
9.1 Wiring costs for 19“ rack modules type GMC 8022 E....................................................................................33
9.2 Wiring costs for wall mounting housing KFV..................................................................................................33
9.3 Wiring costs for gas measuring computer type GMC 8364............................................................................33
9.4 Wiring costs for gas measuring computer type GMC 8304 or 8420 (40.100000)...........................................33
10. Change log.......................................................................................................................................34
All prices are net prices!
www.bieler-lang.de Price list 2022 | valid from 01.10.2022 | V2.0 | 1/34
Introduction
Introduction
Dear customer,
dear business partner,
thank you very much for your interest in our products.
Bieler+Lang is your competent partner for safety equipment and work safety.
Toxic and explosible gases and vapours may appear in many areas. We help you to protect
people, environment technical equipment and assets in an optimal way from damage with
serious consequences. Our products warn for more than 50 years at the right time and safely
from gas accidents and explosions.
Therefore trust in Bieler+Lang!
Please have a look at our products on the following pages.
We individually adjust the measuring system to your needs at project planning. For a smooth
project process, the following steps are recomended:
• Proje ct inspection
• Consultation about the local regulations
• project planning according to your needs
All inquiries about concerning projects please direct to: info@bieler-lang.de
Please also have a look at our new webpage: www.bieler-lang.de
Best regards
Your Team from Bieler+Lang !
Short Index of Abreviations for the following price list:
Measuring priciples:
WT Wärmetöner/ katalytic combustion/ Pellistor
IR Infrared
HL Halbleiter/semiconductor
EC Electrochemical measuring cell
ZRO Zirkonium doixide
Other shortcuts:
AS Alarm Threshold
IP International Protection
GMC Gas measuring computer
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 2/34
1. Compact Gas Detection System GMC EcoLine
1. Compact Gas Detection System GMC EcoLine
for private and public buildings as well as small business
Device Application Measuring
principle EX-zone Part Number Price/€
GMC EcoLine 8304
Control unit
wall mounting
2 alarm thresholds
max. 4 detectors type
GM EcoLine HC-50
tested according to
EN 50194
TÜV approval
- - 12.600742.2 650,00
GM EcoLine HC-50
Detector for methane,
propane & butane in
private and public areas
as well as small
businesses
WT - 12.600739.3 160,00
Calibration of the detectors ex works
to explosive gases (Methane, Propane or Butane) 30.200001
1 – 4 detectors /piece 5 – 10 detectors /piece from 11 detectors/piece
35,00 € 30,00 € 25,00 €
1.1 Optional accessories for GMC EcoLine
Device Characteristics U / I IP Part number Price/€
Flashing beacon light
red
Mounting on EcoLine
connection PG29
Xenon-flash 0,75 Hz/ 1 Ws
230V AC/
30mA 65 12.600790 147,00
Flashing beacon light
red
Wall mounting
Xenon-flash 0,75 Hz/ 1 Ws
230V AC/
30mA 65 12.600791 180,00
Power supply
Spare power supply for
GMC 8304 and GMC 8420
Input: 230V/ AC
Output: 22 – 27,6V/ DC
24V DC/
max. 1,1A - 12.076782.2 33,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 3/34
2. Control Units
2. Control Units
2.1 Series GMC 8022 (E) with function approval subject to ATEX
Device Application AS
max.
detector
number
Part number Price/€
Gas measuring computer 8022
Wall mounting (top
hat rail
function approval
SIL 1
230 V/AC o. 24V/DC
IP 30
94 x 157 x 60 mm
2 2 12.600534.5 460,00
Gas measuring computer 8022 E
19“ technology
function approval
SIL 1
24 V/DC
12 TE, 3 HE
2 2 12.600602.3 450,00
Gas measuring computer
8022 E – 4-20
With additional
4-20 mA measuring
signal output
2 2 12.600600.3 635,00
2.2 Series GMC 8420
Device Application AS
max.
detector
number
Part number Price/€
Gas measuring computer 8420
Wall mounting, IP44
230 V/AC & 24 V/DC
2 4 12.600765.2 713,00
Additional relais output board
RK 8420
Wall mounting, IP44
optional extention of
relay outputs of GMC
8420 or GMC 8304
- - 12.101078.1 298,00
Notice: All control units in 19“ type and panel housing are 24V/DC versions.
Under certain circumstances a different power supply is required!
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 4/34
2. Control Units
2.3 Series GMC 8364
Device Application AS
max.
detector
number
Part number Price/€
Gas measuring computer 8364
including relay output DIO 18
Panel housing
without
detector input card
3 64 12.100907.1 797,00
Analog detector input card AI 8 For the connection of
max. 8 detectors - 8 12.100901 146,00
Analog detector input card AI 16 For the connection of
max.16 detectors - 16 12.100900 206,00
Relay output card DIO 32 For the connection of
max. 32 relays - - 12.100909.4 341,00
Cable set GMC 8364 connection - - 12.600689 221,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 5/34
3. Detectors with 4-20mA output
3. Detectors with 4-20mA output
3.1 Detectors for explosive Gases and Vapours
Measuring range 0 – 100 % LEL
Device Application Measuring
principle
EXzone
Part number Price/€
ExDetector HC 150
for gases and vapours
SIL 1
with function approval
subject to ATEX
WT 2 12.600764.3 350,00
ExDetector HC 150 C2H2
for acetylene
SIL 1
with function approval
subject to ATEX
WT 2 12.600769.3 350,00
ExDetector HC 150 K
for gases and vapours
suitable for duct
mounting
SIL 1
with function approval
subject to ATEX
WT 2 12.600766.3 575,00
ExDetector SC 220 M for gas goup: methane HL 2 12.600758.3 533,00
ExDetector SC 220 P for gas goup: propane HL 2 12.600755.3 529,00
ExDetector SC 220 S for gas goup: freons HL 2 12.600759.5 555,00
ExDetector HC 200
for gases and vapours
internal thresholds
sensor like ExDetector
HC 100 with function
approval
WT 2 12.600740.4 548,00
ExDetector HC 200 C2H2
for acetylene
internal thresholds
sensor like ExDetector
HC 100 with function
approval
WT 2 12.600763.2 548,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 6/34
3. Detectors with 4-20mA output
Device Application Measuring
principle
EXzone
Part number Price/€
ExDetector HC 100 M
for gases and vapours
SIL 1
with function approval
subject to ATEX
WT 1+2 12.600691.3 647,00
ExDetector HC 100 T +
ExDetector HC 100 K
for gases and vapours
SIL 1
suitable for duct
mounting
detector elektronics (T)
und sensor module (K)
for remote duct detector
with function approval
subject to ATEX
WT 1+2
12.600693.3
+
12.600692.3
1.069,00
ExDetector IRMax
with IS barrier
Ready for connection with
mounting plate and
connection cable
Gas group methane,
other gases upon request
EX-certification
subject to ATEX
SIL 2
IR 1+2 12.600812.1 2.498,00
ExDetector IRMax
with IR Display
Ready for connection with
mounting plate and
connection cable
Gas group methane,
other gases upon request
with display
EX-certification
subject to ATEX
SIL 2
IR 1+2 12.600815.0 2.498,00
Calibration of the detectors ex works
to explosive gases 30.200001
1 – 4 detectors /piece 5 – 10 detectors /piece from 11 detectors/piece
35,00 € 30,00 € 25,00 €
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 7/34
3. Detectors with 4-20mA output
3.2 Accessories for Detectors of ExDetector IRMax Series
Device Description Part number Price/€
EX-Socket
- cable gland:
2 x M25 for cable Ø 10-17 mm
- connector:
6 x 2,5 mm² + 2 x 2,5 mm² PE
- II 2 G Ex e IIC T5/T6 Gb
- BVS 16 ATEX E 031
- IP66
12.077130.1 168,00
CalBox IRMax
- handheld calibration device
- IR Display - hand - held version
- with 1,5 meter connection cable
12.077132.0 820,00
PK15 Tet gas cap for IRMax 12.101234.0 110,00
IRMax protection cap Weather proof cap 12.071323.0 332,00
IRmax insect
protection
Dirt filter
stainless steel mesh filter
pore diameter: 100 μm
12.071325.0 41,00
IRmax spare mirror
with fitting
Mirror spare part set
contains one mirror and one mirror
holder/fitting
12.071324.0 161,00
IRmax plug connector 3-pole plug for field cable 12.071254.0 35,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 8/34
3. Detectors with 4-20mA output
3.3 Detectors for toxic Gases and Oxygen- Electrochemical and Zirconiumoxide Cells
Device Gas type Measuring
range
Part number Price/€
Gasmonitor O2-25 Oxygen 0 – 25 vol% 12.600565.3 385,00
Gasmonitor CO-1000 Carbon monoxide 0 – 1000 ppm 12.600566.2 620,00
Gasmonitor CO-1000 HK Carbon monoxide 0 – 1000 ppm 12.600694.1 652,00
Gasmonitor H2S-50 Hydrogen sulphide 0 – 50 ppm 12.600567.2 692,00
Gasmonitor SO2-20 Sulphur dioxide 0 – 20 ppm 12.600569.2 845,00
Gasmonitor NO-100 Nitrogen monoxide 0 – 100 ppm 12.600571.2 802,00
Gasmonitor NO2-20 Nitrogen dioxide 0 – 20 ppm 12.600572.2 622,00
Gasmonitor Cl2-20 Chlorine 0 – 20 ppm 12.600573.2 692,00
Gasmonitor H2-1000 Hydrogen 0 – 1000 ppm 12.600574.2 833,00
Gasmonitor HCN-100 Hydrogen cyanide 0 – 100 ppm 12.600575.2 914,00
Gasmonitor HCL-100 Hydrogen chloride 0 – 100 ppm 12.600576.2 939,00
Gasmonitor NH3-200 Ammonia 0 – 200 ppm 12.600618.2 639,00
Gasmonitor NH3-1000 Ammonia 0 – 1000 ppm 12.600619.2 639,00
Gasmonitor O3 Ozone 0 – 2 ppm 12.600608.2 914,00
Gasmonitor CO 324 Carbon monoxide 0 – 300 ppm 12.600756.2 287,00
Gasmonitor ZrO2-25
Oxygen
Measuring principle:
zirconiumoxide cell
0 – 25 vol% 12.600611.2 653,00
Calibration of the detectors ex works
to toxic gases 30.200002
to oxygen 30.200003
1 – 4 detectors /piece 5 – 10 detectors /piece from 11 detectors/piece
35,00 € 30,00 € 25,00 €
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 9/34
3. Detectors with 4-20mA output
3.4 Detectors for toxic Gases and Oxygen- Electrochemical and IR cells
with Ex-certification for Ex-Zone 1+2
Device Gas Type Measuring
range
Part number Price/€
Exmonitor O2-25 Oxygen 0 – 25 vol% 12.600579.5 875,00
Exmonitor CO-1000 Carbon monoxide 0 – 1000 ppm 12.600580.4 1.155,00
Exmonitor CO-1000 HK Carbon monoxide 0 – 1000 ppm 12.600695.4 1.187,00
Exmonitor H2S-50 Hydrogen sulphide 0 – 50 ppm 12.600581.4 1.227,00
Exmonitor SO2-20 Sulphur dioxide 0 – 20 ppm 12.600583.4 1.363,00
Exmonitor NO-100 Nitrogen monoxide 0 – 100 ppm 12.600585.4 1.319,00
Exmonitor NO2-20 Nitrogen dioxide 0 – 20 ppm 12.600586.4 1.157,00
Exmonitor Cl2-20 Chlorine 0 – 20 ppm 12.600587.4 1.227,00
Exmonitor H2-1000 Hydrogen 0 – 1000 ppm 12.600588.4 1.402,00
Exmonitor HCN-100 Hydrogen cyanide 0 – 100 ppm 12.600589.4 1.431,00
Exmonitor HCL-100 Hydrogen chloride 0 – 100 ppm 12.600590.4 1.456,00
Exmonitor NH3-200 Ammonia 0 – 200 ppm 12.600616.4 1.174,00
Exmonitor NH3-1000 Ammonia 0 – 1000 ppm 12.600617.4 1.174,00
Note: Please note that for the use of detectors of the Exmonitor series, a safety barrier is compulsory for operation in
Explosion protected (EX-) areas!
3.4.1 Safety Barriers for Detectors of Exmonitor Series
Device Type Part number Price/€
Isolation transmitter For two channels 12.600697.3 426,00
Calibration of the detectors ex works
to toxic gases 30.200002
to oxygen 30.200003
1 – 4 detectors /piece 5 – 10 detectors /piece from 11 detectors/piece
35,00 € 30,00 € 25,00 €
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 10/34
3. Detectors with 4-20mA output
3.5 Detectors for Refrigerant (Frigene) & Carbon Dioxide
Device Gas Type Measuring
range
Part number Price/€
GasDetector IR220 CO2-2 Carbon doixide 0 – 2,0 vol% 12.600810.0 665,00
GasDetector IR220 CO2-5 Carbon doixide 0 – 5,0 vol% 12.600811.0 665,00
GasDetector IR220 R1233zd
with Ref. Gas R407a Frigene R1233zd 0 – 5000 ppm 12.101193.0 +
12.071261.0 1.020,00
GasDetector IR220 R1234yf Frigene R1234yf 0 – 2000 ppm 12.101193.0 +
12.071241.0 1.020,00
GasDetector IR220 R1234ze Frigene R1234ze 0 – 2000 ppm 12.101193.0 +
12.071243.0 1.020,00
GasDetector IR220 R134a Frigene R134a 0 – 2000 ppm 12.101193.0 +
12.071236.0 1.020,00
GasDetector IR220 R32 Frigene R32 0 – 2000 ppm 12.101193.0 +
12.071257.0 1.020,00
GasDetector IR220 R404a Frigene R404a 0 – 2000 ppm 12.101193.0 +
12.071237.0 1.020,00
GasDetector IR220 R407a Frigene R407a 0 – 2000 ppm 12.101193.0 +
12.071326.0 1.020,00
GasDetector IR220 R407f Frigene R407f 0 – 2000 ppm 12.101193.0 +
12.071333.0 1.020,00
GasDetector IR220 R410a Frigene R410a 0 – 2000 ppm 12.101193.0 +
12.071238.0 1.020,00
GasDetector IR220 R449a Frigene R449a 0 – 2000 ppm 12.101193.0 +
12.071242.0 1.020,00
GasDetector IR220 R452a Frigene R452a 0 – 2000 ppm 12.101193.0 +
12.071263.0 1.020,00
GasDetector IR220 R513a Frigene R513a 0 – 2000 ppm 12.101193.0 +
12.071264.0 1.020,00
GasDetector IR220 SF6 Frigene SF6 0 – 2000 ppm 12.101193.0 +
12.071251.0 1.074,00
Calibration of the detectors ex works
to refrigerant (frigene) 30.200004
1 – 4 detectors /piece 5 – 10 detectors /piece from 11 detectors/piece
35,00 € 30,00 € 25,00 €
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 11/34
4. Warning systems for underground car parks
4. Warning systems for underground car parks
4.1 Controller Multiscan (BUS-Technology)
Device Application AS
Max.
detector
number
Part
number Price/€
Detection system
Multiscan ++PK-8D
According to EN 50545-1 for
underground car parks and
tunnels
Technical Data:
max. 8 detectors with RS485-
communication and connection
to data bus (SMART-P1)
outputs: 5 Relays, optional up to
max. 16 open collector
Serial interfaces:
1 x RS485
Voltage: 24V DC
Power consumption: Max. 10 VA
Display: LCD
Wall mounting (top hat rail) 9 TE
H/W/D: 90 x 158,5 x 60
3 8 12.101260.0 887,00
Detection system
Multiscan ++PK16
According to EN 50545-1 for
underground car parks and
tunnels
Technical Data:
max. 16 detectors with RS485-
communication and connection
to data bus (SMART-P1)
outputs: 6 Relays, optional up to
max. 32 open collector
Serial interfaces:
1 x RS485
1 x RS232 internet connection
TCP/IP-Modul (optional)
Voltage: 100-120 V AC or 200-
240 V AC, selectable at a switch
at the power supply
Power consumption: Max. 10 VA
Display: LCD
Design: 19“ module rack
6 HE
3 16 12.101203.0 1.733,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 12/34
4. Warning systems for underground car parks
Device Application AS
Max.
detector
number
Part
number Price/€
Detection system
Multiscan ++PK32
see AWS Mutliscan ++PK16
max. 32 detectors
Output: 8 relays, optional up to
max. 64 open collector
Serial interfaces:
2 x RS485
1 x RS232 internet connection
TCP/IP-Modul (optional)
3 32 12.101150 2.166,00
Detection system
Multiscan ++PK64
see AWS Mutliscan ++PK32
max. 64 detectors
output: 8 Relays, optional up to
max. 128 Open Collector
3 64 12.101151 2.339,00
Output card
STG/OUT16-S
16 alarm outputs open
collector, Max. 20mA
internal interface:
Via RS485
supply voltage:
12/24 V/DC
- - 12.101152.0 266,00
Input card
STG/IN8-S
8 sensor inputs 4-20mA
internal interface:
Via RS485
supply voltage:
12/24 V/DC
- - 12.101159.0 266,00
BUS-PCB STG/SER For an additional bus line - - 12.101154 106,00
Fan control module
To control fan stage 1 & stage 2,
warning transparent screen and
signal horns
- - 12.999999 88,00
4.1.1 Detectors for Multiscan
Device Characteristics Measuring
range Part number Price/€
Smart P1 CO
Measured gas : carbon monoxide
Measuring principle: electrochemical cell
measuring signal: RS485-BUS
power supply: 9 – 30 V/DC
protection: IP 54
0 – 300 ppm 12.600800.1 212,00
Smart P1 NO2 Measured gas: nitrogen dioxide 0 – 30 ppm 12.600801.1 283,00
4.1.2 Services - net prices for Multiscan
Wiring costs Part number Price/€
For Multiscan ++PK-8D in a KFV incl. wiring of emergency power supply 40.100000 160,00
For Multiscan ++PK16 , ++PK32, ++PK64, ... in the desired housing incl. wiring of an emergency
power supply 40.100000 400,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 13/34
4. Warning systems for underground car parks
4.1.3 Accessories for Multiscan
Device Description Part number Price/€
Calbox
STS/CKD-PK Hand held calibration device for detector type Smart P1 12.101254.0 221,00
4.2 Emergency power supplys for underground car parks
Device Type U I Part number Price/€
LGH 3 Top hat rail 24V/ DC 3A 12.600625 345,00
In combination with U Ah Part number Price/€
Storage Battery 2,2
Ah
12V/ 2,2Ah storage battery
always 2 pieces needed.
For the supply of max.
6 warning transparents 24V/ DC 1h
12V/ DC 2,2 12.070900.1 38,00
Device Type U I Part number Price/€
LGH 6 Top hat rail 24V/ DC 6A 12.600781 570,00
In combination with U Ah Part number Price/€
Storage Battery 7,2
Ah
12V/ 2,2Ah storage battery
always 2 pieces needed.
For the supply of max.
18 warning transparents 24V/ DC 1h
12V/ DC 7,2 12.070899.1 55,00
Storage Battery 12 Ah
12V/ 2,2Ah storage battery
always 2 pieces needed.
For the supply of max.
32 warning transparents 24V/ DC 1h
12V/ DC 12 12.070898.1 73,00
Storage Battery 26 Ah
12V/ 2,2Ah storage battery
always 2 pieces needed.
For the supply of max.
70 warning transparents 24V/ DC 1h
12V/ DC 26 12.070901.1 162,00
Device Type U Ah Part number Price/€
Mirco USV 3,3 Ah
(3G DIN2)
incl. Storage Battery
Top hat rail
BxHxT: 100x124x122 mm
For the supply of max.
6 warning transparents 24V/ DC 1h
in KFV 1+1 in combination with
Multiscan ++PK-8D
24V/ DC 3,3 12.077002 683,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 14/34
4. Warning systems for underground car parks
4.3 Optical and acoustic alarm devices for underground car parks
Device Description U IP Part number Price/€
LT-E-SCHILD-KTG-24V B
Warning transparent screen
pictograph for underground
car parks
light color: yellow, flashing
Flasher unit in light bar
only in combination with
LT-ZS-AB2
W/H/D 605/187/22mm
with pictograph "turn off
engine / leave car park"
according VDI-regulation
2053
with TÜV-SÜD certification
incl. Mounting flaps for walland
ceiling mounting
24V/ DC 54 12.077172.0 107,00
LT-ZS-AB2
Connection box for warning
transparent screen 24V
W/H/D 105/105/55mm
24V/ DC 55 12.077170.0 22,50
LT-E-SCHILD-KTG-24V
Warning transparent screen
pictograph for underground
car parks
light color: yellow
only in combination with
LT-E-ABAKKU-4C-5
W/H/D 605/187/22mm
with pictograph "turn off
engine / leave car park"
according VDI-regulation
2053
with TÜV-SÜD certification
incl. Mounting flaps for walland
ceiling mounting
24V/ DC 54 12.076793.1 103,00
LT-E-ABAKKU-4C-5
Connection box for warning
transparent screen
input 230V/AC
output 10V o. 24V/DC
W/H/D 105/105/55mm
incl. Lithium-iron phosphatestorage
battery
Battery in emergency power
supply ≥ 60 Minuten
230V/ AC 55 12.077171.0 197,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 15/34
4. Warning systems for underground car parks
Device Description U IP Part number Price/€
LT-ZS-AWST
Accoustic signal emitter
≥ 95 dB(A)
for installation in connection
box
230V AC - 12.077173.0 28,00
LT-ZS-AW24 see LT-ZS-AWST but
24V/DC 24V/ DC - 12.077174.0 28,00
Spare storage battery for old WT TG
6V / 3,8Ah 6V/ DC - 12.077082 35,00
Spare storage battery for LT-KTG-Akku
12V/ 0,8Ah 12V/ DC - 12.077019 45,00
Spare storage battery for LT-E-ABAKKU-4C-5 12V/ DC - 12.077178.0 45,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 16/34
5. Supplements and Accessories
5. Supplements and Accessories
5.1 Power Supplies for 24 V Controllers
Device Type U I Part Number Price/€
NGH 241 W top hat rail 24V/ DC 1,3 A 12.076949.0 125,00
NGH 245 W top hat rail 24V/ DC 5 A 12.077179.0 270,00
NGH 2410 W top hat rail 24V/ DC 10 A 12.077180.0 376,00
NGH 2420 PRO top hat rail 24V/ DC 20 A 12.077192.0 676,00
TXL 060-24S open frame 24V/ DC 2,5 A 12.076908.1 107,00
Other power supplies or special versions available upon request
5.2 Emergency power supplies
Device Type U I Part Number Price/€
LGH 3 top hat rail 24V/ DC 3 A 12.600625 345,00
LGH 6 top hat rail 24V/ DC 6 A 12.600781 570,00
LGH 10
incl. Battery controller
top hat rail
- not for KFV - 24V/ DC 10 A 12.600626 380,00
LGH 20 top hat rail 24V/ DC 20 A 12.600799.0 439,00
Micro USV 0,8 Ah
(3D DIN1)
incl. Storage Battery
top hat rail
W/H/D: 100x124x82 mm
24V/ DC - 12.077001 474,00
Mirco USV 3,3 Ah
(3G DIN2)
incl. Storage Battery
top hat rail
W/H/D 100x124x122 mm
24V/ DC - 12.077002 683,00
NSV AXS2 1,2Ah
wall mounting
IP30
W/H/D: 243x195x96 mm
2x Storage Battery 12V/ 1,2Ah
included
for supply of 1x GMC EcoLine
8304 or 1x KFV
24V/ DC 1 A 12.600797 342,00
Device U Ah Teilenummer Preis/€
Storage Battery 1,2 Ah only for use in combination with
NSV AXS2 12V/ DC 1,2 12.077181.0 25,00
Storage Battery 2,2 Ah 12V/ DC 2,2 12.070900.1 38,00
Storage Battery 7,2 Ah 12V/ DC 7,2 12.070899.1 55,00
Storage Battery 12 Ah 12V/ DC 12 12.070898.1 73,00
Storage Battery 26Ah 12V/ DC 26 12.070901.1 162,00
Storage Battery 42 Ah 12V/ DC 42 12.070903.1 214,00
Note: Two storage batteries are needed for each charger!
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 17/34
5. Supplements and Accessories
5.3 Other accessories
Device Description Part number Price/€
SE 1
Flaoting device for
several detectors
incl. splash proof housing
(12.600738.2)
12.600696.1 891,00
SWSG
splash proof housing for several
Detectors
made of stainless steel V4A
12.600738.2 321,00
Maintenance module
WE2018-E
19“-plug-in-device
key switch with buzzer
to suppress Alarms
12.600792 342,00
WS 1
Warning sign „Gasalarm“
200 x 300 mm
rigid foam plate
12.250657 67,00
signboard „Gasalarm“
Sign yellow, lettering black
150 x 60 x 3 mm
rigid foam plate
12.250679 19,50
signboard „O2-defizit“
Sign yellow, lettering black
150 x 60 x 3 mm
rigid foam plate
12.250685.0 19,50
signboard „CO2-Alarm“
Sign yellow, lettering black
150 x 60 x 3 mm
rigid foam plate
12.250686.0 19,50
other inscriptions for the signs upon request
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 18/34
O2-DEFIZIT
GASALARM
Gasalarm
CO2-ALARM
5. Supplements and Accessories
5.4 Optical signal transmitters
Device Description U IP Part number Price/€
LT-E-SCHILD-1R-24 B
Warning transparent
screen „Gasalarm“ red
flashing
W/H: 305x147mm
Flasher unit in light bar
24V/ DC 54 12.076797.1 139,00
LT-ZS-AB2
Connection box for
warning transparent
screen 24V
W/H/D105/105/55mm
- 55 12.077170.0 21,00
LT-E-SCHILD-1R-24
Warning transparent
screen „Gasalarm“ red
W/H: 305x147mm
Only in combination with
LT-E-ST230-5
24V/ DC 54 12.076798.1 125,00
LT-E-ST230-5
Connection box for
warning transparent
screen 24V
W/H/D 105/105/55mm
with control electronics
230V/ AC 55 12.076795.1 104,00
LT-ZT-K1
Additional price
warning transparent
screen readable from both
sides
- 54 12.077175.0 45,00
LT-IP65-K1
Additional price
warning transparent
screen IP65
- 65 12.077176.0 28,00
LT-IP65-AB Additional price
connection box IP65 - 65 12.077177.0 7,80
Other inscriptions for the warning transparent are possible on request at no extra charge.
E.g. O2-defizit, CO2-Alarm or Refrigerant Leakage
BL 24
Flashing beacon red
5Ws/ 1 Hz Xenon-flash
ø100 x 150mm
Insertion M20x1,5 o. 5-
7mm rubber fittings
-25 °C up to+50 °C
with wall holder
24V/ DC
300mA 65 12.600760.1 177,00
BL 220 Flashing beacon red 230V/ AC
35mA 65 12.600761.1 172,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 19/34
5. Supplements and Accessories
Device Description U IP Part number Price/€
BL 24 EX
Flashing beacon red
EX-Version
with cable
1 – 2 Hz LED-flash
Ex d IIC T5 Gb
-50 °C up to+70 °C
24V/ DC
300mA 67 12.600539.2 1.085,00
BL 220 EX
Flashing beacon red
EX-Version
with cable
230V/ AC
48mA 67 12.600461.2 1.060,00
cable for retrofitting Cable with encapsulated
fittings for retrofitting - - 12.101219.0 143,00
5.5 Acoustic & combined signal transmitters
Device Description U IP Part number Price/€
SH 24
Signal horn for indoor or
outdoor mounting
100 dB(A), 1m
3 sounds adjustable
W/H/D 177/84/94mm
Insertion: 5-7mm rubber
fittings
24V/ DC
62mA 65 12.600538.1 77,00
SH 220
Signal horn for indoor or
outdoor mountin
identical as SH 24
230V/ AC
3mA 65 12.600306.1 70,00
SH 24 EX
Signal horn in
EX- Version
approximately 108 dB(A),
1m
W/H/D 345/133/140mm
insertion: M20x1,5
II 2 G Ex e mb II T5
-20 °C up to +60 °C
24V/ DC
0,3A 54 12.600554.1 993,00
SH 230 EX
Signal horn in
EX- Version
identical as SH 24 EX
except temperature range:
-20 °C up to +50 °C
230V/ AC
70mA 54 12.600460.1 829,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 20/34
5. Supplements and Accessories
Device Description U IP Part number Price/€
SONFL 1 24V
Signal transmitter with
beacon
100 dB(A), 1m
3 sounds adjustable
5Ws/ 1 Hz Xenon-flash
-25 °C up to +55 °C
24V/ DC
Hu: 25mA
Bl: 250mA
66 12.600783 170,00
SONFL 1 230V
Signal transmitter with
beacon
identical as SONFL 1 24V
230V/ AC
Hu: 13mA
Bl: 35mA
66 12.600782 189,00
Flashni 24V
Signal transmitter with
beacon
101dB (A), 1m
0,7Ws/1 Hz Xenon-flash
24V/ DC
68mA 65 12.600795 150,00
Flashni 230V Signal transmitter with
beacon 230V/ AC 65 12.600795 +
2x 12.600805.0 207,00
Other signal transmitters (guard posts, signal horns, signal lights etc.) deliverable upon request.
5.7 Solenoid valves
Device Type Pressure Connection Part number Price/€
Solenoid valve ½“ ZEVL15-ES 360mbar Screw thread 12.600380.2 161,00
Solenoid valve ¾“ ZEVL20-ES 360mbar Screw thread 12.600381.2 178,00
Solenoid valve 1“ ZEVL25-ES 360mbar Screw thread 12.600382.2 202,00
Solenoid valve 1 ¼“ ZEVL32-ES 360mbar Screw thread 12.600383.2 319,00
Solenoid valve 1 ½“ ZEVL40-ES 360mbar Screw thread 12.600384.2 351,00
Solenoid valve 2“ ZEVL50-ES 360mbar Screw thread 12.600385.2 366,00
Solenoid valve DN 65 ZEVFL65-ES 360mbar Flange 12.600388.2 862,00
Solenoid valve DN 80 ZEVFL80-ES 360mbar Flange 12.600389.2 1.010,00
Solenoid valve DN 100 ZEVFL100 200mbar Flange 12.600390.2 1.522,00
Solenoid valve DN 125 ZEVFL125 200mbar Flange 12.600452.2 2.386,00
Solenoid valve DN 150 ZEFVL150 200mbar Flange 12.600453.2 2.547,00
Our new gas solenoid valves with „runcool“-technology lower the electricity comsumption up to 50 % and run cooler.
They have a signifficantly lower operating temperature (up to 30%) and an increase on safety and efficiency.
They only use a fraction of the energy of traditional gas solenoid valves, which helps you to reduce electricity costs and lowers
your CO2-footprint.
A red LED at the connection box indicates, if the solenoid valve is open.
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 21/34
5. Supplements and Accessories
5.8 Maintenace equipment
Device Description, Version Part number Price/€
Calibration Box i
For detectors of series ExDetector and
GasMonitor CO-324
including connection cable
12.600683.5 696,00
CB02
For detector GasDetector IR220 incl. Connection
cable
without Stick CB02
12.600794.0 660,00
Stick CB02 for firmware GasDetector IR220 12.600807.0 82,00
Cable CBGMO300 Connection cable Calibration Box →
Gasmonitor CO 300 & CO 324 12.100974.1 68,00
CableCBExDe02 Connection cable Cal-Box → ExDetector –
2 meters 12.100942.2 74,00
Cable CBExDe10 Connection cableCal-Box → ExDetector –
10 meters 12.101021.1 106,00
Cable CBExDe20 Connection cable Cal-Box → ExDetector –
20 meters 12.101124 114,00
Battery
Spare battery for Calibration Box i and CB02
certified according to ATEX-conformity
Type AA, 1,5V zinc-carbon-battery (ZnC)
4 pieces are required!
12.070946.1 1,80
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 22/34
5. Supplements and Accessories
Device Description/ Version Part number Price/€
Cable ExDe150 Measuring cable for detector ExDetector HC150 12.101080 26,00
Cable GMO Measuring cable for detector Gasmonitor 12.100403 24,00
Cable USB USB interface cable for GMC 8420 12.101083 +
12.101052 154,00
Test case
Calibration kit in aluminum case incl. Extraction
unit with test gas hose and measuring cable for
ExDetector HC 150 and measuring cable for
GasMonitor
12.600355.2 397,00
Hose 2m Spare-PVC- test gas hose 2 meters with fast
connector coupling 12.101205.0 22,00
Hose 10m Spare-PVC- test gas hose 10 meters with fast
connector coupling 12.101206.0 26,00
Discharging unit
Discharging unit for Minican with flow meter and
5m PVC test gas hose with fast connector
coupling
12.100732.2 190,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 23/34
5. Supplements and Accessories
Device Description/ Version Part number Price/€
PK 1 Test gas cap GS7500N 12.100476.1 66,00
PK 4 Test gas cap Gasmonitor ZrO2 12.100316.2 55,00
PK 5 Test gas cap for Gasmonitor & Exmonitor 12.100475.1 16,00
PK 8 Test gas cap for GasMonitor HC 50 12.100790.1 34,00
PK 10 Test gas cap for ExDetector 12.100954.2 102,00
DSK 10 Flow through cap for ExDetector 12.100995 119,00
PK 11 Test gas cap for Gasmonitor IR-CO2-5 12.101140.1 89,00
PK 12 Test gas cap for detector Smart P1 12.101199.0 89,00
PK 13 Test gas cap for GasDetector IR-220 12.101204.0 71,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 24/34
5. Supplements and Accessories
Device Description/ Version Part number Price/€
DSK 13 Flow through cap for GasDetector IR-220 12.101220.0 185,00
PK 15 Test gas cap IRMax 12.101234.0 110,00
PK 16 Continous flow gas cap for ExDetector 12.100965 100,00
FBA2018 Remote calibration adapter 12.101191.1 220,00
Remote calibration
kit 20m
For Detectors ExDetector HC 100, HC 200 & IR
220, SC 220 consisting of:
+ data cable 20m
+ hose PVC 20m
+ continous flow gas cap ExDetector PK16
+ remote calibration adapter FBA2018
12.600814.1 369,00
Accessories for converting the test gas caps and hoses
Description/ Version Part number Price/€
Quick-release coupling NW 2.7, 6X4
for hose 12.077101.0 20,00
Nipple NW 2.7 with M5 thread
for test gas caps 12.077102.0 2,60
Nipple NW 2.7
for hose 12.076878 4,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 25/34
6. Housing and 19“ technology
6. Housing and 19“ technology
6.1 Rack and panel mounting housing
Type Description Part number Price/€
BGT 84 19 inch rack 84 pu, 160 mm 12.076843.1 67,00
SEG 30 Plastic housing – panel mounting, 30 pu 12.100431 331,00
SEG 49 Plastic housing – panel mounting, 49 pu 12.100430 400,00
SEG 54 Metal housing – panel mounting, 54 pu 12.100800 306,00
6.2 Wall mounting housing and stand alone socket
Type Description Part number Price/€
KSS 7 Compact panel cabinet- wall mounting for 1 SEG 12.076554 397,00
KSS 15 Compact panel cabinet- wall mounting for max. 2 SEG 12.076428 375,00
SN 80-10 Compact panel cabinet- wall mounting (W/H/D 800x1000x350) 12.076948.0 545,00
TS 8 Compact panel cabinet stand alone socket SEG or rack
W/H/D 1800x800x500 12.101130 1.950,00
WS 65 Compact panel cabinet for GMC 8364 (W/H/D 650x600x300) 12.076916 640,00
WS 100 Compact panel cabinet for GMC 8364 (W/H/D 1000x800x300) 12.076917 564,00
6.3 Distribution box for wall mounting controller units
Type Description Part number Price/€
KFV 1 Wall mounting housing for 1 GMC 8022 12.076575 132,00
KFV 2 Wall mounting housing for 2 GMC 8022 12.076547 204,00
KFV 3 Wall mounting housing for 3 GMC 8022 12.076548 277,00
KFV 1+1 Same as KFV 1 but additional space for relays, barriers or
emergancy power supply LGH2 with max. 2,2 Ah storage battery 12.076607.1 195,00
KFV 2+1 Same as KFV 2 j but additional space for relays, barriers or
emergancy power supply LGH2 with max. 2,2 Ah storage battery 12.076608.1 278,00
KFV 3+1 Same as KFV 3 but additional space for relays, barriers or
emergancy power supply LGH2 with max. 2,2 Ah storage battery 12.076609.1 356,00
AX 1050
Wall mounting housing for 1 GMC 8304 or 1 GMC 8420 + Emergency
power supply(500x500x210 ) or Multiscan ++PK 16 or Multiscan +
+PK 32
12.076440 181,00
AX 1057 Wall mounting housing for 2 GMC 8304 or 2 GMC 8420 + emergency
power supply(700x500x250) or Multiscan ++PK 64 12.076987 263,00
6.4 Accessories for wall mounting housing and stand alone sockets
Type Description Part number Price/€
Hood Acrylic glas hood for KSS 15 (max 1 rack84) 12.076610 236,00
Pouch Polystyrol pouch for wiring diagrams, RAL9002, for DIN A4
horizontal, with self-adhesive fastening rails, 256x228x17,5mm 12.076441 13,60
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 26/34
7. Sensors and spare parts
7. Sensors and spare parts
7.1 Spare sensors
Description and Type Used in detector Measuring
principle Part number Price/€
Sensor + PCB Exmess HC 3 and HC 3 K WT 12.100753 73,00
Sensor + PCB for C2H2 Exmess HC 3 and HC 3 K WT 12.100918 96,00
Sensor Gasmonitor HC 66 WT 12.100813.1 89,00
Sensor Gasmonitor HC 66 K WT 12.100814.1 104,00
Measuring head with
Sensor ExDetector HC 150 WT 12.101075.2 190,00
Measuring head with
Sensor ExDetector HC 100 M WT 12.100937.5 190,00
Measuring head with
Sensor ExDetector HC 200 WT 12.101024.3 190,00
Measuring head with
Sensor ExDetector HC 150 K WT 12.101079.2 190,00
Measuring head with
Sensor ExDetector HC 100 K WT 12.100920.3 190,00
Measuring head with
Sensor ExDetector IR HC M with IR 32 IR 12.100953.4 685,00
Measuring head
withSensor ExDetector IR CO2 with IR 31 IR 12.100963.4 845,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 27/34
7. Sensors and spare parts
Description and Type Used in detector Measuring
principle Part number Price/€
Measuring head with
Sensor GM Ecoline HC 50 WT 12.101026 60,00
Measuring head with
Sensor ExDetector SC 220 M HL 12.101051.2 142,00
Measuring head with
Sensor ExDetector SC 220 P HL 12.101044.2 142,00
Measuring head with
Sensor ExDetector SC 220 S HL 12.101208.0 160,00
Sensor for Vapours and
NH3 Gasmess 822 (K)
colour: orange
HL 12.045487 39,00
Sensor for Gases Gasmess 813 (K)
colour: grey
HL 12.045088 39,00
Sensor for Freons Gasmess 832 (K)
colour: black
HL 12.045606 67,00
Sensor+PCB Vapours and
NH3 Exmess 822 (K) HL 12.100782.1 63,00
Sensor+PCB for Gases Exmess 813 (K) HL 12.100774.1 63,00
example image
Sensor 0 - 1000 ppm CO Exmonitor + Gasmonitor CO-1000 EC 12.070444 373,00
Sensor 0 – 1000 ppm CO Exmonitor + Gasmonitor CO-1000
HK EC 12.070886 405,00
Sensor 0 - 50 ppm H2S Exmonitor + Gasmonitor H2S-50 EC 12.070445 445,00
Sensor 0 - 100 ppm H2S Exmonitor + Gasmonitor H2S-200 EC 12.070446 397,00
Sensor 0 - 20 ppm SO2 Exmonitor + Gasmonitor SO2-20 EC 12.070447 463,00
Sensor 0 - 100 ppm SO2 Exmonitor + Gasmonitor SO2-100 EC 12.070448 463,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 28/34
7. Sensors and spare parts
Description and Type Used in detector Measuring
principle Part number Price/€
example image
Sensor 0 - 100 ppm NO Exmonitor + Gasmonitor NO-100 EC 12.070449 445,00
Sensor 0 - 20 ppm NO2 Exmonitor + Gasmonitor NO2-20 EC 12.070450 375,00
Sensor 0 - 20 ppm Cl2 Exmonitor + Gasmonitor Cl2-20 EC 12.070451 375,00
Sensor 0 - 1000 ppm H2 Exmonitor + Gasmonitor H2-1000 EC 12.070452 487,00
Sensor 0 - 100 ppm HCN Exmonitor + Gasmonitor HCN-
100 EC 12.070453 559,00
Sensor 0 - 100 ppm HCL Exmonitor + Gasmonitor HCL-100 EC 12.070454 536,00
Sensor 0 - 50 ppm NH3 Exmonitor + Gasmonitor NH3-50 EC 12.070455 405,00
Sensor 0 - 200 ppm NH3 Exmonitor + Gasmonitor NH3-200 EC 12.070516.1 392,00
Sensor 0 - 1000 ppm NH3 Exmonitor + Gasmonitor NH3-
1000 EC 12.070517.1 392,00
Sensor 0 – 2 ppm O3 Exmonitor + Gasmonitor O3 EC 12.070482 559,00
Sensor 0 – 300 ppm CO Smart P1 CO EC 12.071255.0 161,00
Sensor 0 – 30 ppm NO2 Smart P1 NO2 EC 12.071256.0 204,00
Sensor 0 – 300 ppm CO GMO CO 500 (2E/F) EC 12.070253 166,00
Sensor 0 – 300 ppm CO GMO CO 324 EC 12.101048 153,00
Sensor 0 – 300 ppm CO GMO CO 300 (BUS) EC 12.100973.1 205,00
Sensor 0 – 20 ppm NO2 GMO NO2 300 (BUS) EC 12.100983 365,00
Sensor 0 – 25 Vol. % Exmonitor + Gasmonitor O2-25 EC 12.070756 148,00
Sensor 0 – 25 Vol. % Gasmonitor ZrO2-25 ZRO 12.070710 251,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 29/34
7. Sensors and spare parts
7.2 Spare parts for maintenance
Type Description Part number Price/€
Radial Fuse 0,1 A 100 mA slow blow (t) Æ 8,5 mm TR5 12.070969 1,00
Radial Fuse 0,5 A 500 mA slow blow (t) Æ 8,5 mm TR5 12.070475 1,00
Radial Fuse 1,0 A 1 A slow blow (t) Æ 8,5 mm TR5 12.070438 1,00
Microfuse 0,2 A 200 mA slow blow (t) 5 x 20 mm 12.071142 1,00
Microfuse 0,5 A 500 mA slow blow (t) 5 x 20 mm 12.070291 1,00
Microfuse 1,0 A 1 A slow blow (t) 5 x 20 mm 12.070165 1,00
Microfuse 2,0 A 2 A slow blow (t) 5 x 20 mm 12.071141 1,00
Fuse for storage batteries from 3,0 A up to 30,0 A
other fuses upon request
12.070098 -
12.070104 1,00
Separation plate
for GMC 8304 and GMC 8420
from polycarbonate
12.070753 5,80
Staggered jumper
for GMC 8304 and GMC 8420
isolated, from 1 to 4
12.071177 1,00
Jumper link
for GMC 8304 and GMC 8420
110 mm, 0,75mm²
12.071232.0 5,40
Sensor carrier For ExMonitor O2 12.101180 70,00
Measuring head protection For ExMonitor from brass 12.076519 19,00
Sensor transport unit for CO,H2S,SO2,NO2,Cl2,H2, HCN - NH3-100,
NH3-1000, O2-Sensors 12.100871 62,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 30/34
7. Sensors and spare parts
7.3 Test gas pressure cans
Type Concentration Size Part number Price/€
Ammonia NH3 100 ppm Reactive test gas ca. 12 l 12.313696 171,00
Ammonia NH3 1000 ppm Reactive test gas ca. 12 l 12.312228 171,00
Frigen R1234YF 1000 ppm Frigene/ Refrigerant ca. 12 l 12.339982 80,00
Frigen R134A 1000 ppm Frigene/ Refrigerant ca. 12 l 12.312122 80,00
Frigen R143A 1000 ppm Frigene/ Refrigerant ca. 12 l 12.333534 80,00
Frigen R404A 1000 ppm Frigene/ Refrigerant ca. 12 l 12.319275 80,00
Frigen R407C 1000 ppm Frigene/ Refrigerant ca. 12 l 12.339983 80,00
Frigen R410A 1000 ppm Frigene/ Refrigerant ca. 12 l 12.328756 80,00
Carbon dioxide CO2 2,00 vol% Non-reactive test gas ca. 12 l 12.315505 80,00
Carbon dioxide CO2 5,00 vol% Non-reactive test gas ca. 12 l 12.312098 80,00
Carbon monoxide CO 100 ppm Non-reactive test gas ca. 12 l 12.312110 80,00
Carbon monoxide CO 275 ppm Non-reactive test gas ca. 12 l 12.319160 80,00
Methane CH4 2,20 vol% / 50% LEL Non-reactive test gas ca. 12 l 12.312102 80,00
Butane C4H10 0,70 vol% / 50% LEL Non-reactive test gas ca. 12 l 12.318890 80,00
Heptane C7H16 0,45 vol% / 54% LEL Non-reactive test gas ca. 12 l 12.312176 80,00
Propane C3H8 0,85 vol% / 50% LEL Non-reactive test gas ca. 12 l 12.312103 80,00
Synthetic air O2 20,9 vol% Non-reactive test gas ca. 12 l 12.312095 80,00
Nitrogen N2 100 vol% Non-reactive test gas ca. 12 l 12.197133 80,00
Hydrogen H2 2,00 vol% / 50% LEL Non-reactive test gas ca. 12 l 12.312097 80,00
Other gases, other gas concentrations or can sizes are available on request.
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 31/34
8. Relays und relay cards
8. Relays und relay cards
Description and Type Application Part number Price/€
Time lag relay 24 - 230 V - 1 change-over contact 12.600371 68,00
Time lag relay flashing 24 - 230 V - 1 change-over contact 12.600372 66,00
Flashing relay 24 - 230 V - 1 change-over contact 12.600373 99,00
Relay terminal 24 V - 1 change-over contact 12.076850 22,00
Relay module 24 V, 1 change-over contact, relay socket and
suppression module 12.076845 22,00
Relay module 230 V, 1 change-over contact, relay socket and
suppression module 12.076847 22,00
Relay module 230 V, 2 change-over contacts, relay socket and
suppression module 12.076846 22,00
Relay module 24 V, 2 change-over contacts, relay socket and
suppression module 12.076844 22,00
Relay module 24 V, 4 change-over contacts, relay socket and
suppression module 12.076848 50,00
Relay module 230 V, 4 change-over contacts, relay socket and
suppression module 12.076849 30,00
Relay card RK 1
For common alarm wiring of GMC 8022 E
respectively GMC 8022 E/4-20 in combination with
one ExDetector HC-100 or HC-150 always 4 pieces
are required // observe certification !
12.100879 54,00
Standard signal
isolator For additional 4-20mA signal 24 V 12.076950.0 214,00
Standard signal
isolator For additional 4-20mA signal 230 V 12.076951.0 331,00
Frame connector
32 pole for GMC 8022E / for soldering 12.070294 14,00
Frame connector
32 pole
for GMC 8022E / for clamping
not possible in SEG 54 12.071099.1 115,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 32/34
9. Engineering services – net prices
9. Engineering services – net prices
9.1 Wiring costs for 19“ rack modules type GMC 8022 E
modules
GMC Module rack
Panel mounting SEG or
wall mounting plastic case
EPG
Sheet steel housing incl. Wiring of module
rack or SEG
1 module 270,00 € 302,00 € 456,00 €
2 modules 319,00 € 351,00 € 505,00 €
3 modules 368,00 € 404,00 € 554,00 €
4 modules 417,00 € 454,00 € 603,00 €
5 modules 467,00 € impossible 653,00 €
6 modules 516,00 € impossible 703,00 €
7 modules 565,00 € impossible 751,00 €
For the wiring costs above, always wiring costs for one power supply are included.
9.2 Wiring costs for wall mounting housing KFV
Housing type
Device type
KFV 1 KFV 2 KFV 3 KFV 1 + 1 KFV 2 + 1 KFV 3 + 1
1 x GMC 8022 80,00 € ---- ---- 136,00 € ---- ----
2 x GMC 8022 ---- 123,00 € ---- ---- 179,00 € ----
3 x GMC 8022 ---- ---- 155,00 € ---- ---- 211,00 €
1 x GMC 8022+ Barrier ---- ---- ---- 168,00 € ---- ----
2 x GMC 8022+ Barrier ---- ---- ---- ---- 211,00 € ----
3 x GMC 8022+ Barrier ---- ---- ---- ---- ---- 243,00 €
Wiring of device above + wiring of one emergency power supply
Additional
cost
70,00 €
Additional
cost
70,00 €
Additional
cost
70,00 €
9.3 Wiring costs for gas measuring computer type GMC 8364
standard
version
Number of
detectors
Number of
groups
Emergency power
supply
Required
housing type Wiring costs
1 Up to 16 1 no WA 65 690,00 €
2 Up to 16 1 yes WA 65 733,00 €
3 Up to 32 1 no WA 90 776,00 €
4 Up to 32 1 yes WA 90 819,00 €
5 Up to 48 1 no WA 100 861,00 €
6 Up to 48 1 yes WA 100 904,00 €
7 Up to 64 1 no WA 100 947,00 €
8 Up to 64 1 yes WA 100 990,00 €
Wiring of every additional group 118,00 €
9.4 Wiring costs for gas measuring computer type GMC 8304 or 8420 (40.100000)
Wiring costs Part number Price/€
For 2x GMC 8420 o. GMC 8304 in housing AX 1050 resp. AX 1057 40.100000 540,00
www.bieler-lang.de Price List 2022 | valid from 01.10.2022 | V2.0 | 33/34
10. Change log
10. Change log
Date Page Part number Reason for change
13.01.2022 all all Price adjustment
24.01.2022 32 12.071099 New frame connector 32 pole for clamping
24.01.2022 4 12.600609.2 GMC 8022 - 110 V discontinued
24.01.2022 23 12.600355.3 Part number change
14.09.2022 10 12.600697.3 Part number change
14.09.2022 13 12.600800.1 Part number change
14.09.2022 13 12.600801.1 Part number change
14.09.2022 all all Price adjustment
14.09.2022 7 12.600815.0 Extension by IRMax with display
14.09.2022 13 12.101159.0 Extension by input card
www.bieler-lang.de
ระบบสมาชิก
DHL Express
FedEx Express
TNT Express
UPS Tracking
USPS Tracking
KERRY Express
EMS & Thailandpost Tracking
▲
▼
รายการสั่งซื้อของฉัน
รายการสั่งซื้อของฉัน
ข้อมูลร้านค้านี้
บริษัท ทีเอพี พาร์ท เอ็นจิเนียริ่ง จำกัด
บ.ทีเอพี พาร์ทฯ ก่อตั้งขึ้นเมื่อปี 2551 โดยกลุ่มวิศกรที่มีประสบการณ์ เราจำหน่าย-เป็นผู้นำเข้าสินค้าเองโดยตรงจากต่างประเทศ อาทิ เครื่องจักร อะไหล่วิศวกรรม อุปกรณ์ไฟฟ้าคอนโทรล เครื่องมือวัด และอุปกรณ์ต่างๆที่ใช้ในทุกกลุ่มอุตสาหกรรม ต่อมาด้วยประสบการณ์ต่างๆ เราสามารถขยายธุรกิจโดยการเป็นตัวแทนจำหน่าย รวมถึงบริการติดตั้งโครงการระบบควบคุมและสั่งการอุปกรณ์ไฟฟ้า
เบอร์โทร : 091-484-4332
อีเมล : info@tap-part.com
อีเมล : info@tap-part.com
ส่งข้อความติดต่อร้าน
เกี่ยวกับร้านค้านี้
ค้นหาสินค้าในร้านนี้
ค้นหาสินค้า
สินค้าที่ดูล่าสุด
บันทึกเป็นร้านโปรด
Join เป็นสมาชิกร้าน
แชร์หน้านี้
แชร์หน้านี้
↑
TOP เลื่อนขึ้นบนสุด
TOP เลื่อนขึ้นบนสุด
สินค้าในตะกร้า ({{total_num}} รายการ)
ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า
ราคาสินค้าทั้งหมด
฿ {{price_format(total_price)}}
- ฿ {{price_format(discount.price)}}
ราคาสินค้าทั้งหมด
{{total_quantity}} ชิ้น
฿ {{price_format(after_product_price)}}
ราคาไม่รวมค่าจัดส่ง
รวมภาษีมูลค่าเพิ่มแล้ว
➜ เลือกซื้อสินค้าเพิ่ม
